Born for an exceptional user experience, it delivers outstanding heat dissipation and current handling performance.
Built as solid as a rock and guarded like Zeus's shield, it's ready to conquer any terrain.
Combined with precise throttle control, it offers power and stability for every ride.
Every journey is safeguarded for you.

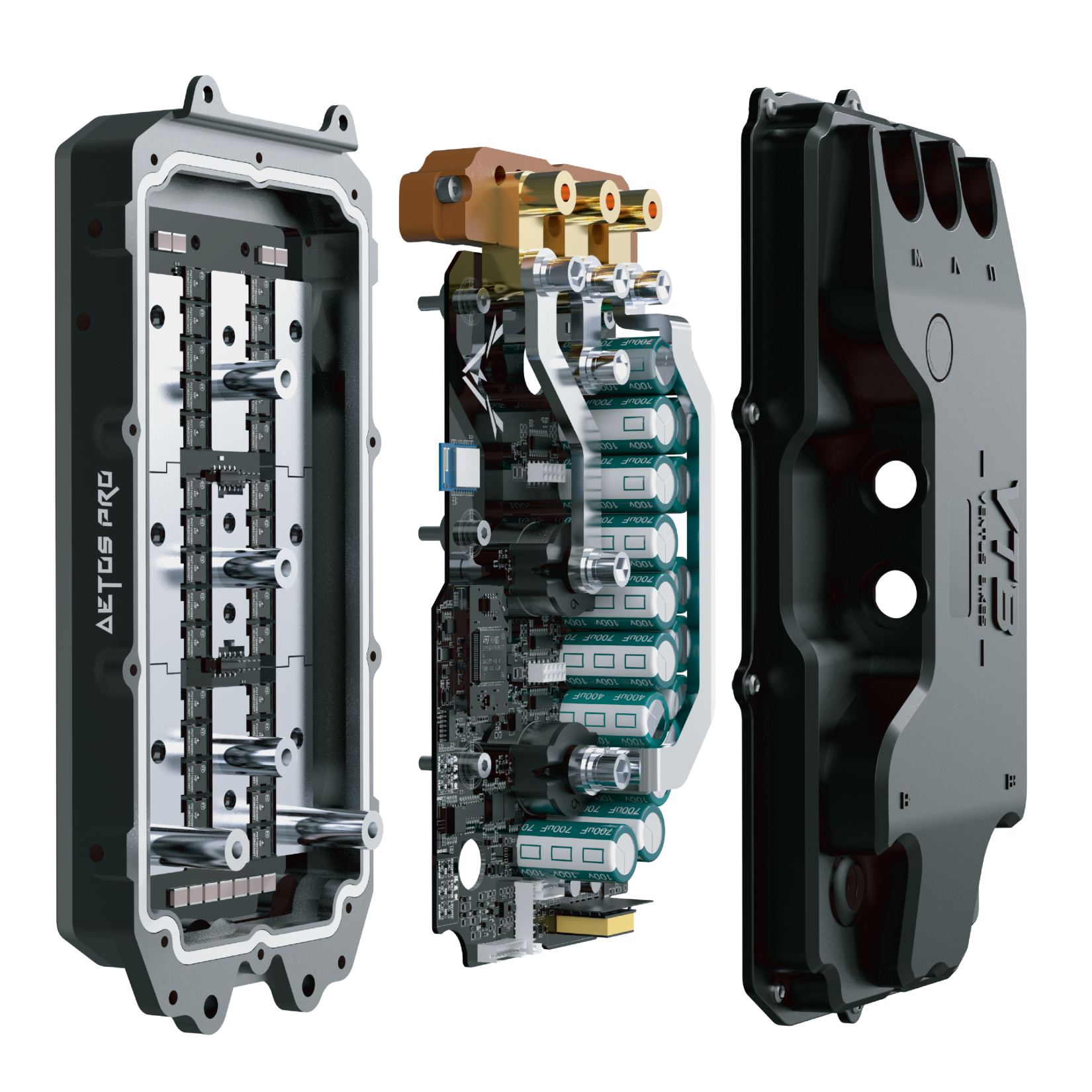

AETOS CONTROLLER
SPECIFICATION
|
Product Model |
AETOS PRO |
AETOS MAX |
AETOS ULTRA |
|
Rated Voltage |
72V |
96V |
118V |
|
Absolute Voltage |
-1.2V~100V |
-1.2V~120V |
-1.2V~160V |
|
Operating Voltage |
36V~93V |
36V~110V |
36V~135V |
|
Phase Current |
1200A (Tested to 1600A) |
960A (Tested to 1300A) |
760A (Tested to 1000A) |
|
Max. Efficiency |
98.80% |
98.90% |
99.10% |
|
Battery Series & Current |
12s~22s Discharge current: 50A~1000A |
12s~26s Discharge current: 50A~800A |
12s~32s Discharge current: 50A~650A |
|
Compatible Bikes |

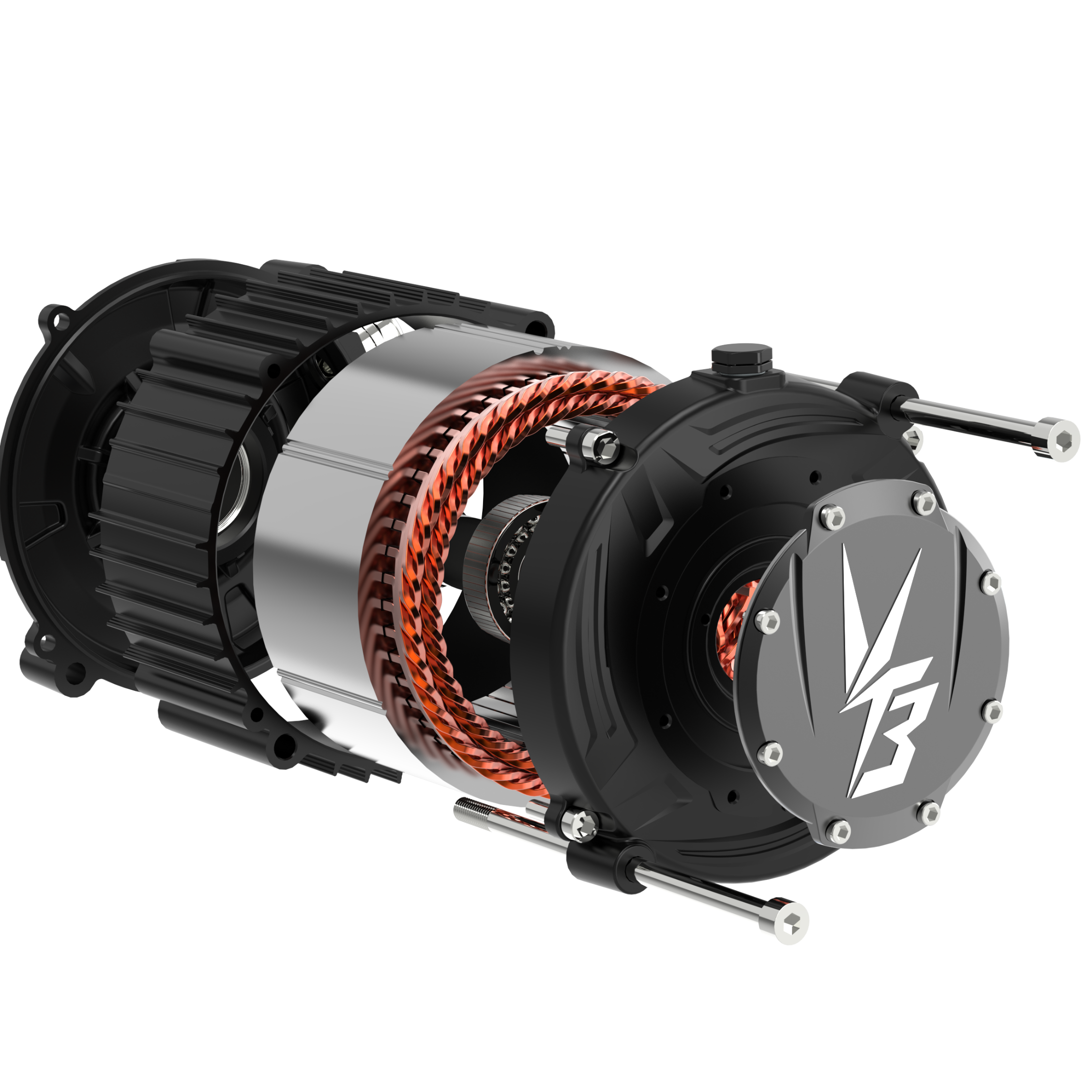

34 different types of motors (99% of the motors on the market) |
||
|
Compatible Motors |
13 different types of bikes (including Light Bee, Ultra Bee, Talaria X3, 79 Bike Falcon, Rerode R1, E-ride Pro SS 2.0/3.0, and etc.) |
||
|
MOSFET |
30x high-performance MOSFETS |
||
|
Peak Power |
76kW |
||
|
Waterproof Rating |
1P67+ |
||
|
Operating Temperature |
-30°C~80°C |
||
|
Driving Mode |
5 modes |
||
|
Control Protocal |
FOC (torque target / speed target) |
||
|
Throttle Refresh Rate |
|
1000Sa/s |
|
|
Throttle Resolution |
0.0034V |
||
|
Warranty |
2 years |
||

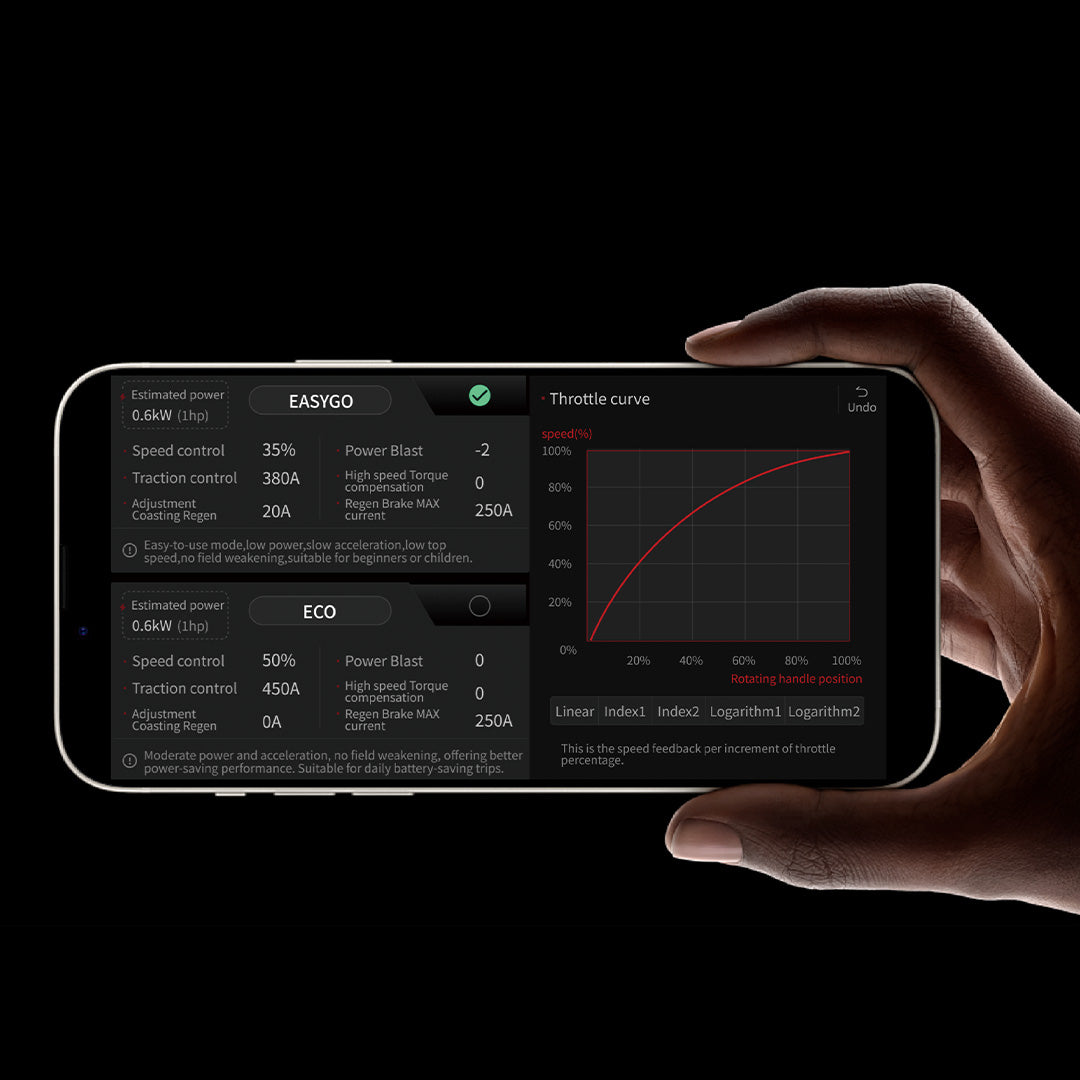

APP:
IOS & Android
