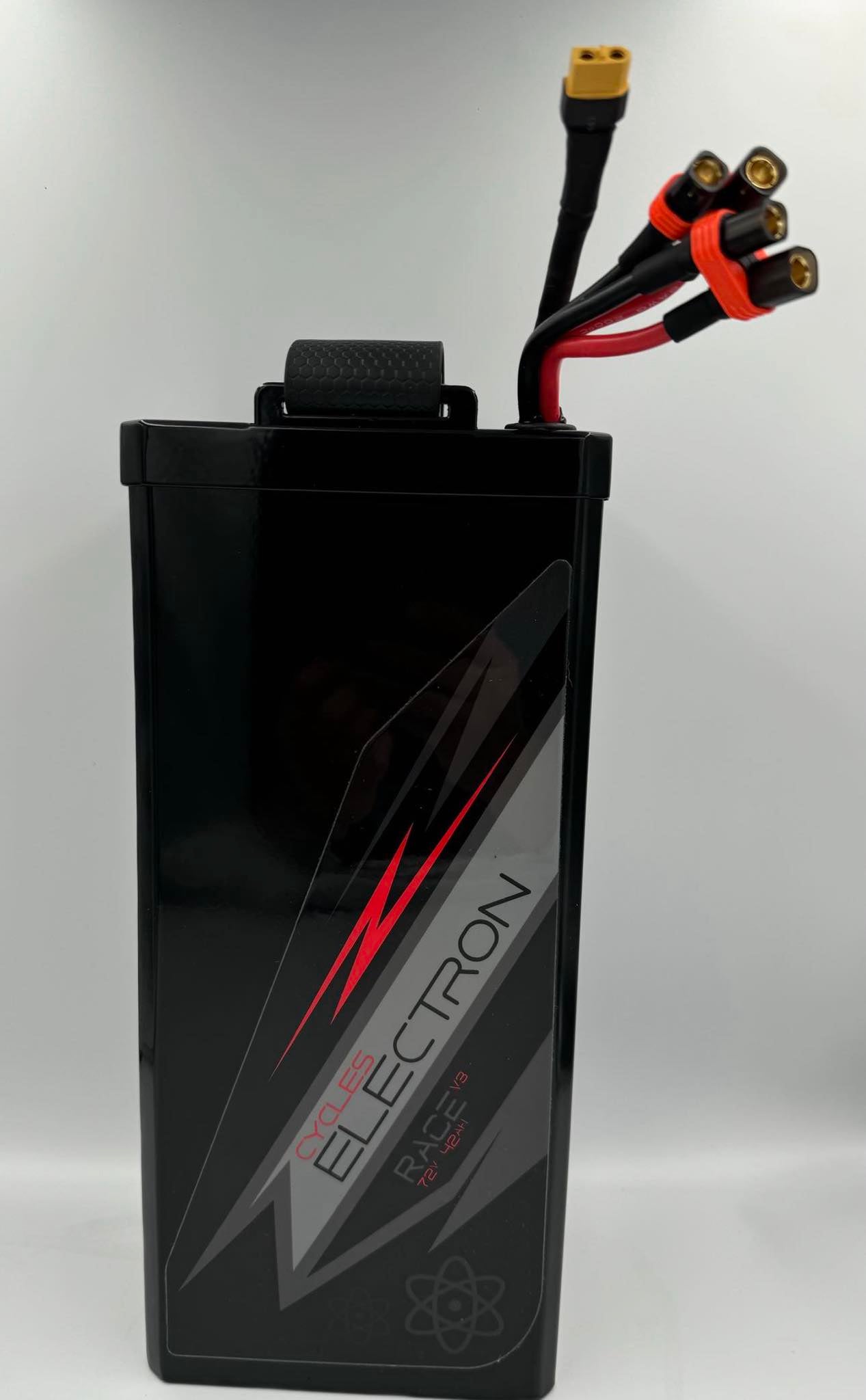

Talaria Battery 72v 3024Wh 42Ah Race V3 Molicel P42A 25Kw

Talaria Battery 72v 3024Wh 42Ah Race V3 Molicel P42A 25Kw

£1,949.00 GBP
£1,949.00 GBP
Sale Sold out
Tax included.
  • 30 DAYS PARTS WARRANTY
  • DELIVERED BUILT & PDI'D
  • ⌛ LOW STOCK, SELLING FAST

May SALE! UPTO 15% OFF AT CHECKOUT
does not apply to bikes

Charger Not Included | This Battery will not work with an original standard Talaria Controller

Only few items left

COMPATIBLE WITH:

TALARIA STING

    View full details

    Description

    Talaria Battery 72v 3024Wh 42Ah Race V3 Molicel P42A 25Kw

    High Power Battery

    Fast, Light, Powerful

    20S10P 72v 3024Wh Molicel P42A

    ASI, EBMX, VTB, Torp, KO & Nucular Controllers Compatible

    UK Warranty

    Power: Very High (25KW)
    Range: High (3024Kwh 201% Over OEM)
    Height: Medium (353mm)

    Battery Activation Required On Delivery

    On delivery, please send us a request to have your battery activated.
    This will also be regeared as confirmation that your battery has been received.

    This is Talaria Battery 72v 42Ah 25Kw Race V3 25Kw

    We call this the “RaceV3” as it is light and powerful and now with even more upgrades: upgraded internal configuration, upgraded high power BMS, new handle, new graphics and full marine grade stainless steel 316 exoskeleton / casing.

    Power

    This is a Sur Ron Battery 72v 42Ah Race V3 25Kw capable of peak 25kW power (360a peak discharge for 51 seconds until cut off on mosfet temp protection).

    15kW continuous at 200A discharge run for 4 minutes and 16 second continuous load until cut off on mosfet temp protection.

    Going up and down the throttle (off road riding) will allow bursts of up to 25Kw (400A) although 21Kw is the maximum recommended.

    We upgraded this very popular battery to handle more power. More Nickle sheet (lower resistance and heat). Bigger more powerful hybrid BMS giving 80 Amps more,. A new stronger lifting stapes. New stunning graphics.

    Designed to run the: ASI BAC4000, ASI BAC8000, EBMX X-9000, KO Controller, Nuclar Controller (and any 72v capable controller) up to DC line 180A and 400 Amps Peak 20KW (peak) Phase (depending on riding style: 540-600PhA).

    Please make sure your controller is set to a power rating that will not damage your motor. The battery is the “fuel tank” and it is the controller that controls how much “fuel” (Power) it takes and gives to the motor.

    These power packs are designed for ultimate power supply and are 57.5% bigger watts hours (3024Kwh) compared to the standard battery (1920Kwh) and able to give out 3 times the power (discharge -amps).

    Exoskeleton / Casing

    We have upgraded the casing to marine grade 316 stainless steel, so absolutely no rust issues here! Super tough and powder coated inside and out.

    Connectors

    The main battery to controller connectors we use are the same type as used by Talaria to keep everything compatible. This allows you to swap your standard battery back should you wish.

    Battery Compartment Lids or Lifting Kits

    Because of the slightly extra battery height (353mm) minor modification will needed to your bike.

    There are several options:

    #1 Fit an aftermarket battery compartment lid found here: https://electroncycles.com/product/talaria-battery-compartment-injection-moulded-battery-lid-to-fit-taller-batteries-not-3d-printed/

    #2 Remove the battery plastic base tray in the bike (simply remove the 5 small allen key bolts from the top looking down) and fit our 5mm spacer between the metal battery lid catch and the lid (spacers provided)

    #3 Seat Lift Kit option: https://www.electroncycles.co.uk/product/talaria-mx-seat-lift-kit-black-full-e-charged/

    Specifications for Talaria Battery

    Weight 16.6Kg
    20s1op Molicel p42A 21700.
    For KO controllers do not set above 180A.
    Bluetooth Hybrid ANT BMS set at 400 Amps Peak full battery protection including over discharge (shorts) over heating etc.
    Each cell with additional individual wrapping for added protection.
    Additional layers of fibre board, Kapton tape, heat shrink.
    Stainless steel 316 grade sealed casing/exoskeleton with internal/external powder coated  to give maximum protection and insulation.
    Double sandwich configuration using 0.2mm pure welded Nickle sheet
    Bluetooth BMS giving individual series condition with balanced charging and on/off function via a mobile device (we recommend always leaving on – never use SHUTDOWN)
    An integrated cord handle for lowering the battery in and out
    Charging port via an XT60 connector

    Connecting to Bike

    When connecting the battery to the bike and to avoid a spark, turn the red trip switch on the bike to off. Connect the older original power cable and then turn the red trip to on. Then connect the new power leads. Removing the battery has no special order.

    Battery Charging

    First time charging is VERY important. Always connect the charger to the battery with the charger powered up at the mains first. This will stop a “Connection Spark”. The battery needs a “Balance Charge” on first charge. Please charge for 12 hours first time.  Always charge your battery in a safe place and never unsupervised.

    Charger NOT Included

    Our recommended charger for this battery is: https://electroncycles.com/product-category/batteries-chargers/72v-20s/page/3/

    This Battery will not work with an original standard Talaria Controller

    Bike Not Included

    Shipping

    Orders placed before 11am are dispatched the same day. If your order is for an assembled bike it may take longer due to a build slot needing to be allocated. Delivery options available from 24 hours to 5 days.

    Delivery days are Monday to Friday
