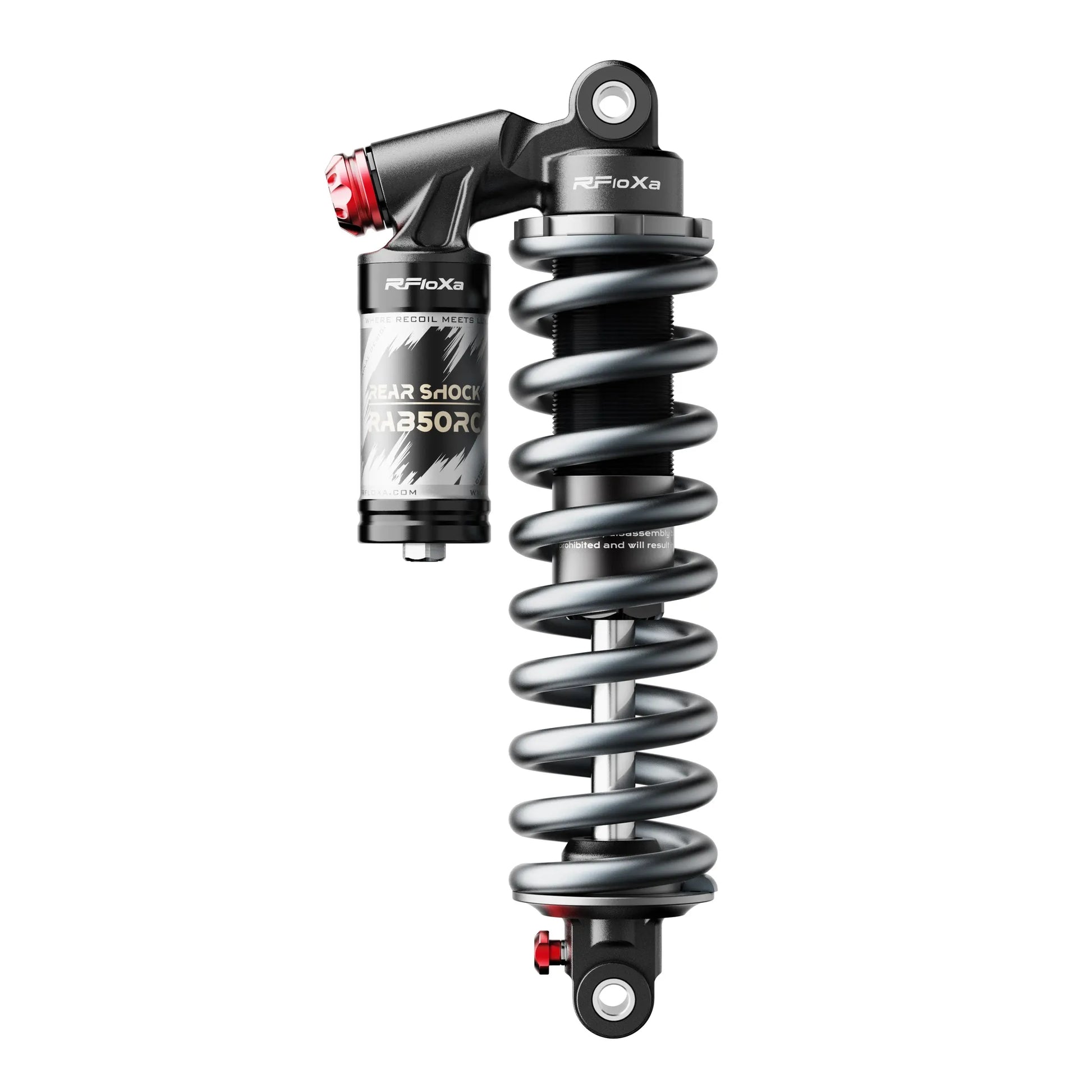

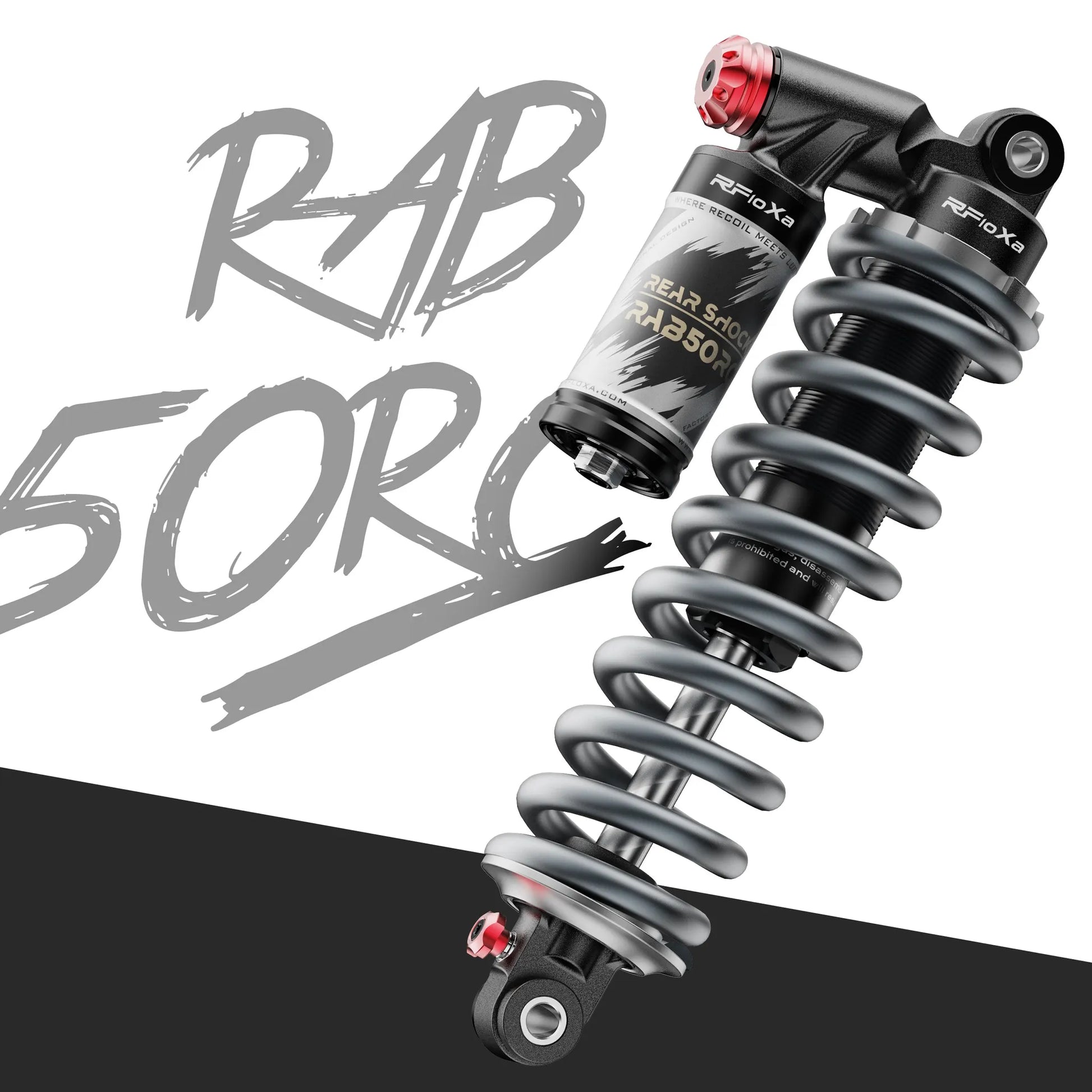

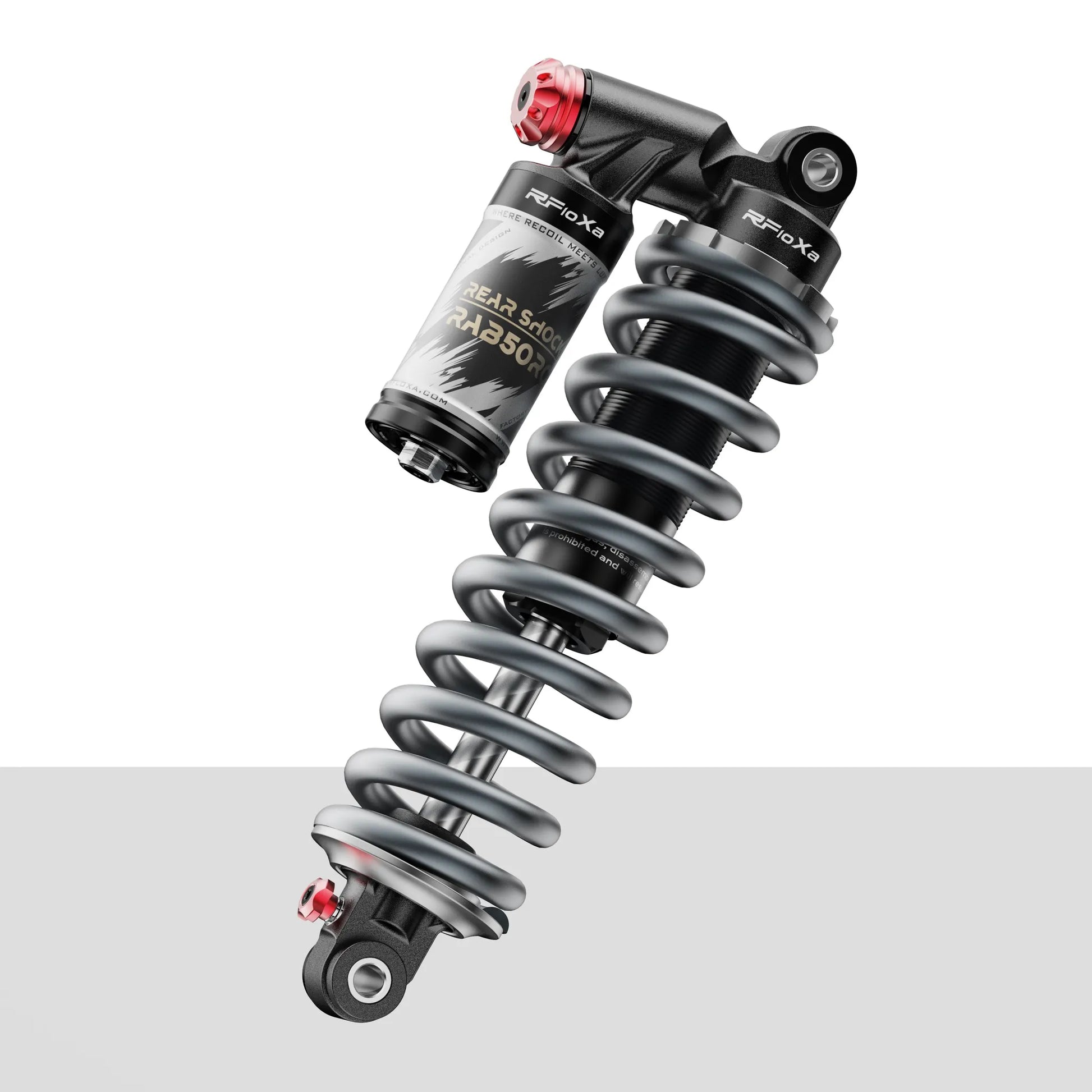

RFLOXA SUSPENSION - RAB50RC REAR SHOCK ABSORBER

① Advanced Technology💥 - The RAB50RC rear shock absorber features an oil-gas separation damping structure with an external nitrogen reservoir, providing exceptional shock absorption. Enjoy the smoothest rides, even on the roughest terrains.

② Versatile Use💥 - This high-performance rear shock absorber is perfect for tackling various challenging road conditions and is ideal for E-BIKES, bicycles, and off-road electric bikes. Multiple specifications are available, and if your bike’s requirements are not listed, feel free to contact us for customization.

③ Unmatched Durability💥 - Constructed from aerospace-grade AL6061-T6 aluminum alloy, the RAB50RC is designed to resist oxidation and enhance strength. It’s robust enough to handle all the demanding maneuvers you aspire to perform.

④ Comprehensive Adjustability💥 - The rear suspension is equipped with rebound and compression damping adjustment knobs, allowing you to fine-tune your ride based on personal preferences. The spring hardness is adjustable via the toothed disk at the top of the spring—turn it down for a firmer feel or up for a softer response. Inflate the cylinder gas through the bottom valve for additional customization.

⑤ Reliable Warranty💥 - We offer a one-year warranty service. Should any quality issues arise, please contact us for a replacement. We have full confidence in the RAB50RC’s performance, making it a highly cost-effective rear suspension option. Ensure to measure your bike’s rear suspension requirements accurately and select the appropriate size.

Weight:

• 450lbs spring - 80-100kg
• 550lbs spring - 100kg-130kg
• 600lbs spring - 130kg-180kg

Adjustments: Rebound / Compression

Available Sizes (Eye to Eye x Travel):

• 190 × 51 mm (7.48 × 2.01 inches)
• 200 × 56 mm (7.87 × 2.20 inches)
• 210 × 61 mm (8.27 × 2.40 inches)
• 220 × 66 mm (8.66 × 2.60 inches)
• 240 × 76 mm (9.45 × 2.99 inches)
• 265 × 83 mm (10.43 × 3.27 inches)

Features:

• External Nitrogen Reservoir
• Oil-Gas Separation Damping Structure
• Multi-stage Rebound Damping Adjustment
• Multi-stage Compression Damping Adjustment
• AL6061-T6 Forged Upper Mount
• AL6061-T6 Aluminum Alloy Main Tube
• 42CRMO Main Shaft
• 55CRSI Spring Wire
• C-ring Retainer Spring Base for Stability During Riding
• Easy-to-remove Spring Design
• Fine and Smooth Rebound and Compression Damping Adjustment, with noticeable feedback at each stage
• Rubber Bladder in the Air Chamber for Reduced Heat Fading of Damping and Enhanced Shock Absorption for Small Bumps

FAQ

Q: Is this suspension suitable for my Talaria or Surron, and which size fits best?

A: For Surron and Talaria riders, the optimal fit is 265mm (10.5") with 83mm travel.
