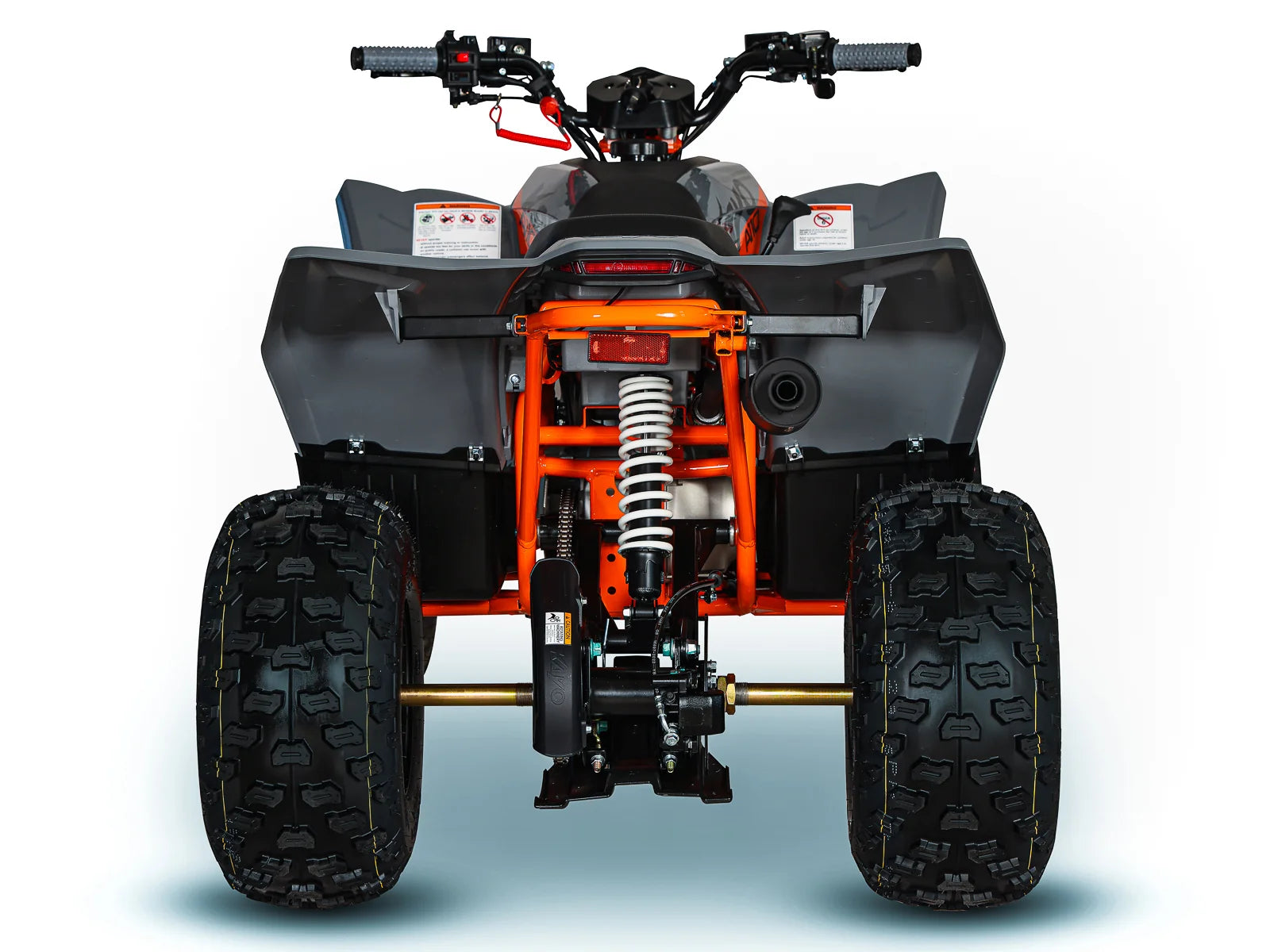

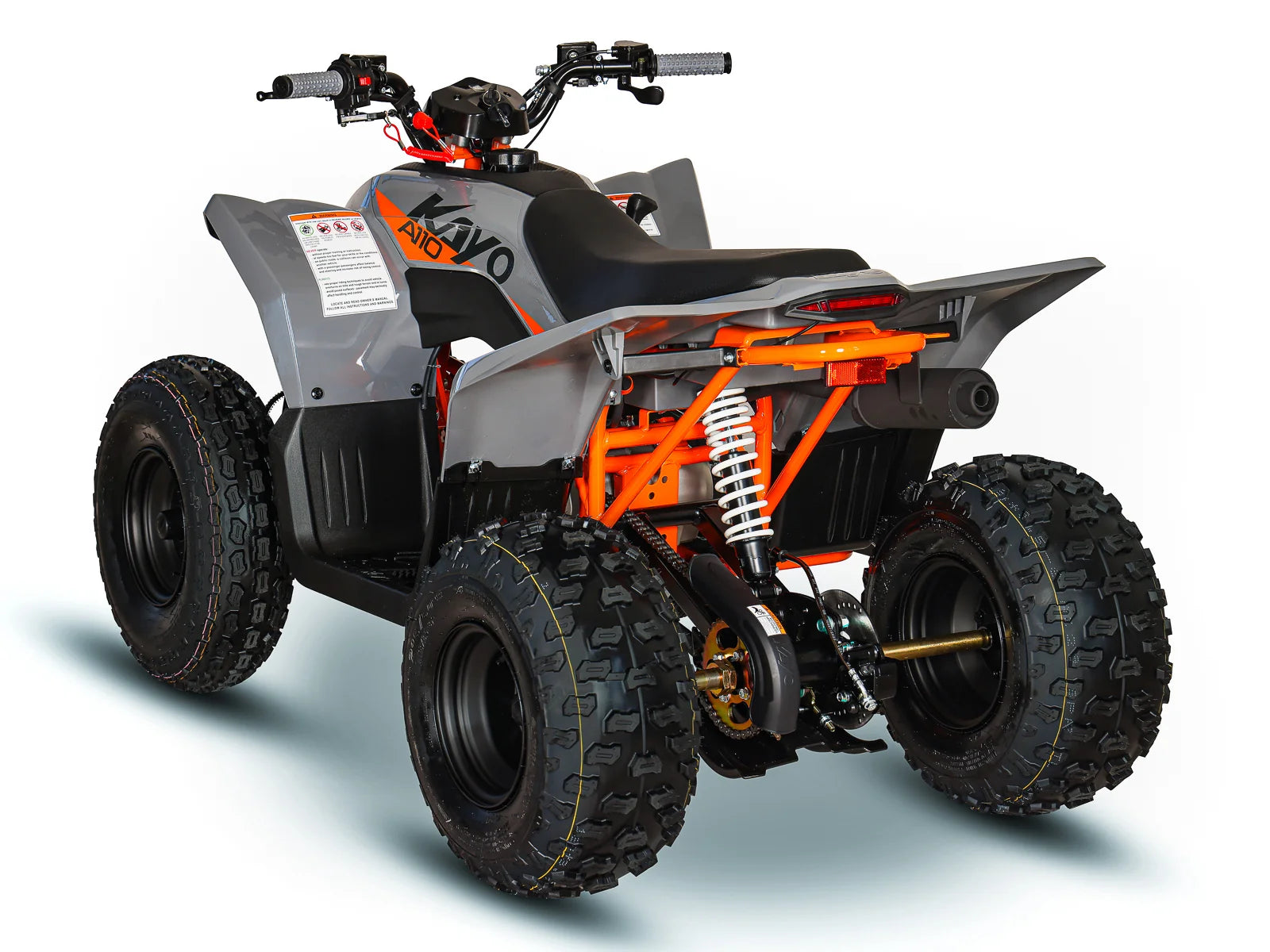

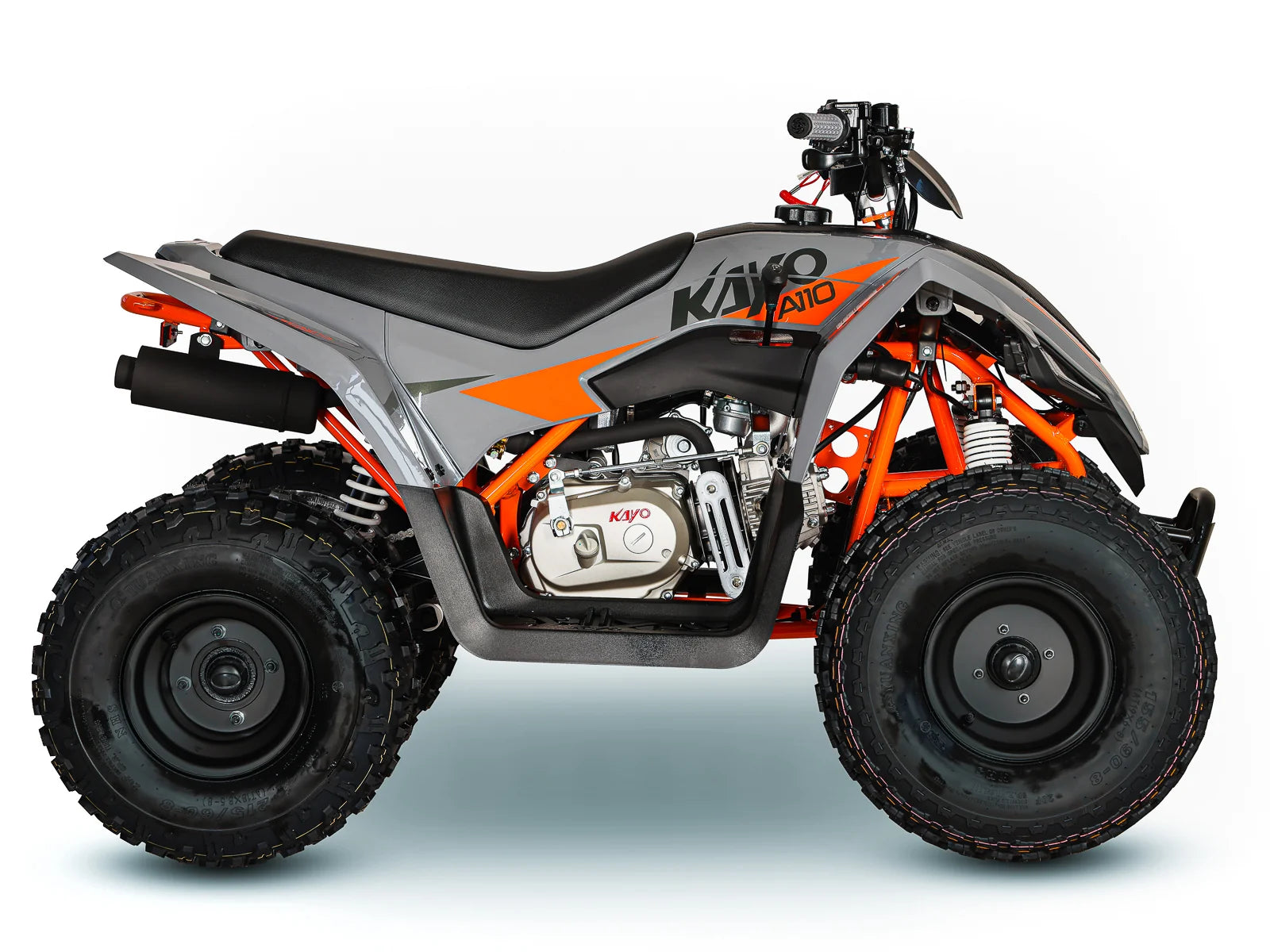

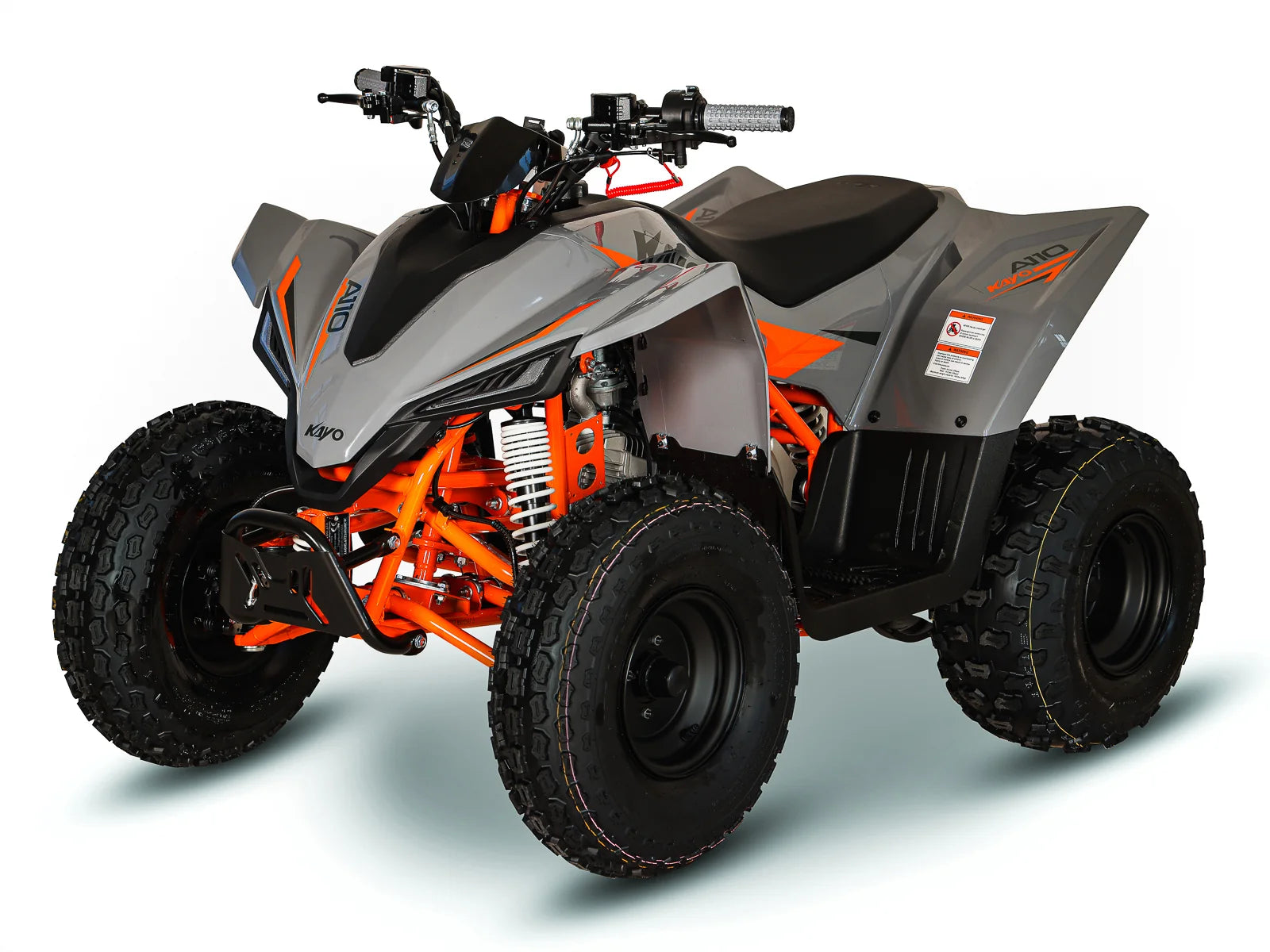

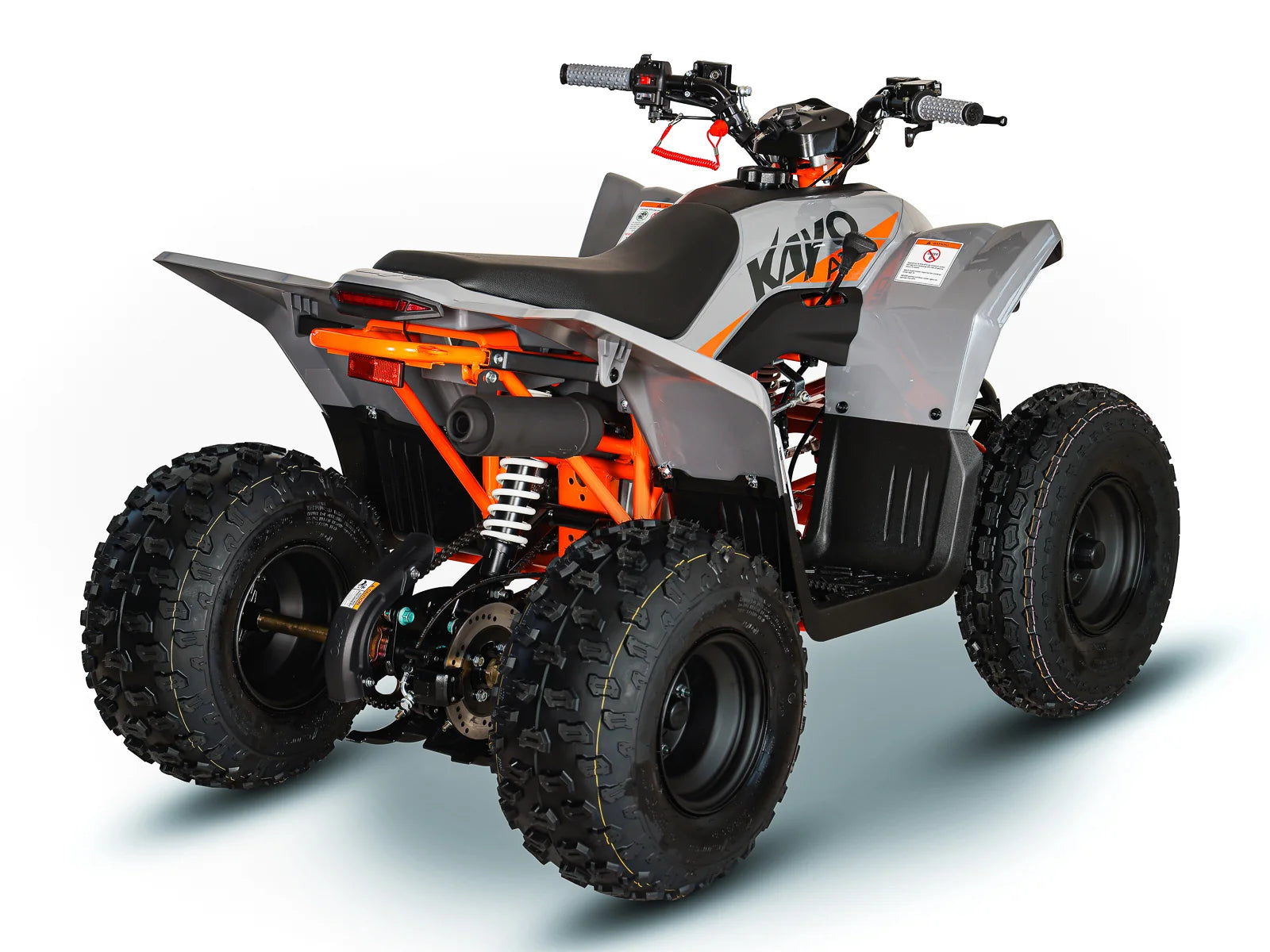

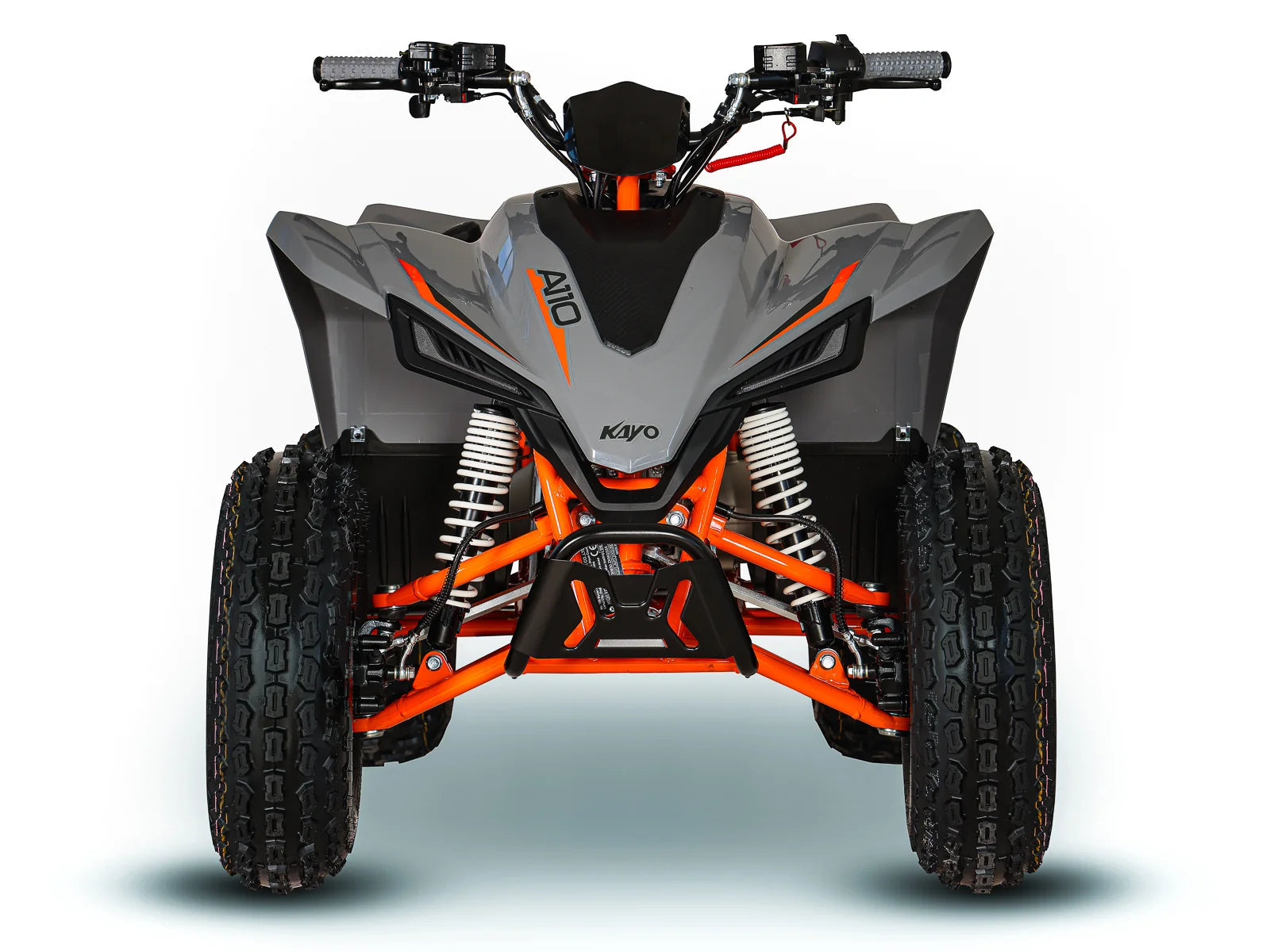

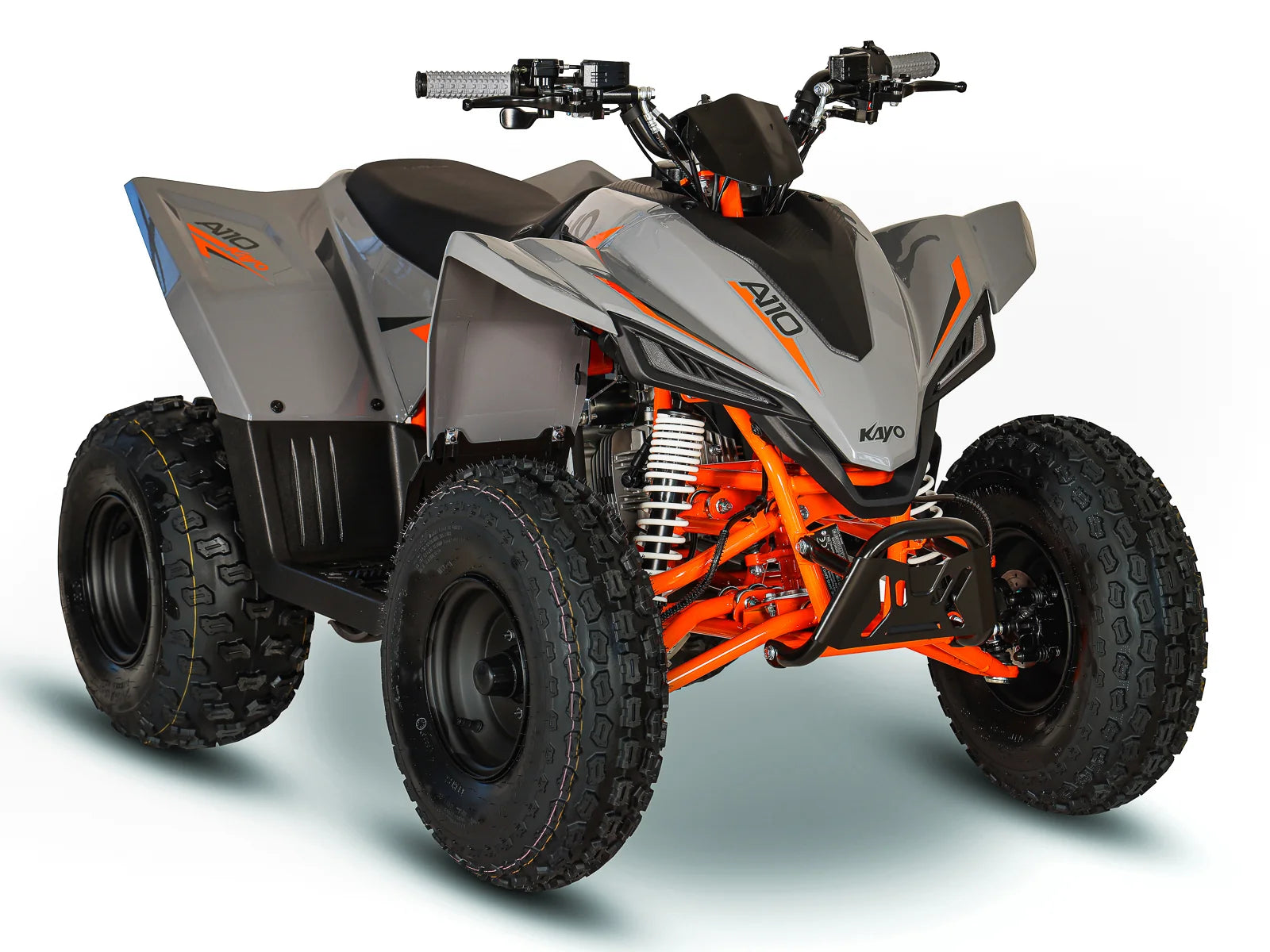

KAYO AT110 ATV
KAYO AT110 ATV
Part Number:
- 6 MONTHS WARRANTY INCLUDED
- OPTIONAL BUILD SERVICE AVAILABLE
- ⌛ FLEXIBLE FINANCE OPTIONS AVAILABLE
AUTO
35+ MPH
110 KG
Description
Description
The KAYO A110 ATV is a powerful and capable 110cc quad bike, designed for younger riders looking to take their off-road riding to the next level. Powered by a reliable 106.7cc 4-stroke, air-cooled engine, the A110 delivers 5.8 kW of power and 7.8 Nm of torque.
With a fully automatic R-N-F transmission, electric start and 2WD chain drive, the A110 is simple to operate while offering excellent control across a variety of off-road terrain. Adjustable front and rear suspension and hydraulic disc brakes add to its practical and capable specification.
Key Features
- 106.7cc 4-Stroke Engine – Reliable air-cooled engine producing 5.8 kW of power
- Fully Automatic R-N-F Transmission – Simple operation with Forward, Neutral and Reverse
- Electric Start – Quick and convenient starting
- Adjustable Front & Rear Suspension – Tunable suspension for improved comfort and control
- Hydraulic Disc Brakes – Hydraulic braking on both front and rear
- 2WD Chain Drive – Reliable and straightforward power delivery
- 4.5 Litre Fuel Tank – Suitable for longer riding sessions
- 110 mm Ground Clearance – Helps the quad handle uneven off-road terrain
Specifications
Engine
- Engine Type: 4-Stroke, Air Cooled
- Valve Configuration: SOHC, 2 Valve
- Displacement: 106.7cc
- Bore x Stroke: 52.4 x 49.5 mm
- Compression Ratio: 9.0:1
- Max Power: 5.8 kW @ 7,500 rpm
- Max Torque: 7.8 Nm @ 5,500 rpm
- Ignition: CDI
- Starting System: Electric
- Clutch: Fully Automatic with R-N-F
Transmission & Drive
- Transmission: Automatic
- Gears: Reverse, Neutral & Forward
- Final Drive: 2WD, Chain
Suspension & Brakes
- Front Suspension: 310 mm, Adjustable
- Rear Suspension: 300 mm, Adjustable
- Front Brake: Hydraulic Disc Brake
- Rear Brake: Hydraulic Disc Brake
- Parking Brake: Front
Wheels & Tyres
- Front Tyre: 16×8-7
- Rear Tyre: 16×8-7
Dimensions & Weight
- Vehicle Dimensions: 1430 x 890 x 980 mm
- Ground Clearance: 110 mm
- Seat Height: 670 mm
- Dry Weight: 110 kg
Fuel
- Fuel Capacity: 4.5 Litres
Warranty
12 Months Parts Only Warranty
Shipping
Shipping
This is an item we stock in Stores and warehouses and will be available to collect the same day. If delivery is selected the cut off for same day dispatch is 11AM. Delivery options are available from 24 hours to 5 days. Please note some larger Kayo quads will be stored off site in an external warehouse.
Unparalleled Versatility
-
Unmatched Performance
Kayo quad bikes are engineered for performance excellence, boasting powerful engines and advanced suspension systems. Whether tackling rugged terrain or racing through trails, Kayo's commitment to performance ensures an exhilarating riding experience. With precise handling and responsive acceleration, these bikes offer riders the confidence to push their limits and conquer any challenge that comes their way.
-
SOLID AND STYLISH
Built to withstand the toughest conditions, Kayo quad bikes are renowned for their exceptional durability. Constructed with high-quality materials and rigorous testing, these bikes are designed to endure the demands of off-road riding. From reinforced frames to robust components, every aspect of a Kayo quad bike is engineered for long-lasting resilience, providing riders with peace of mind knowing their machine can handle whatever adventures they embark on.
-
Innovative Technology
Kayo quad bikes integrate innovative technology to enhance performance and convenience. From advanced fuel injection systems to electronic power steering, these bikes are equipped with cutting-edge features that optimize control and efficiency. Whether navigating tight corners or traversing steep inclines, riders can rely on the technological advancements of Kayo quad bikes to enhance their riding experience and elevate their enjoyment on every journey.
Technical SPECIFICATIONS
ENGINE
4 stroke - YX110cc
TRANSMISSION
Automatic / reverse
START
Electric
FRONT TYRES
16x8-7
REAR TYRES
16x8-7
BRAKES
Twin front & single rear
PARK BRAKE
Front
FRONT SUSPENSION
Independent Twin Wishbone with adjustable camber
LANYARD
Fitted
LIGHTS
Headlight & taillight
WHEEL BASE
900 mm
FUEL CAPACITY
2.1 litres
DRY WEIGHT
94.5 kg
SEAT HEIGHT
615 mm
DECALS
Poly-propolene with 3M decals
