Description
Description

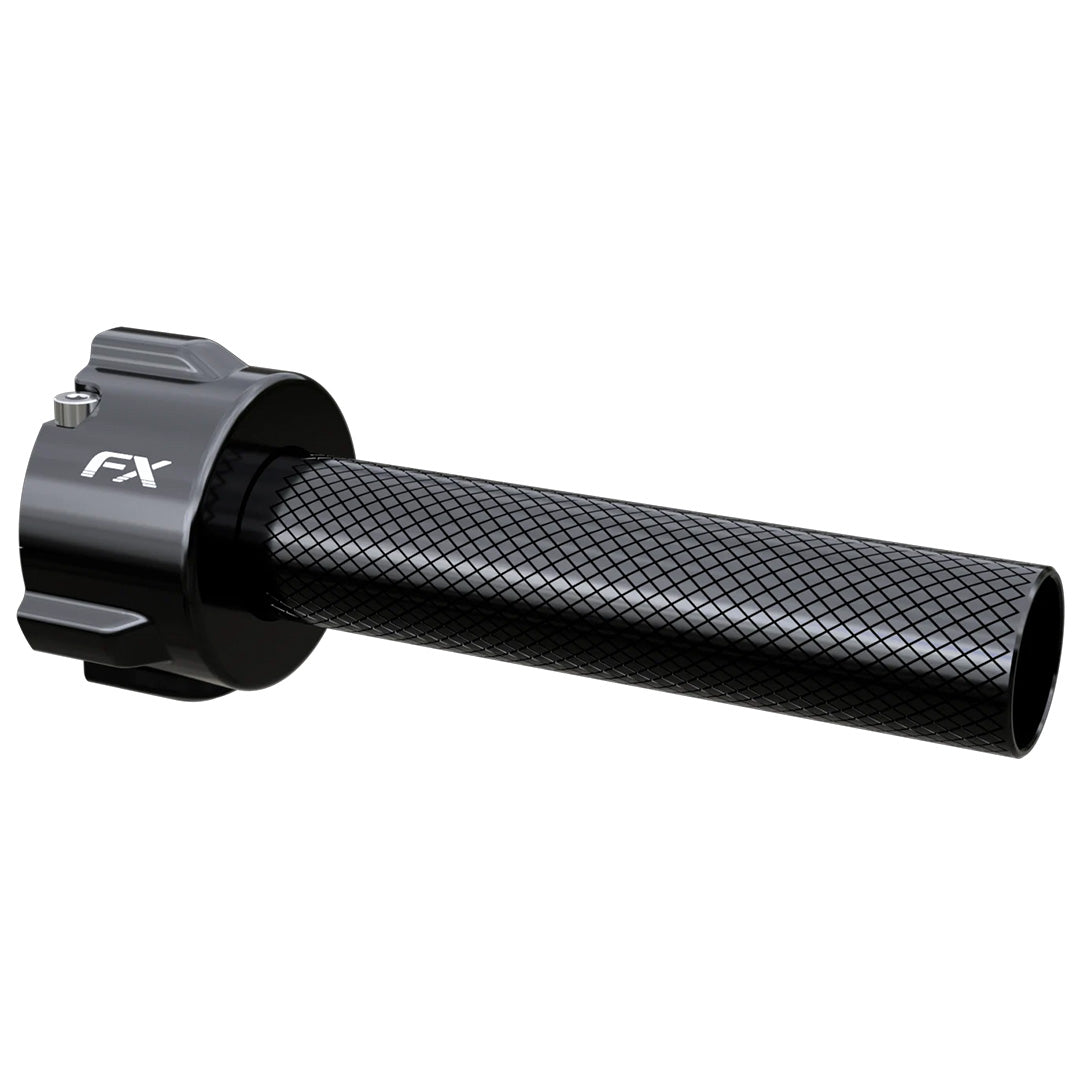

Stop fighting jerky, unpredictable acceleration. The FX Throttle gives you smooth, precise control with every twist of your wrist, built from solid machined aluminum to outlast the ride. Once you feel the difference, you won't want to ride without it.
Specifications
Material: 6061-T6 Billet Aluminium
Machining: CNC Milled
Sensor: Honeywell Hall Effect
Output Voltage: 0.87V–4.2V
Rotation Arc: 65°
Bar Diameter: 22.2mm (7/8")
Wire Lead: 120cm (Customisable)
Connector: Sur-Ron Style
Fasteners: Grade 5 Titanium
Bearing: 440C Stainless Steel
Weather Rating: IP65
Spring Tension: 3 Adjustable Settings
What's Included
FX Classic Twist Throttle (Chosen Colour), Pre-Wired Sur-Ron Connector, 5 Titanium Screws, FX Stickers and Installation Instructions.
| BIKE / PLATFORM | NOTES |
|---|---|
| Surron Light Bee / Light Bee 2 / Ultra Bee / Segway X160 / X260 |
PLUG-AND-PLAY
Plug-and-play. Standard Surron connector. Ultra Bee and Light Bee 2 come with a shorter length cable. |
| Surron Light Bee / Ultra Bee + EBMX X-9000, Torp, any aftermarket controller. |
CALIBRATION REQUIRED
Works with EBMX, Torp, Ventus, or any controller with Surron connector. Calibrate before use in the controller's app. Ultra Bee selection comes with a shorter length cable. |
| eRide Pro S and 2.0 |
PLUG-AND-PLAY
Standard Surron triangular connector. For the start button wires, user must tie together or install a momentary button handlebar attachment to replace park button on stock throttle. |
| eRide Pro 3.0 / SR |
MODIFICATION REQUIRED
Standard Surron connector. Disable the start button in the eRide Pro app. Or add a single momentary button (handlebar attachment) to replace the stock throttle button, many are found on Amazon. |
| Talaria MX3 |
PLUG-AND-PLAY
Standard Surron connector. Start button wires need to be connected together, or user must purchase a single momentary button for their handlebar to replace the park button. |
| Talaria MX4 / MX5 / XXX |
PLUG-AND-PLAY
5-pin circular green connector. Start button is bypassed automatically in the FX cable provided. User needs to trim back the tubing on the controller side connector so that it's flush with the green face of the connector for proper fit. |
| Y-Volt Surge V |
PLUG-AND-PLAY
5-pin green male circular connector |
| Altis Sigma |
PLUG-AND-PLAY
Altis Sigma 3-pin white rectangular connector. |
| Ventus 1+ (v1.7 throttle) |
PLUG-AND-PLAY
Ventus 1+ 3-pin white rectangular connector |
| MACFOX bikes w/ stock thumb throttle |
PLUG-AND-PLAY
3-pin male, yellow / orange circular connector |
| P-51 (stock controller) |
PLUG-AND-PLAY
3-pin circular yellow / orange male connector. |
| RAWR Mantis Pro |
PLUG-AND-PLAY
M7 yellow small 3-pin circular connector |
| Falcon Pro / Falcon GT |
PLUG-AND-PLAY
FX Pro only — not compatible with the FX Classic. 5-pin green female circular connector. Start button is bypassed in the supplied FX cable. |
| 79Bike - Falcon Lite |
PLUG-AND-PLAY
FX Pro only — not compatible with the FX Classic. 3-pin male orange / yellow connector |
| Bonnell 775MX |
PLUG-AND-PLAY
3-Pin female yellow / orange circular connector |
| Zooz Bike Gen 1 |
PLUG-AND-PLAY
Plug and Play, 3-pin male yellow or orange connector |
| Zooz Bike Gen 2, 3, 4, & Flex |
PLUG-AND-PLAY
Plug and Play, 3-pin male yellow or orange connector |
| Throne Strike Shadow |
PLUG-AND-PLAY
Plug and play, Surron-style male connector |
| Throne SRPNT Z27 |
PLUG-AND-PLAY
Plug and Play. Standard Surron connector (female) |
| Tuttio Solei 01 |
MODIFICATION REQUIRED
Adapter required, check here for information. Plug is standard Surron when using this adapter. |
| Juiced eBikes |
PLUG-AND-PLAY
Plug and play. 3-pin male circular orange / yellow connector |
| Arctic Leopard Bikes |
PLUG-AND-PLAY
Plug and play. 3-pin female white rectangular connector |
| Yozma IN 10 |
PLUG-AND-PLAY
Standard Surron MALE side connector. Alternatively, user can cut wires at the handlebar and solder directly, the correct wire color connection is available . |
| BAC4000 / BAC855 / BAC8000 |
CALIBRATION REQUIRED
Calibrate in the controller settings. Connector is not supplied, user must twist or solder wires. |
| Fardriver |
CALIBRATION REQUIRED
Works with all Fardriver controllers (must be calibrated after installation). Connector is not supplied, user must twist or solder wires. |
| VESC-based controller (FX Pro) |
CALIBRATION REQUIRED
Voltage range 0.83V–4.2V. Use VESC Tool for auto-calibration. User must obtain and install their own connector or solder wires. |
| VESC-based controller (FX Classic) |
CALIBRATION REQUIRED
Voltage range 0.87V–4.2V. Use VESC Tool for auto-calibration. User must obtain and install their own connector or solder wires. |
Shipping
Shipping
The usual timeframe for delivery of bikes which are in stock is around 2-3 working days depending on when the bike was ordered and if it was ordered via finance or not.
Finance orders MUST be delivered by an in house courier which can delay the delivery. We will be in contact beforehand to schedule the delivery date and time with you.
More power than ever before
-
The original precision twist throttle

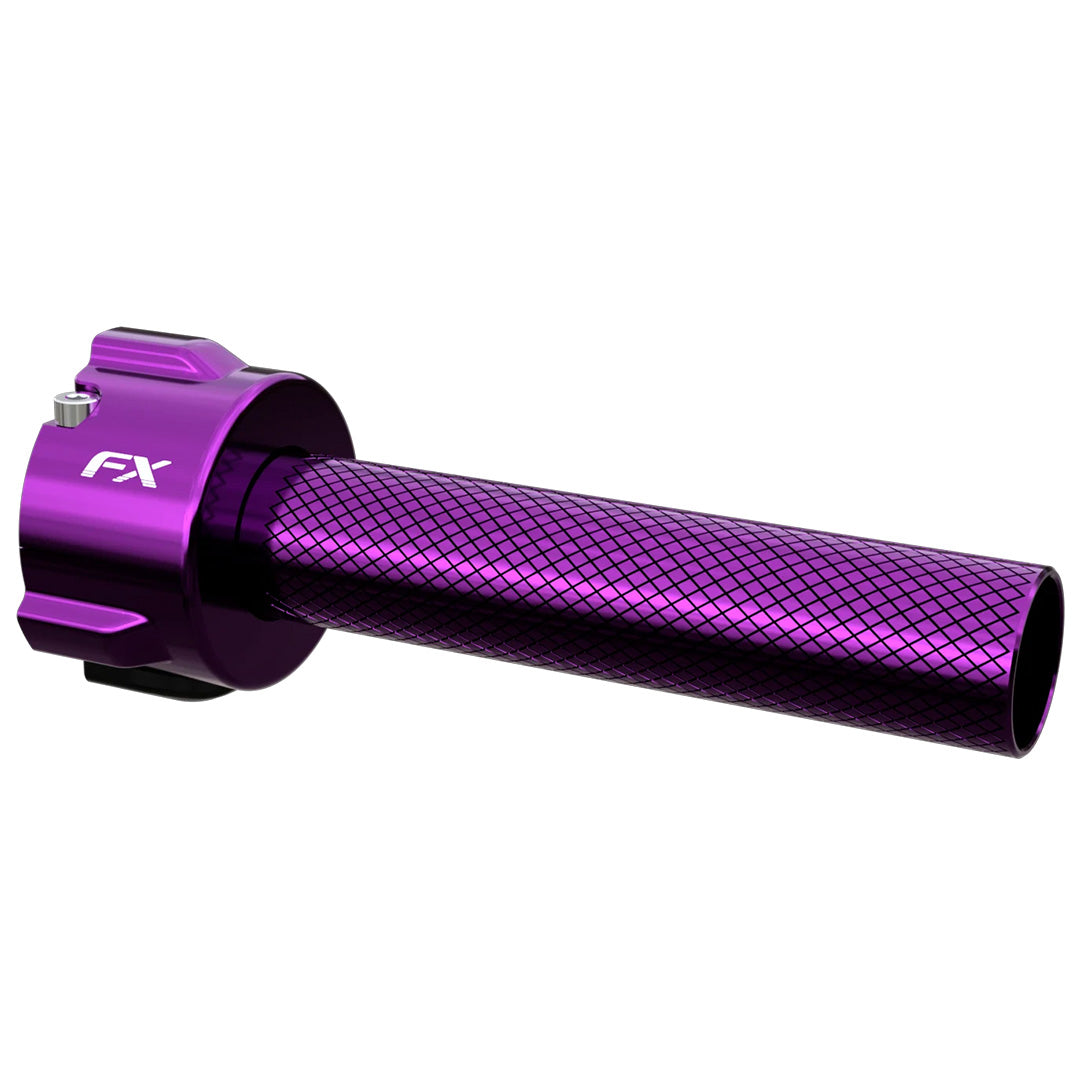

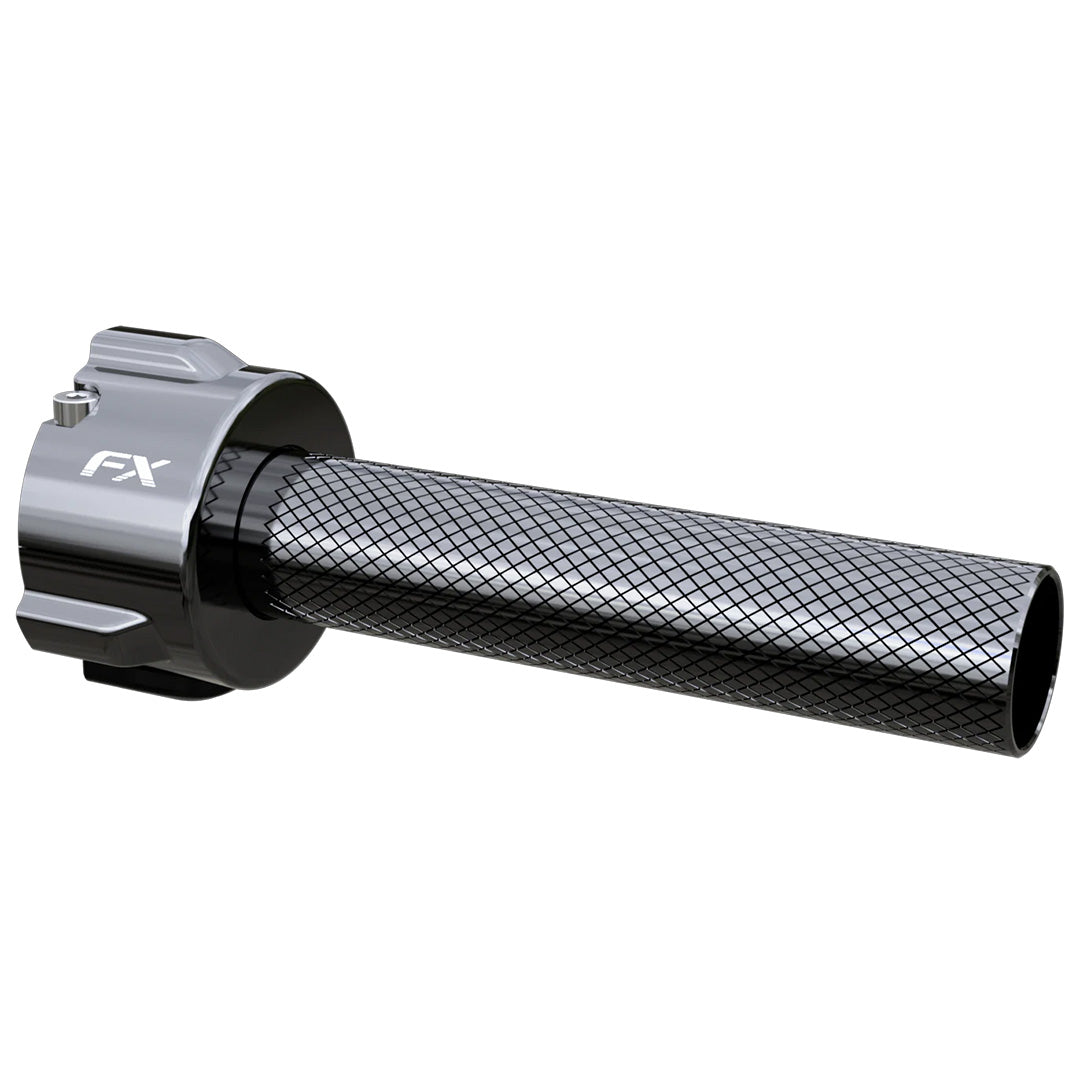

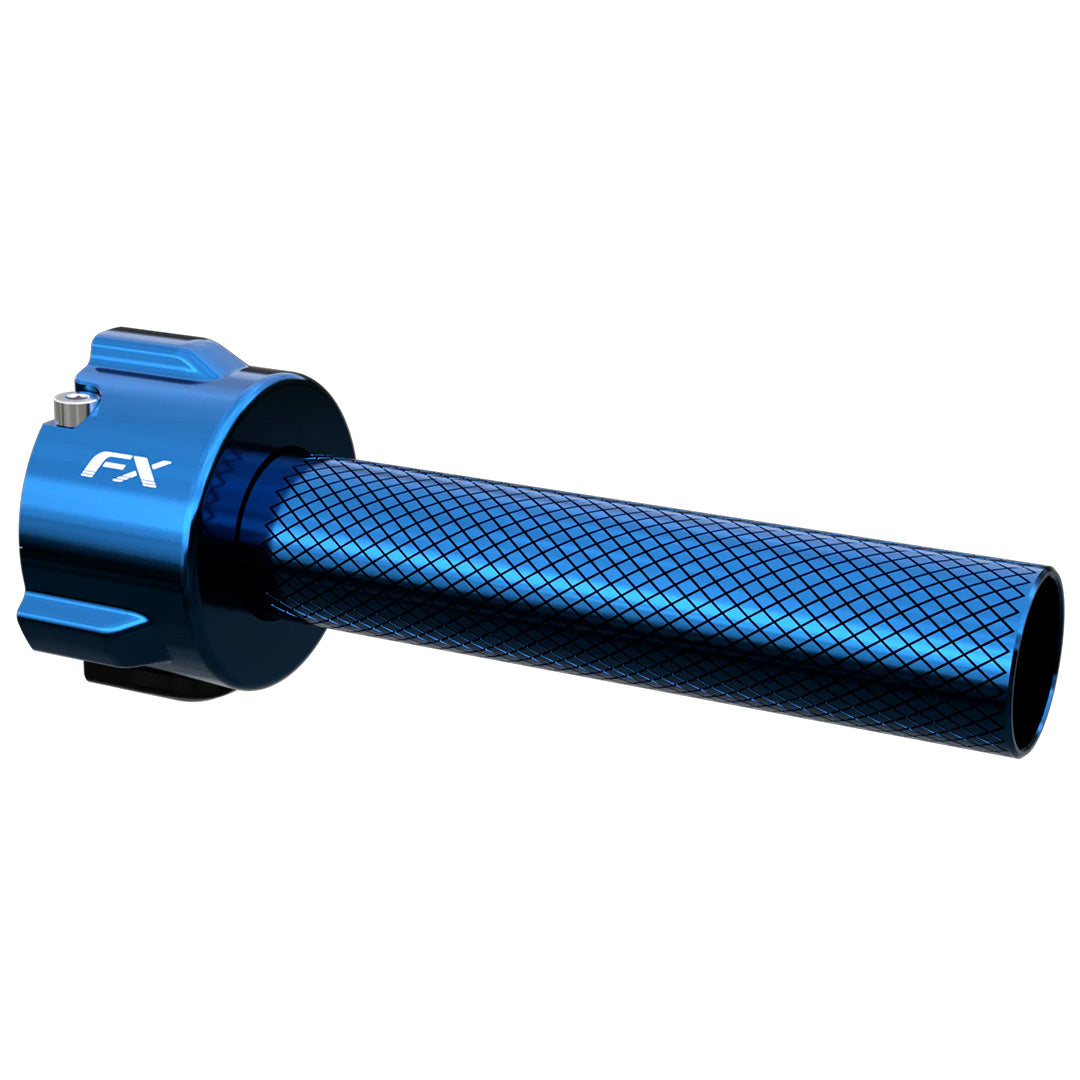

The throttle that started it all. CNC-machined 6061-T6 aluminum, genuine Honeywell Hall sensor, 65° short-throw rotation, and 5 anodized color options. The proven choice for eBike and eMoto riders worldwide.
- ▸65° short-throw rotation
- ▸Grade 5 titanium screws
- ▸Stainless steel bearing
- ▸3-level adjustable spring tension
- ▸IP65 weather rated
- ▸5 anodized colors
-
The apex of throttle precision
The most advanced FX throttle ever built. The PRO Features a 50° short-throw rotation, adjustable start-point set screw, Grade 5 blue-tint titanium screws, stainless steel bearing, genuine Honeywell Hall sensor, and 3 anodised colour options.
- ▸50° ultra-short rotation
- ▸Adjustable start-point set screw
- ▸Grade 5 blue-tint titanium screws
- ▸Stainless steel bearing
- ▸3-level adjustable spring tension
- ▸3 anodized colors
-
ADJUSTABLESPRING TENSION
Three distinct tension settings let you dial in the exact feel you want, from feather-light snap-back to a firm, race-ready return.
LIGHT TENSION
Feather-light snap-back. Ideal for technical trail riding where precise low-speed modulation is critical.
MEDIUM TENSION
Balanced tension. The sweet spot for most riders, responsive yet controlled for track and trail.
FIRM TENSION
Shotgun-cocking snap-back. Maximum resistance prevents accidental throttle application. Race-ready.
