FX CLASSIC REPLACEMENT HALL SENSOR WIRES
FX CLASSIC REPLACEMENT HALL SENSOR WIRES
Part Number:FX-HALL-SLB
- NATIONWIDE DELIVERY
- DISPATCHED FROM THE UK
Description
Description

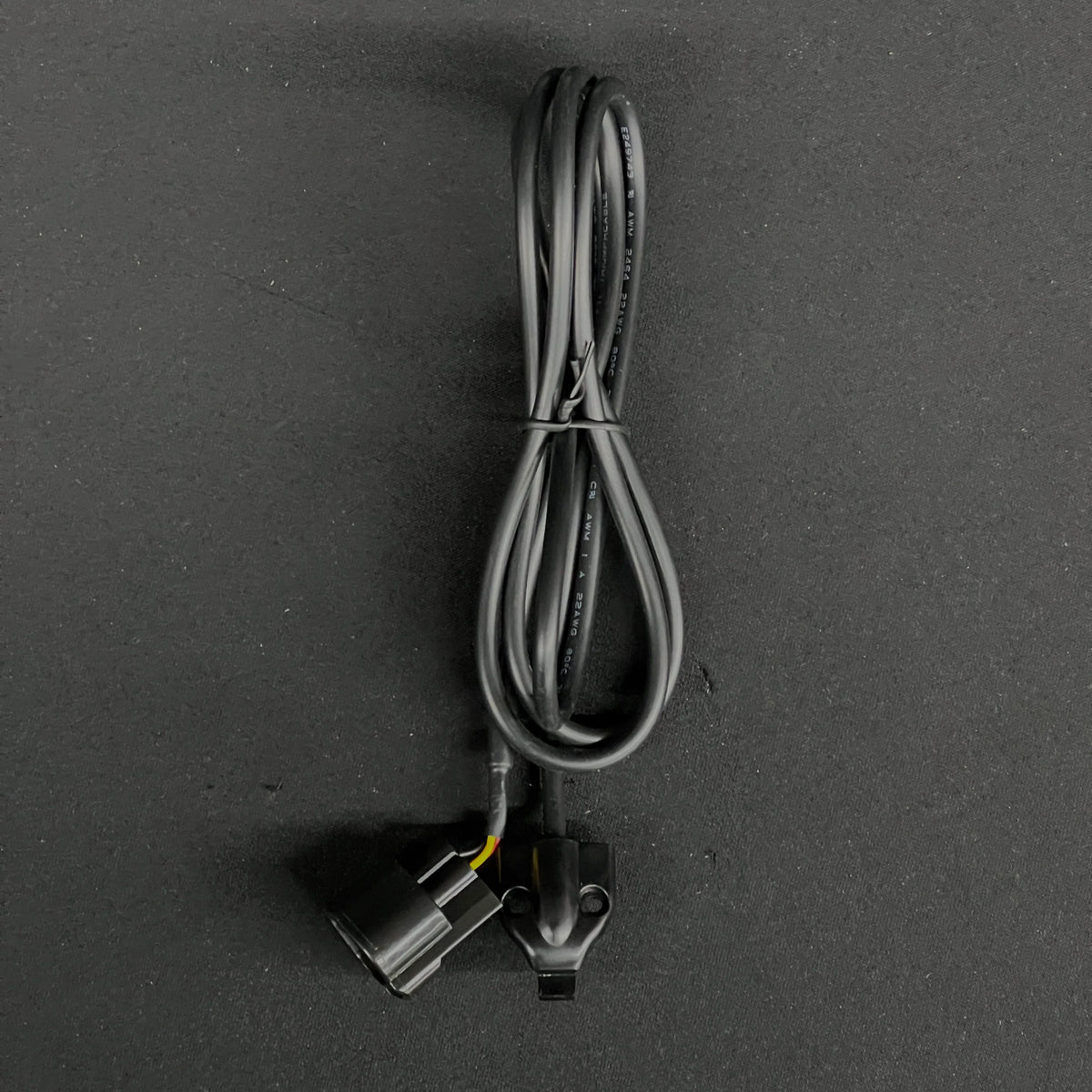

Genuine replacement Hall sensor wires for FX Classic twist throttles.
Note that the Talaria connector fits MX4, MX5, and XXX Pro models, and bypasses the start button found on the stock throttle. Includes two screws for attachment.
Shipping
Shipping
The usual timeframe for delivery of bikes which are in stock is around 2-3 working days depending on when the bike was ordered and if it was ordered via finance or not.
Finance orders MUST be delivered by an in house courier which can delay the delivery. We will be in contact beforehand to schedule the delivery date and time with you.

POWER IS NOTHING WITHOUT CONTROL
Some upgrades just change the appearance of your bike. This one changes your ride feel forever. FX Throttles give you total control, total confidence, and a feeling you'll chase every time you ride.
Every ride should feel confident, not shaky. FX Throttles give you smooth, steady power control so you always know what your bike will do next. Built tough from machined aluminum, they're made to last as long as you ride.
Go Off Road is the new UK Distributor for FX Throttles!
your ride, your style
-

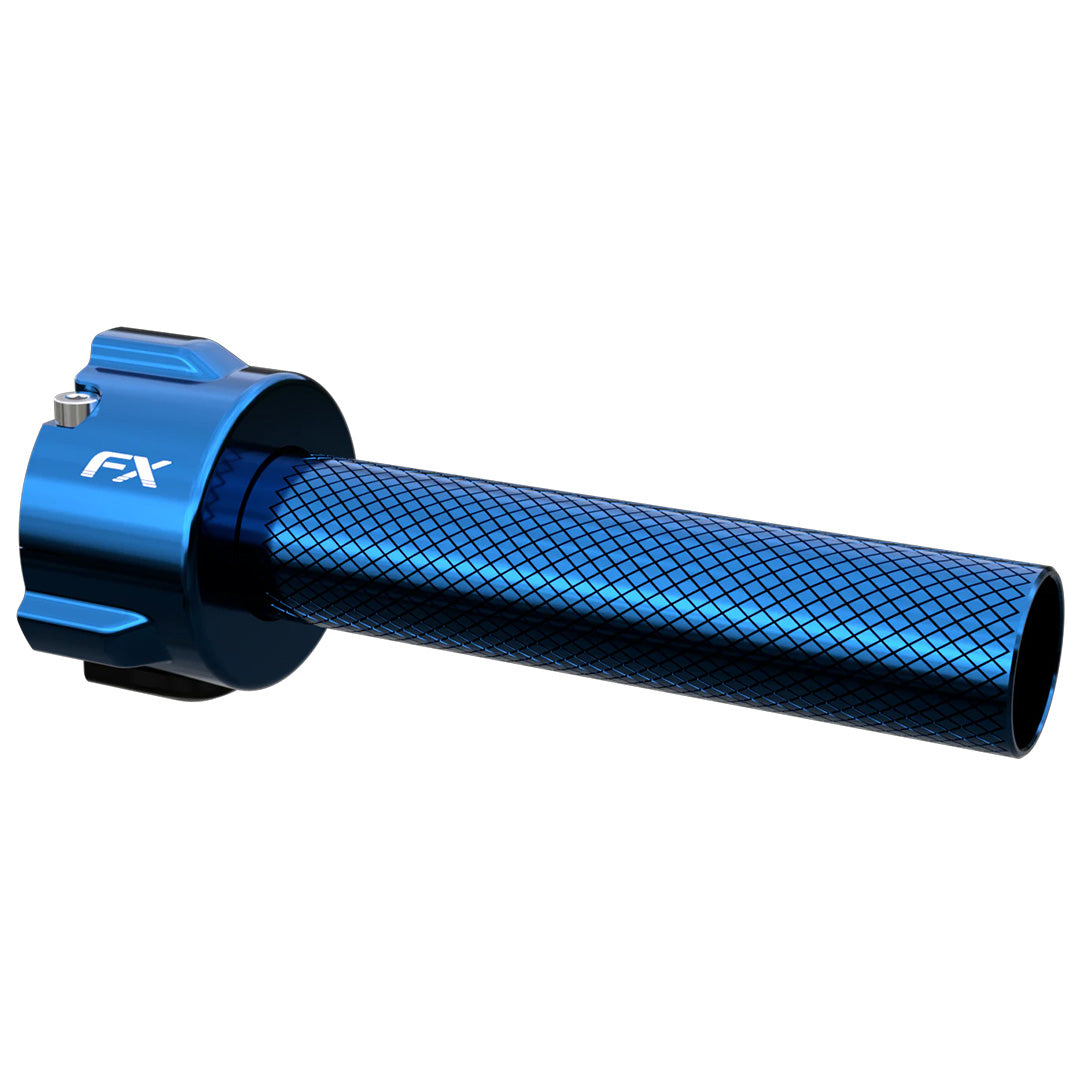

The original precision twist throttle
The throttle that started it all. CNC-machined 6061-T6 aluminum, genuine Honeywell Hall sensor, 65° short-throw rotation, and 5 anodized color options. The proven choice for eBike and eMoto riders worldwide.
- ▸65° short-throw rotation
- ▸Grade 5 titanium screws
- ▸Stainless steel bearing
- ▸3-level adjustable spring tension
- ▸IP65 weather rated
- ▸5 anodized colors
-

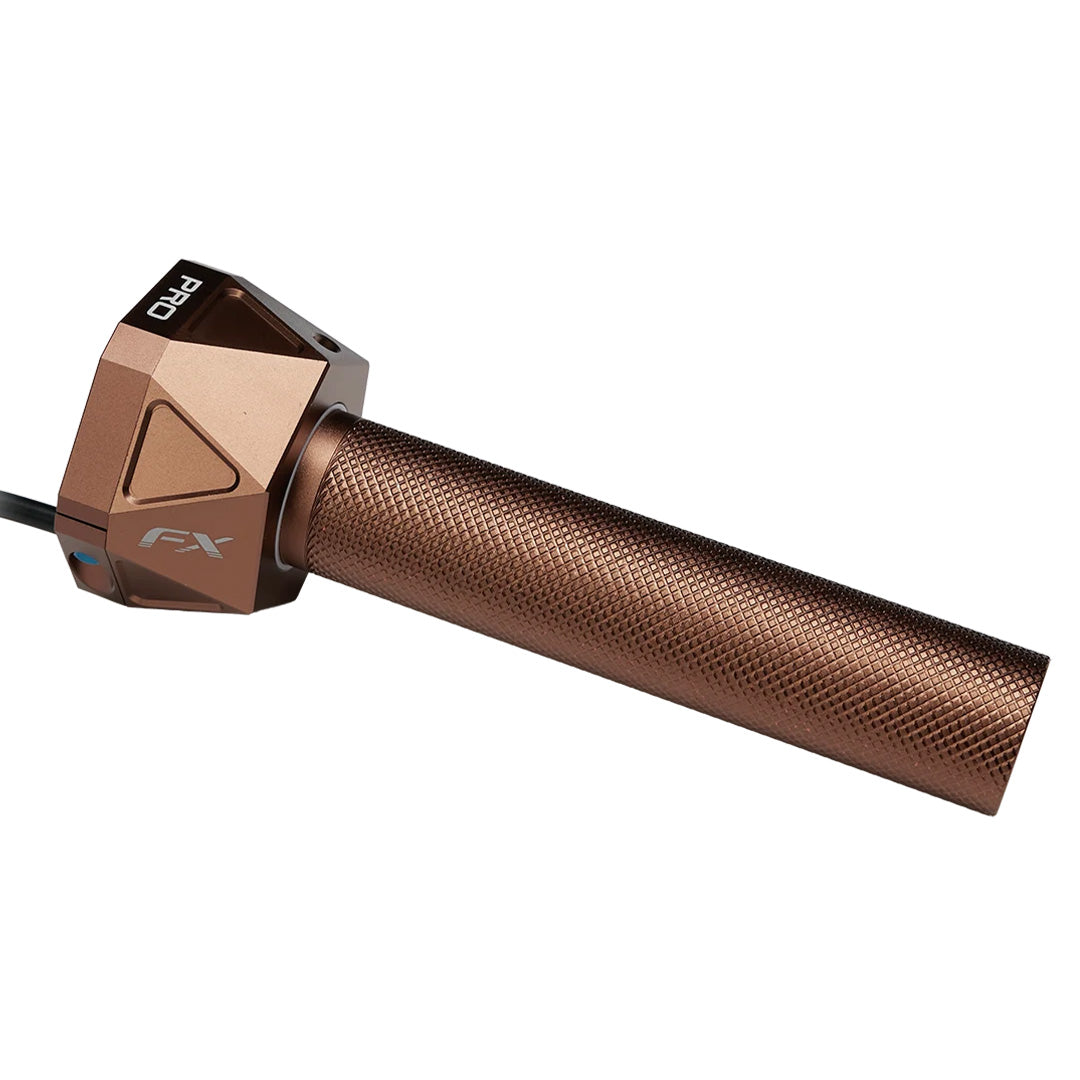

The apex of throttle precision
The most advanced FX throttle ever built. The PRO Features a 50° short-throw rotation, adjustable start-point set screw, Grade 5 blue-tint titanium screws, stainless steel bearing, genuine Honeywell Hall sensor, and 3 anodised colour options.
- ▸50° ultra-short rotation
- ▸Adjustable start-point set screw
- ▸Grade 5 blue-tint titanium screws
- ▸Stainless steel bearing
- ▸3-level adjustable spring tension
- ▸3 anodized colors
-

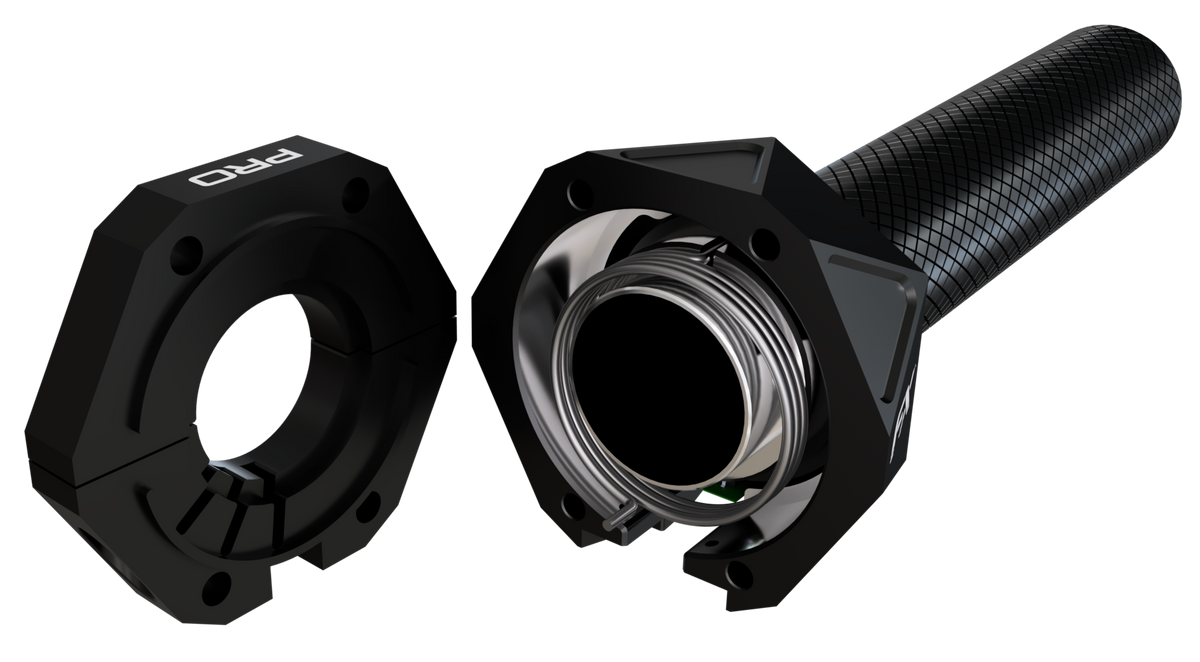

ADJUSTABLE SPRING TENSION
Three distinct tension settings let you dial in the exact feel you want, from feather-light snap-back to a firm, race-ready return.
LIGHT TENSION
Feather-light snap-back. Ideal for technical trail riding where precise low-speed modulation is critical.
MEDIUM TENSIONBalanced tension. The sweet spot for most riders, responsive yet controlled for track and trail.
FIRM TENSIONShotgun-cocking snap-back. Maximum resistance prevents accidental throttle application. Race-ready.
FX THROTTLE FAQS
What bikes are compatible?
All FX throttles fit standard 7/8" (22.2mm) handlebars and are compatible with any eBike, eMoto, or eScooter using a 3-wire Hall effect throttle. Pre-wired with a Surron connector by default; custom connectors are available for a number of bikes, please check the FX PRO or FX CLASSIC fit guides for more details.
Any bike can use the FX throttles because the voltage output is an industry standard. If your bike connector isn't listed, you can also solder the three wires directly to your controller harness.
Supported Models:
Surron Light Bee / Light Bee 2 / Ultra Bee / Segway X160 / X260 - PLUG-AND-PLAY
Plug-and-play. Standard Surron connector. Ultra Bee and Light Bee 2 come with a shorter length cable.
Surron Light Bee / Ultra Bee + EBMX X-9000, Torp, any aftermarket controller - CALIBRATION REQUIRED
Works with EBMX, Torp, Ventus, or any controller with Surron connector. Calibrate before use in the controller's app. Ultra Bee selection comes with a shorter length cable.
E-Ride Pro S and 2.0 - PLUG-AND-PLAY
Standard Surron triangular connector. For the start button wires, user must tie together or install a momentary button handlebar attachment to replace park button on stock throttle.
eRide Pro 3.0 / SR - MODIFICATION REQUIRED
Standard Surron connector. Disable the start button in the eRide Pro app. Or add a single momentary button (handlebar attachment) to replace the stock throttle button, many are found on Amazon.
Talaria MX3 - PLUG-AND-PLAY
Standard Surron connector. Start button wires need to be connected together, or user must purchase a single momentary button for their handlebar to replace the park button.
Talaria MX4 / MX5 / XXX - PLUG-AND-PLAY
5-pin circular green connector. Start button is bypassed automatically in the FX cable provided. User needs to trim back the tubing on the controller side connector so that it's flush with the green face of the connector for proper fit.
Y-Volt Surge V - PLUG-AND-PLAY
5-pin green male circular connector
Altis SigmaPLUG-AND-PLAY
Altis Sigma 3-pin white rectangular connector.
Ventus 1+ (v1.7 throttle)PLUG-AND-PLAY
Ventus 1+ 3-pin white rectangular connector
MACFOX bikes w/ stock thumb throttlePLUG-AND-PLAY
3-pin male, yellow / orange circular connector
P-51 (stock controller)PLUG-AND-PLAY
3-pin circular yellow / orange male connector.
RAWR Mantis ProPLUG-AND-PLAY
M7 yellow small 3-pin circular connector
Falcon Pro / Falcon GTPLUG-AND-PLAY
FX Pro only — not compatible with the FX Classic. 5-pin green female circular connector. Start button is bypassed in the supplied FX cable.
79Bike - Falcon LitePLUG-AND-PLAY
FX Pro only — not compatible with the FX Classic. 3-pin male orange / yellow connector
Bonnell 775MXPLUG-AND-PLAY
3-Pin female yellow / orange circular connector
Zooz Bike Gen 1PLUG-AND-PLAY
Plug and Play, 3-pin male yellow or orange connector
Zooz Bike Gen 2, 3, 4, & FlexPLUG-AND-PLAY
Plug and Play, 3-pin male yellow or orange connector
Throne Strike ShadowPLUG-AND-PLAY
Plug and play, Surron-style male connector
Throne SRPNT Z27PLUG-AND-PLAY
Plug and Play. Standard Surron connector (female)
Tuttio Solei 01MODIFICATION REQUIRED
Adapter required, check here for information. Plug is standard Surron when using this adapter.
Juiced eBikesPLUG-AND-PLAY
Plug and play. 3-pin male circular orange / yellow connector
Arctic Leopard BikesPLUG-AND-PLAY
Plug and play. 3-pin female white rectangular connector
Yozma IN 10PLUG-AND-PLAY
Standard Surron MALE side connector. Alternatively, user can cut wires at the handlebar and solder directly, the correct wire color connection is available here.
BAC4000 / BAC855 / BAC8000CALIBRATION REQUIRED
Calibrate in the controller settings. Connector is not supplied, user must twist or solder wires.
FardriverCALIBRATION REQUIRED
Works with all Fardriver controllers (must be calibrated after installation). Connector is not supplied, user must twist or solder wires.
VESC-based controller (FX Pro)CALIBRATION REQUIRED
Voltage range 0.83V–4.2V. Use VESC Tool for auto-calibration. User must obtain and install their own connector or solder wires.
VESC-based controller (FX Classic)CALIBRATION REQUIRED
Voltage range 0.87V–4.2V. Use VESC Tool for auto-calibration. User must obtain and install their own connector or solder wires.
What is the difference between the FX Pro Twist Vs. FX Classic Twist
The FX Pro Twist features a tighter 50° rotation arc (vs 65° on the Classic) and adds an adjustable start-point set screw that lets you dial in the exact position in the rotation where power begins. The PRO features a new, modern angular design and lower part count. Both have a CNC billet aluminum body, Honeywell Hall sensor, titanium screws, and stainless steel bearing.
How Do I Adjust The Spring Tension?
Both the FX Pro Twist and FX Classic Twist feature three adjustable spring tension levels. Remove the hall sensor piece, then the end cap, swap the spring to the desired tension position, and reinstall. The process takes under two minutes. A detailed guide is provided in the included printed manual with each throttle.
Why should I order from Go Off Road and not direct from FX?
Go Off Road are the new UK Distributor for FX Throttles working directly with them.
If you are in the UK then ordering from us will save you money and time on shipping, meaning you have more time riding on your bike with your awesome new throttle!
How Do I Install?
INSTALLATION
Installing your FX throttle takes under 10 minutes with a few L-keys.
01
REMOVE YOUR OLD THROTTLE
Loosen the clamp bolt on your existing throttle and slide it off the handlebar. Disconnect the 3-pin connector from your controller harness.
02
SLIDE ON THE FX THROTTLE
Loosen the two vertical screws slightly on your FX throttle. Slide the FX throttle onto your 7/8" (22.2mm) handlebar from the grip end. Position it at your preferred location and orientation. Make sure to use handlebar end plugs to protect the throttle in the event of a crash or tipover!
03
TIGHTEN THE SCREWS
Tighten the back clamps using the screws that go in vertically, as well as the screws on the end of the throttle. Do not overtighten, the aluminum clamp is precision-machined and does not require excessive force.
04
CONNECT THE WIRING
Connect the FX throttle's connector to your controller harness. Secure the wire along the handlebar using zip ties.
05
TEST BEFORE RIDING
Power on your bike and verify smooth, linear throttle response from idle to full. Check that the throttle returns to zero when released.
