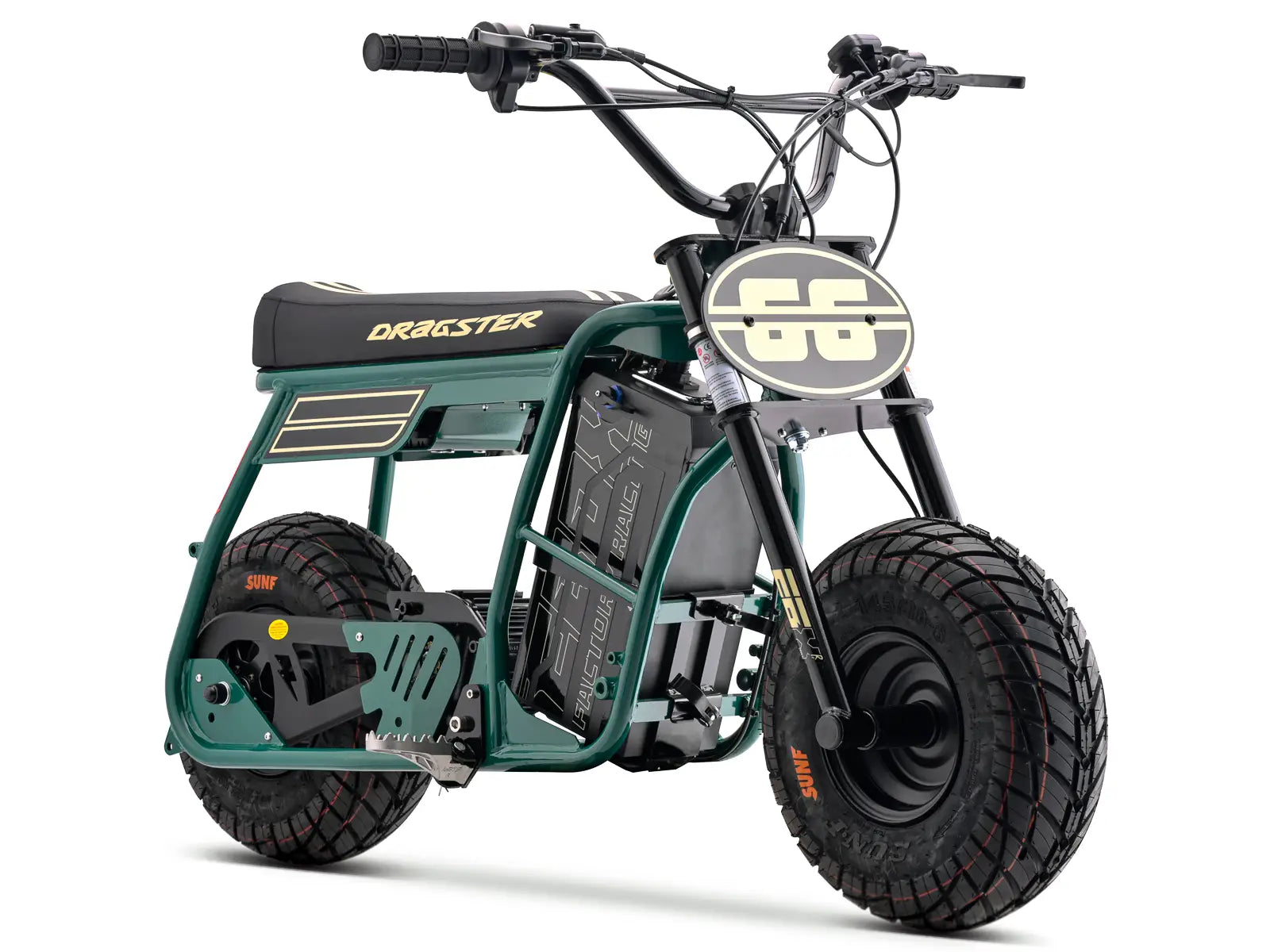

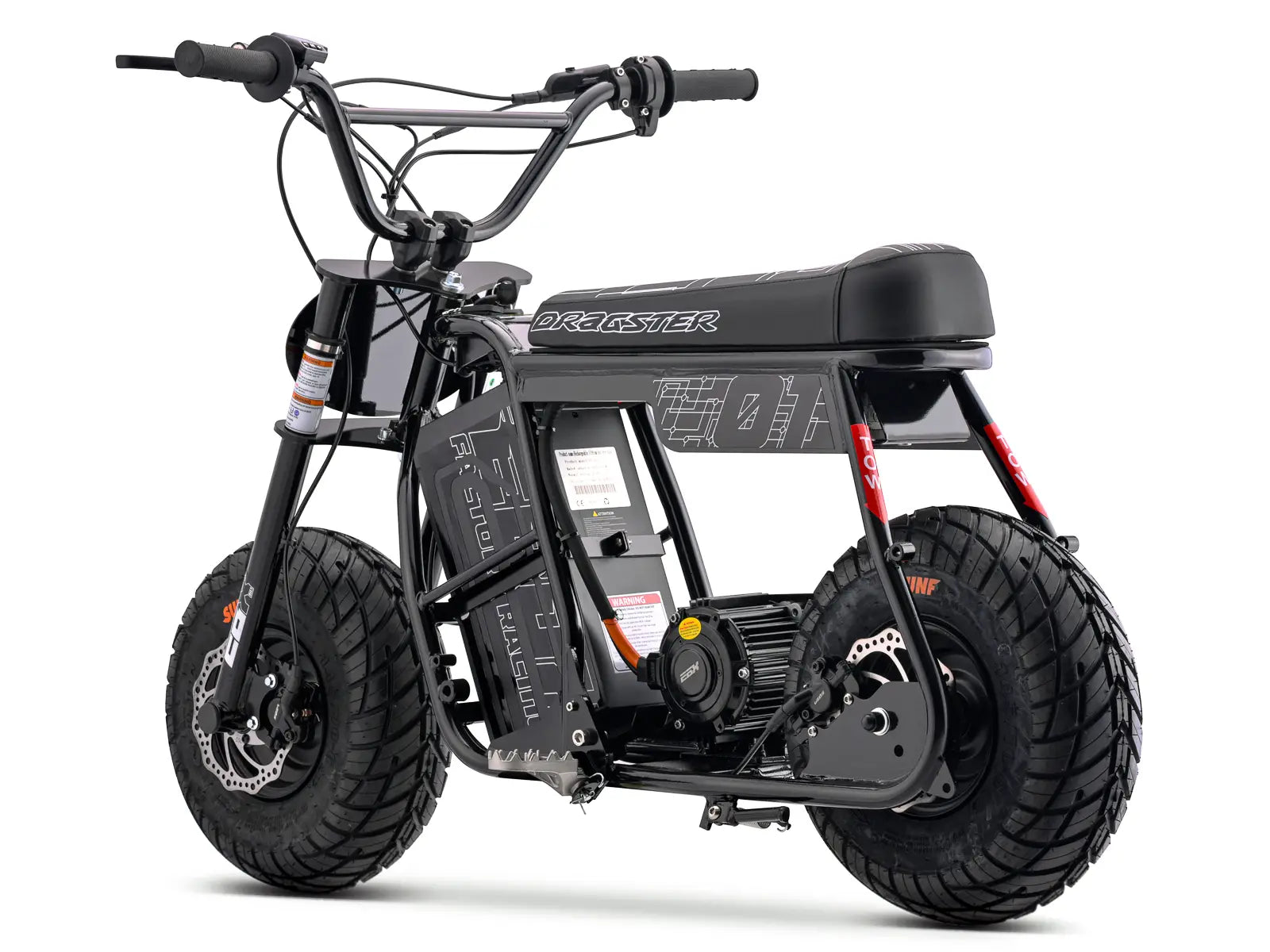

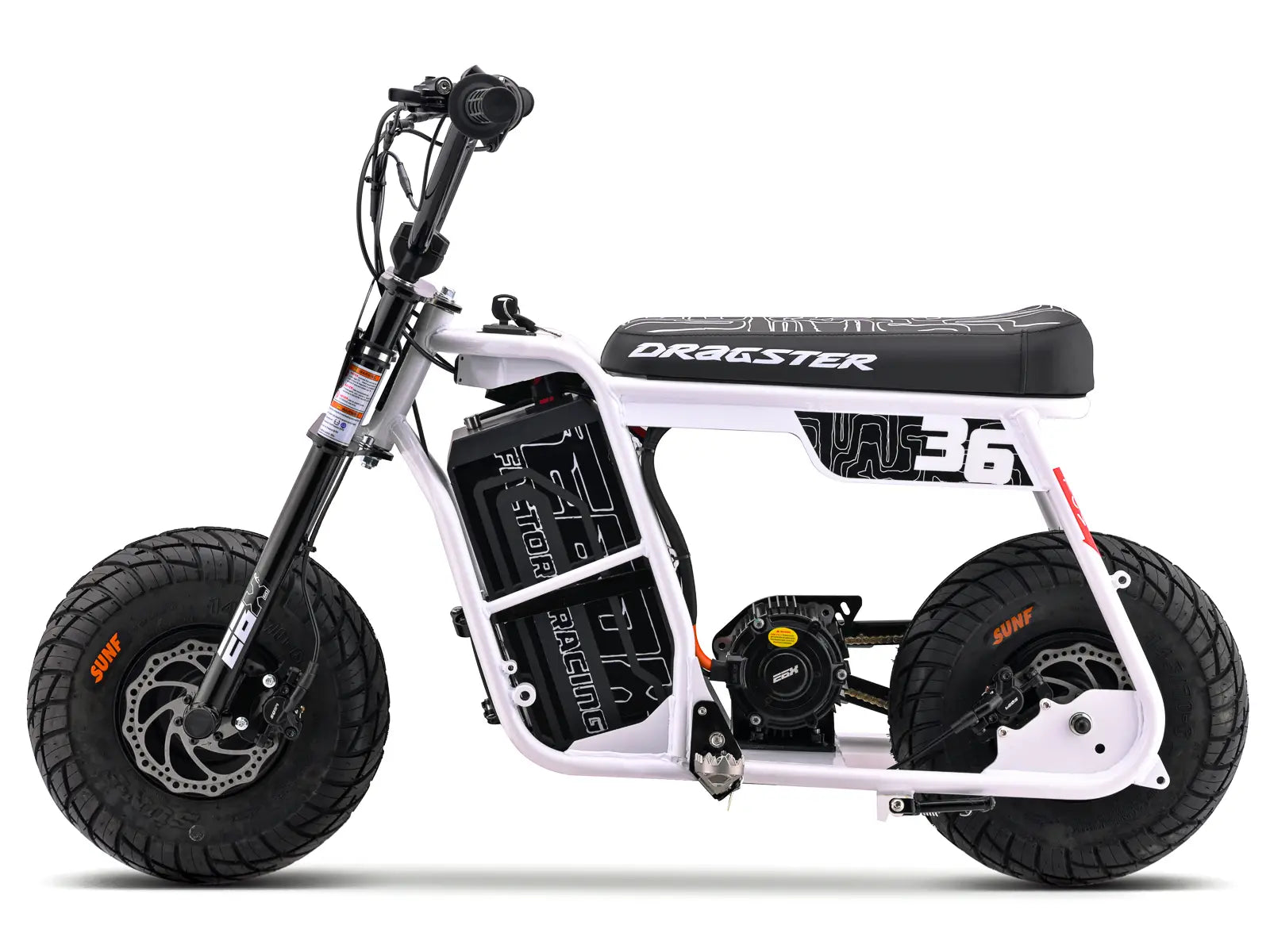

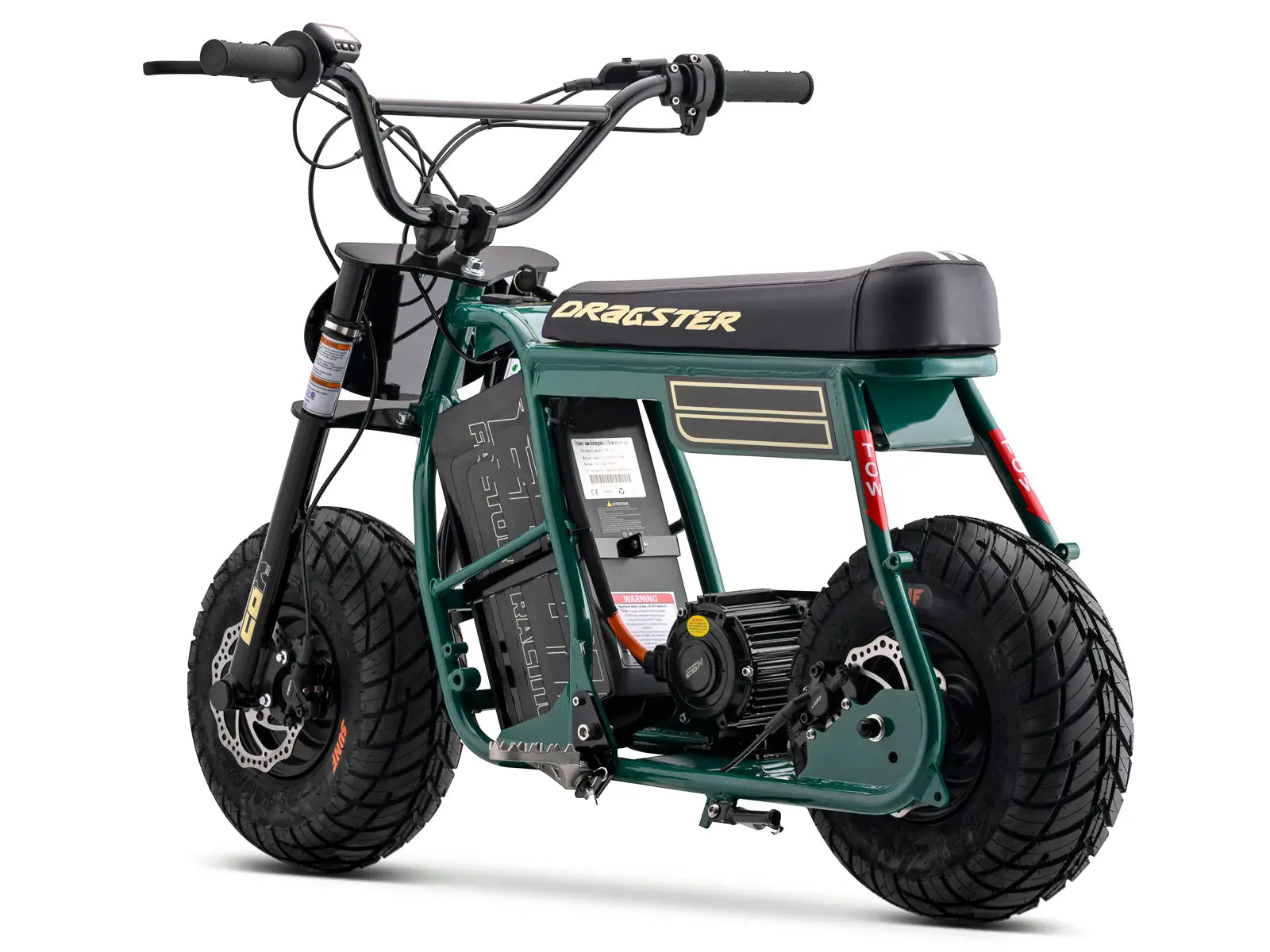

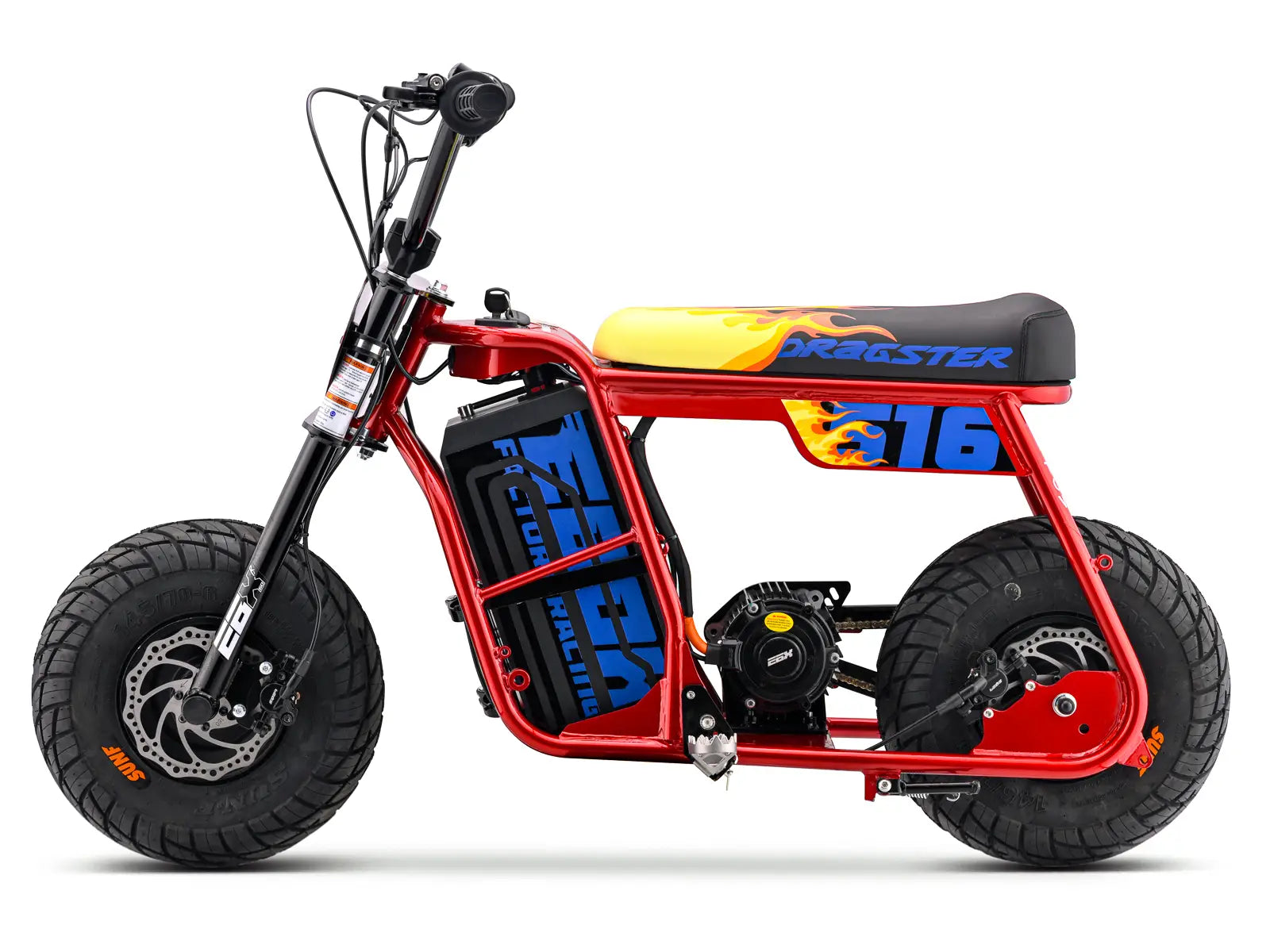

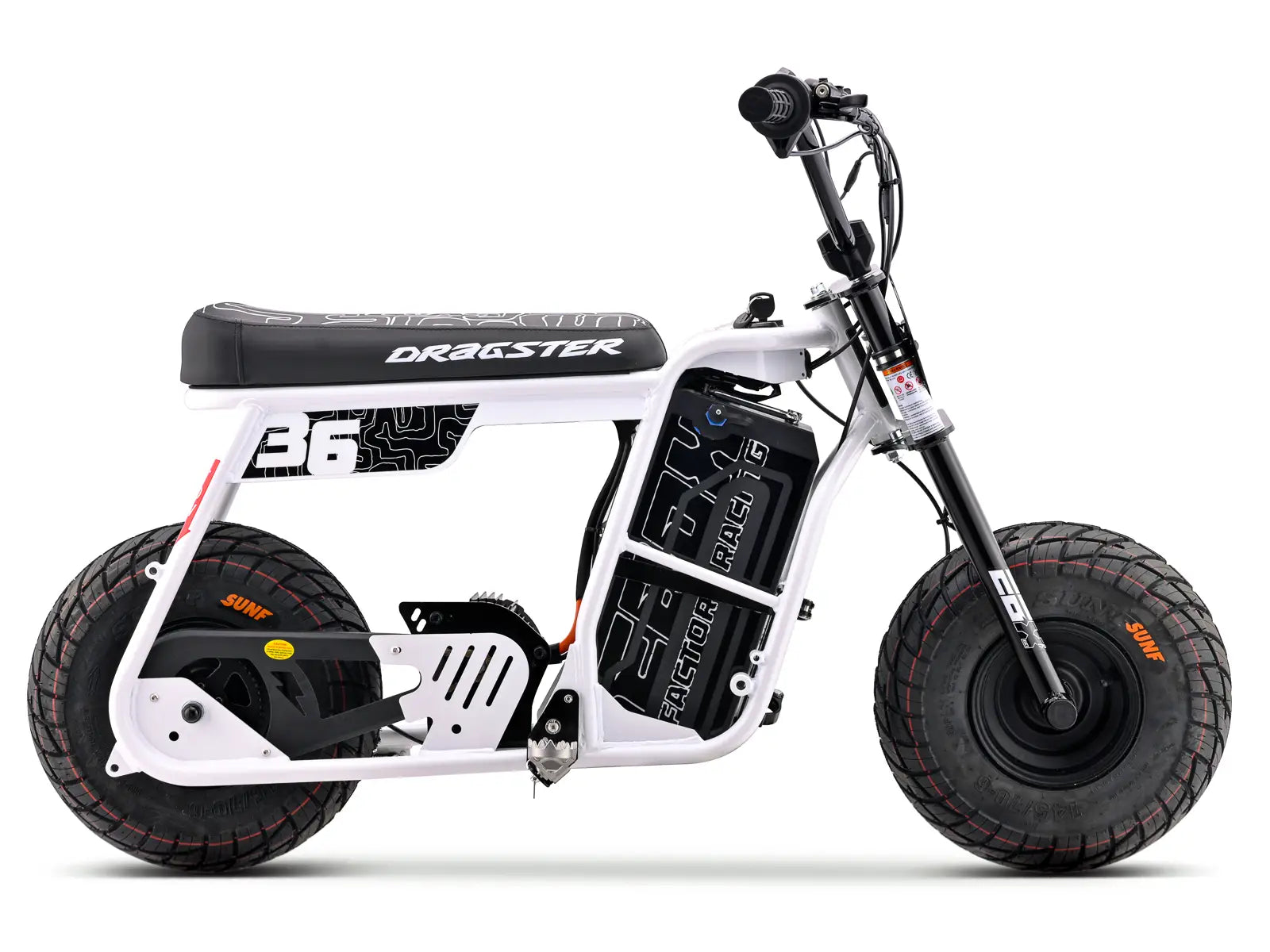

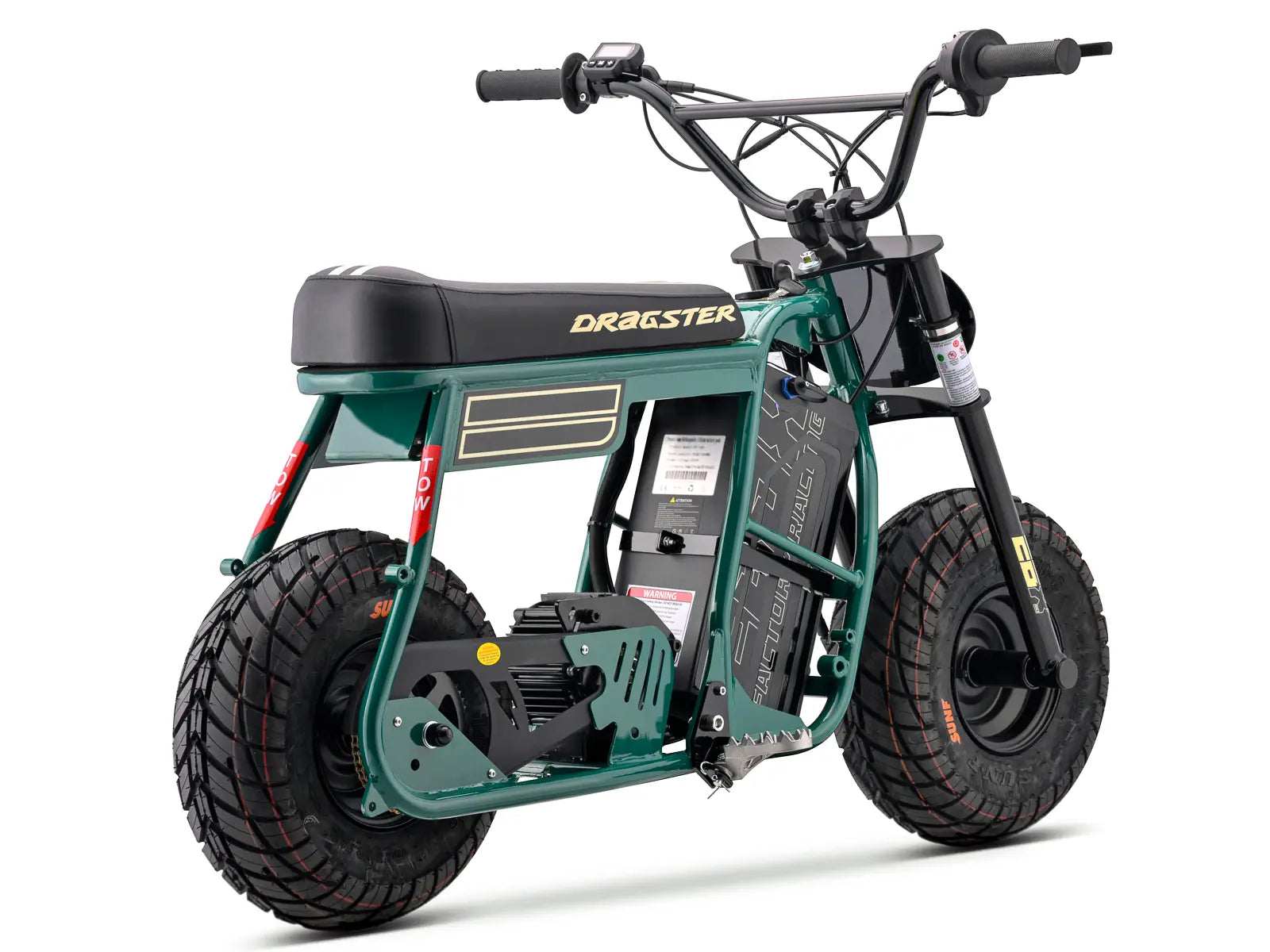

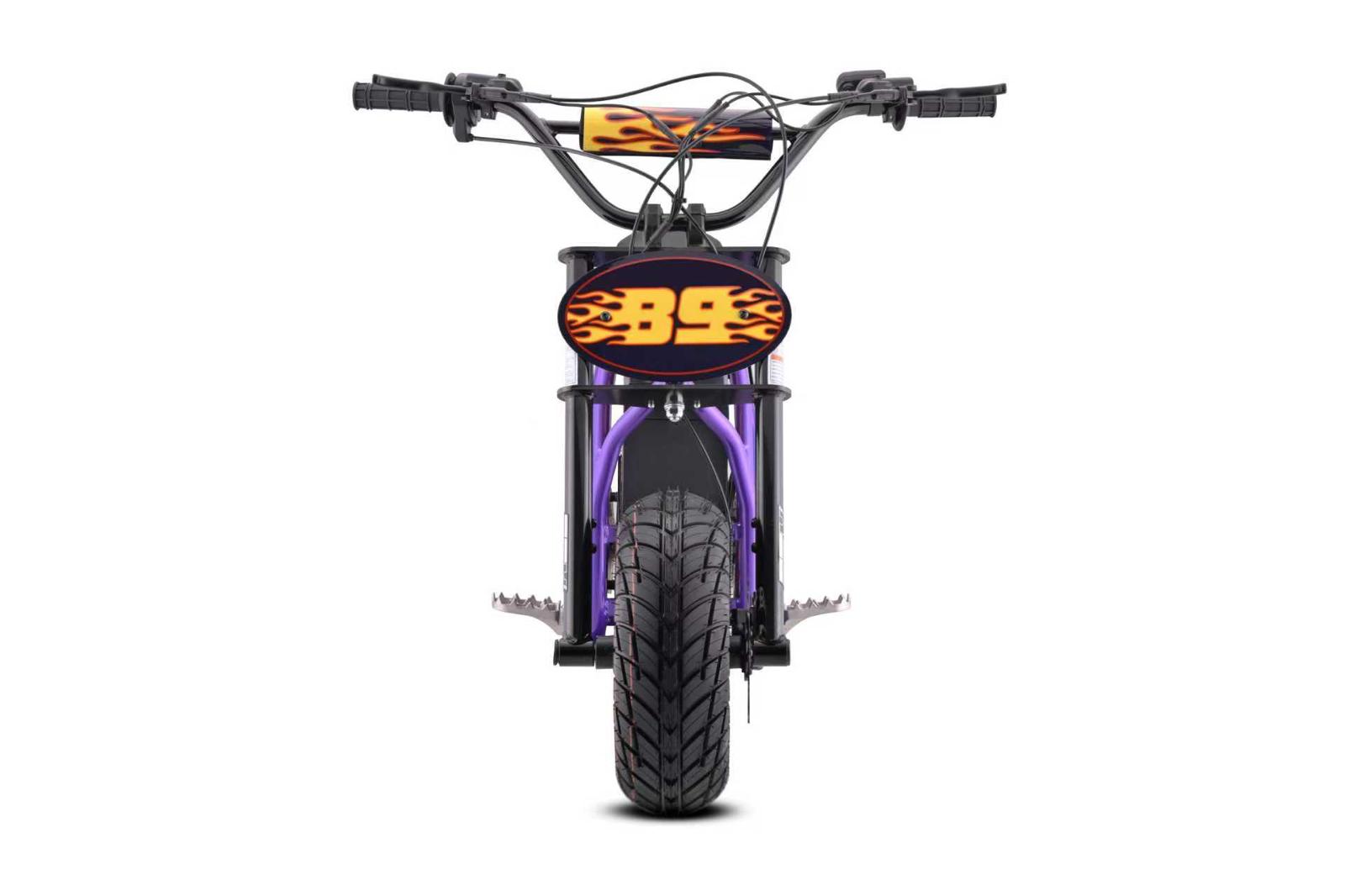

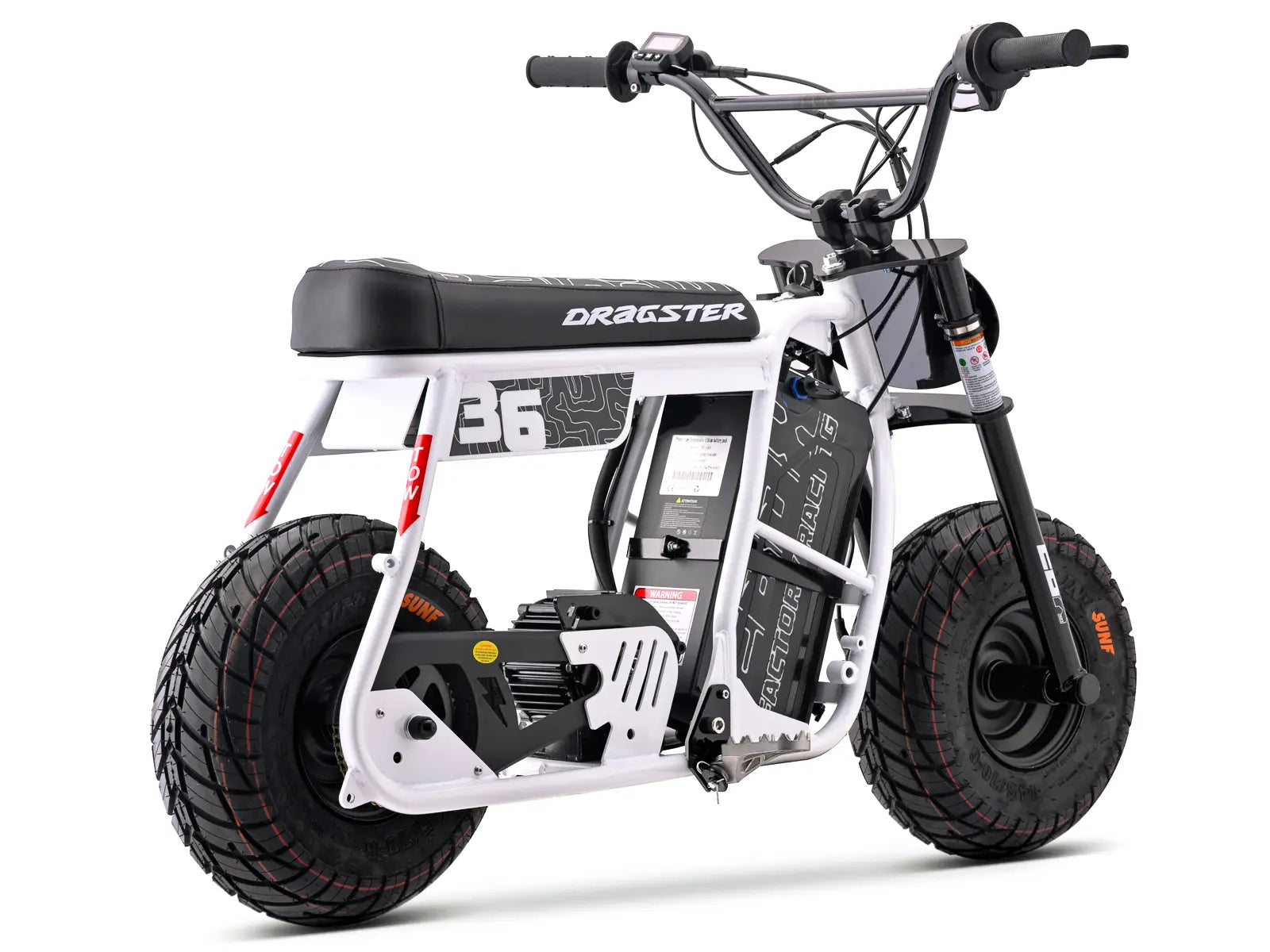

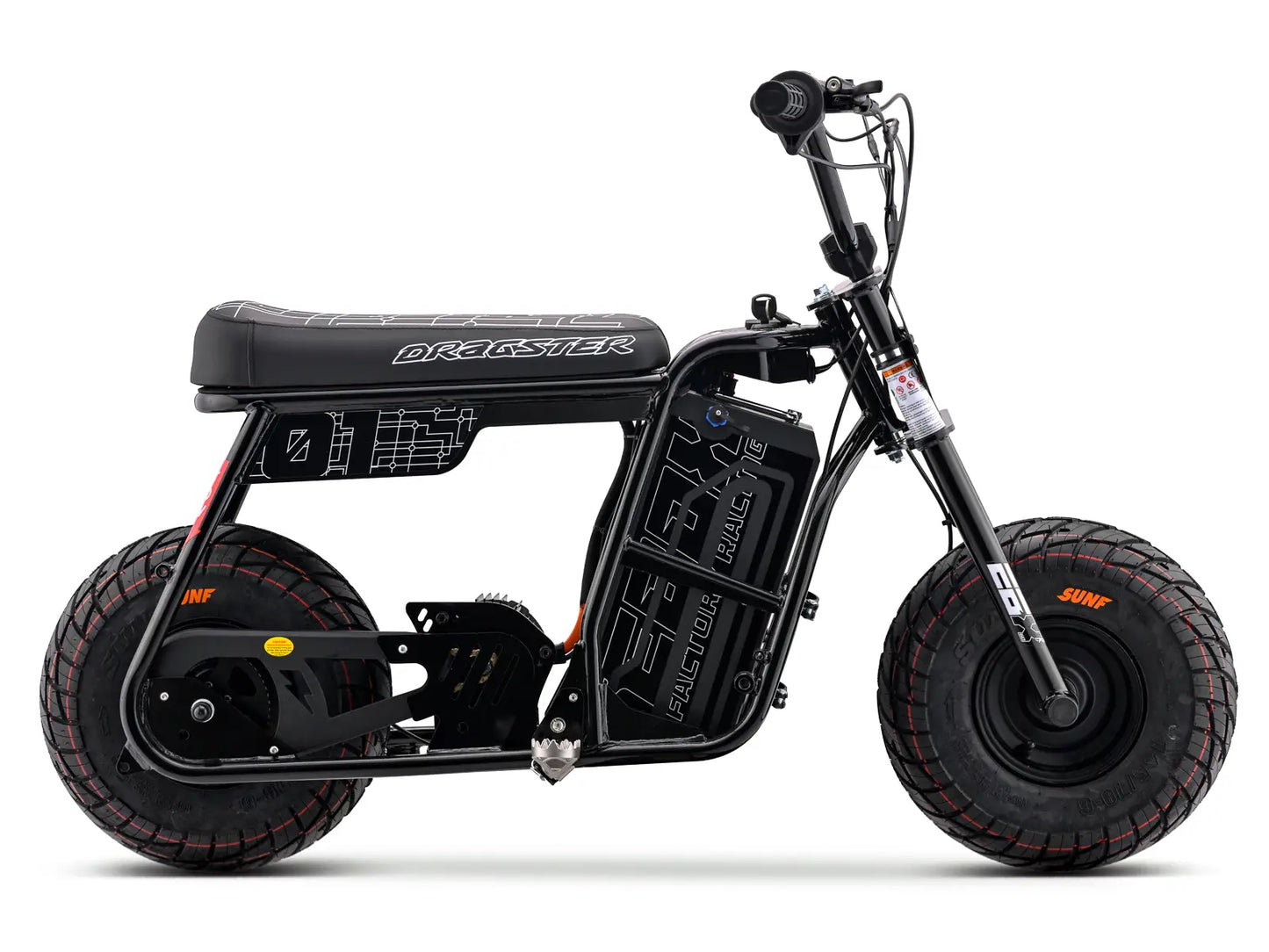

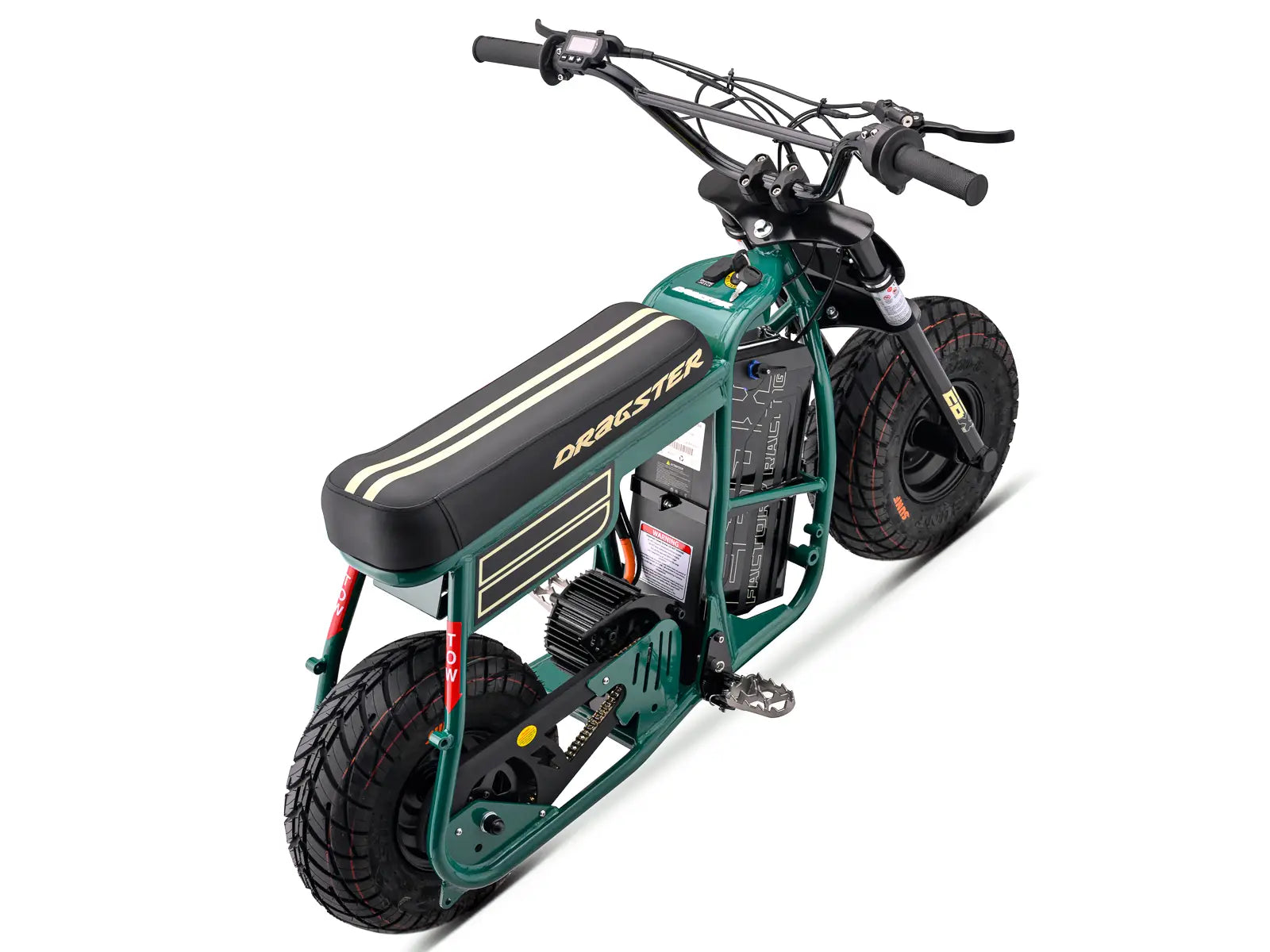

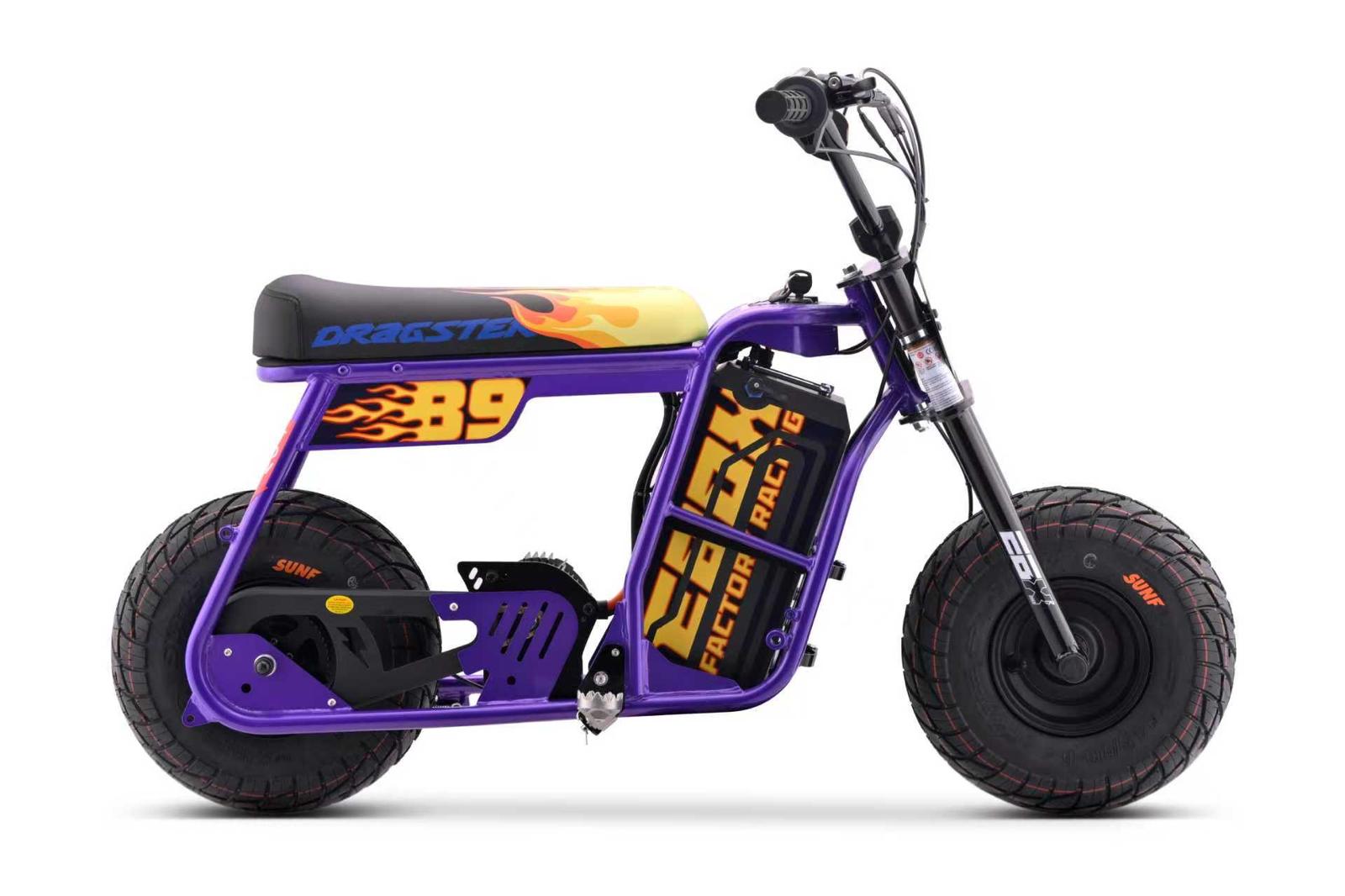

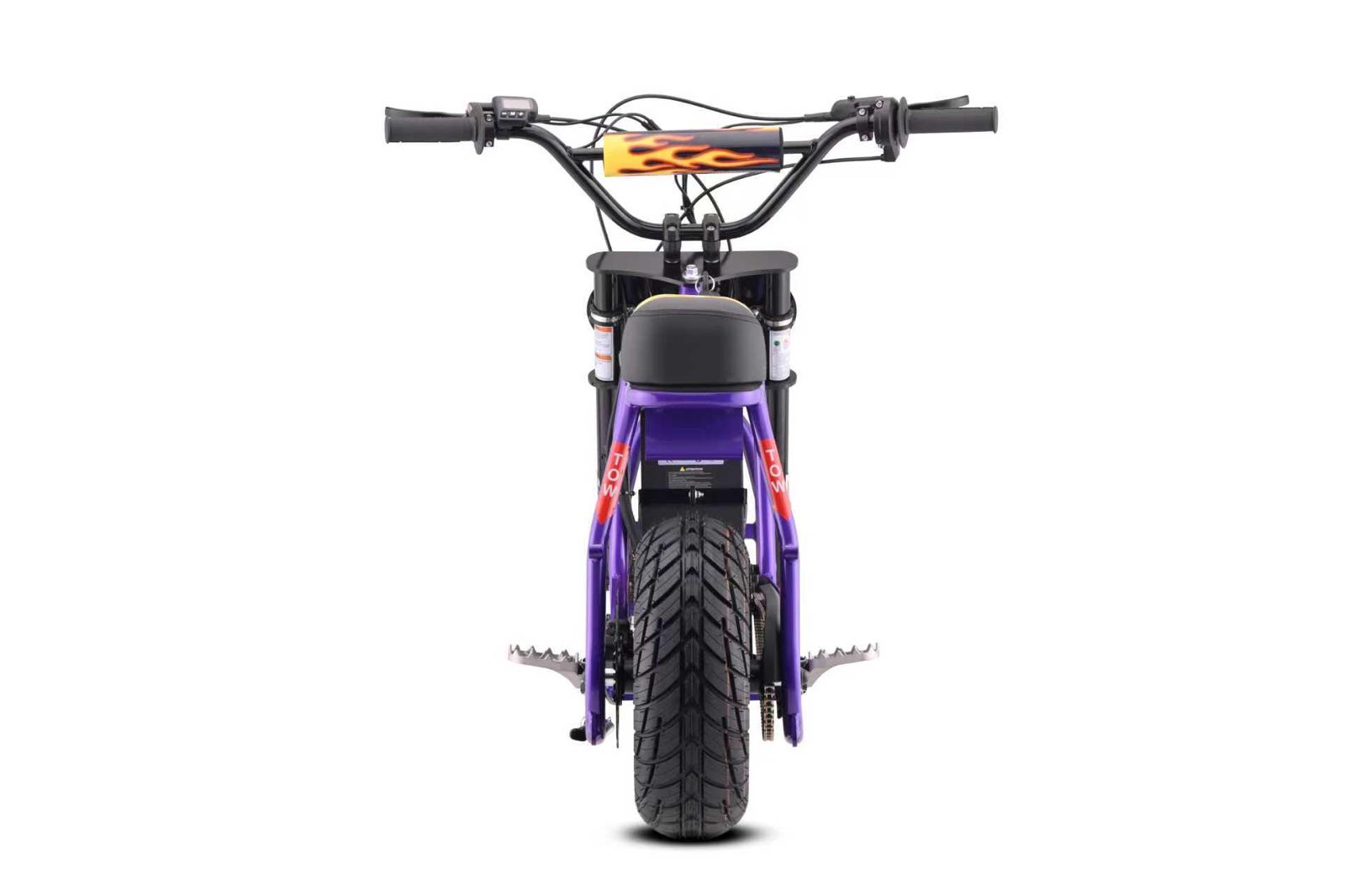

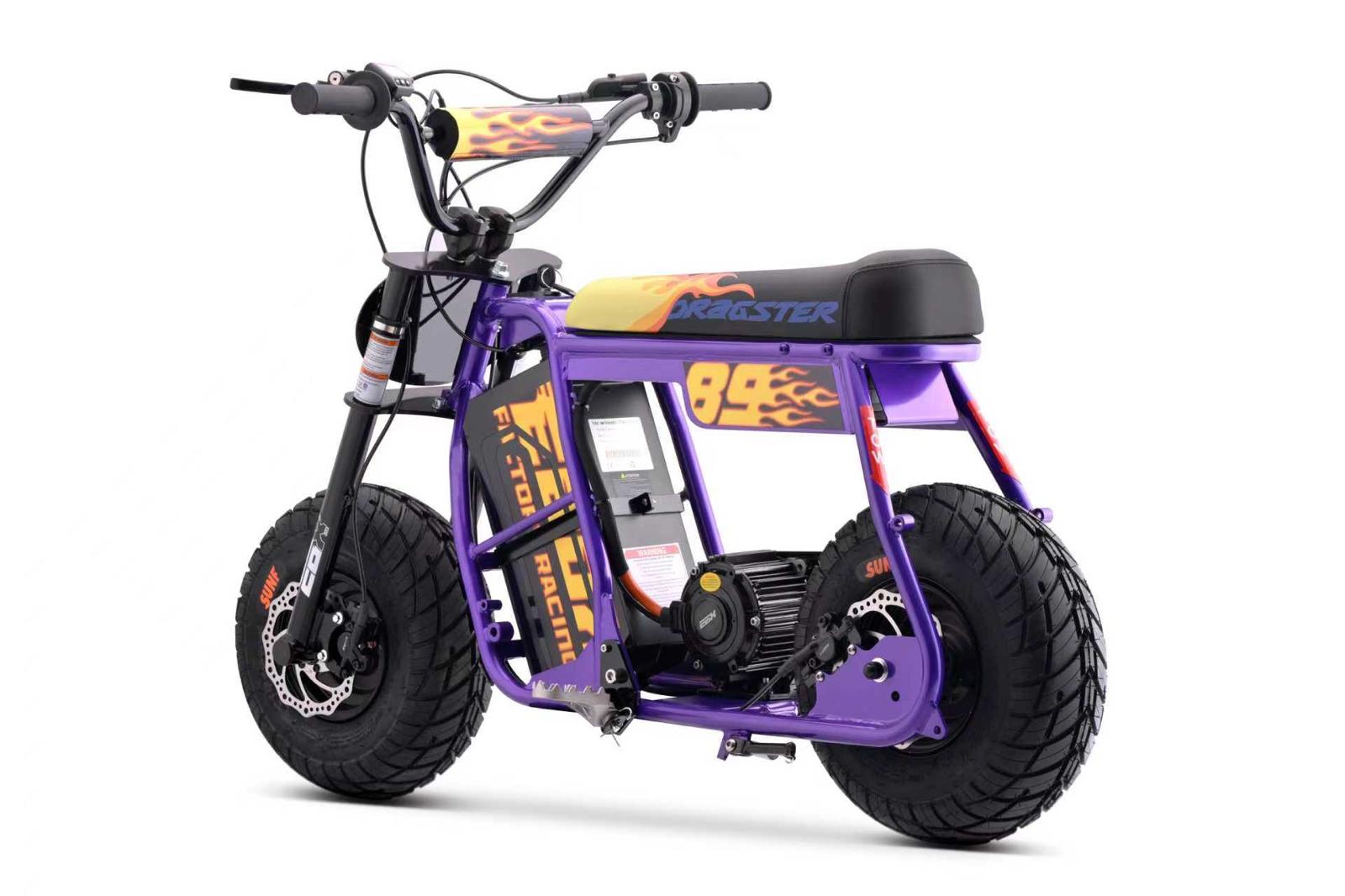

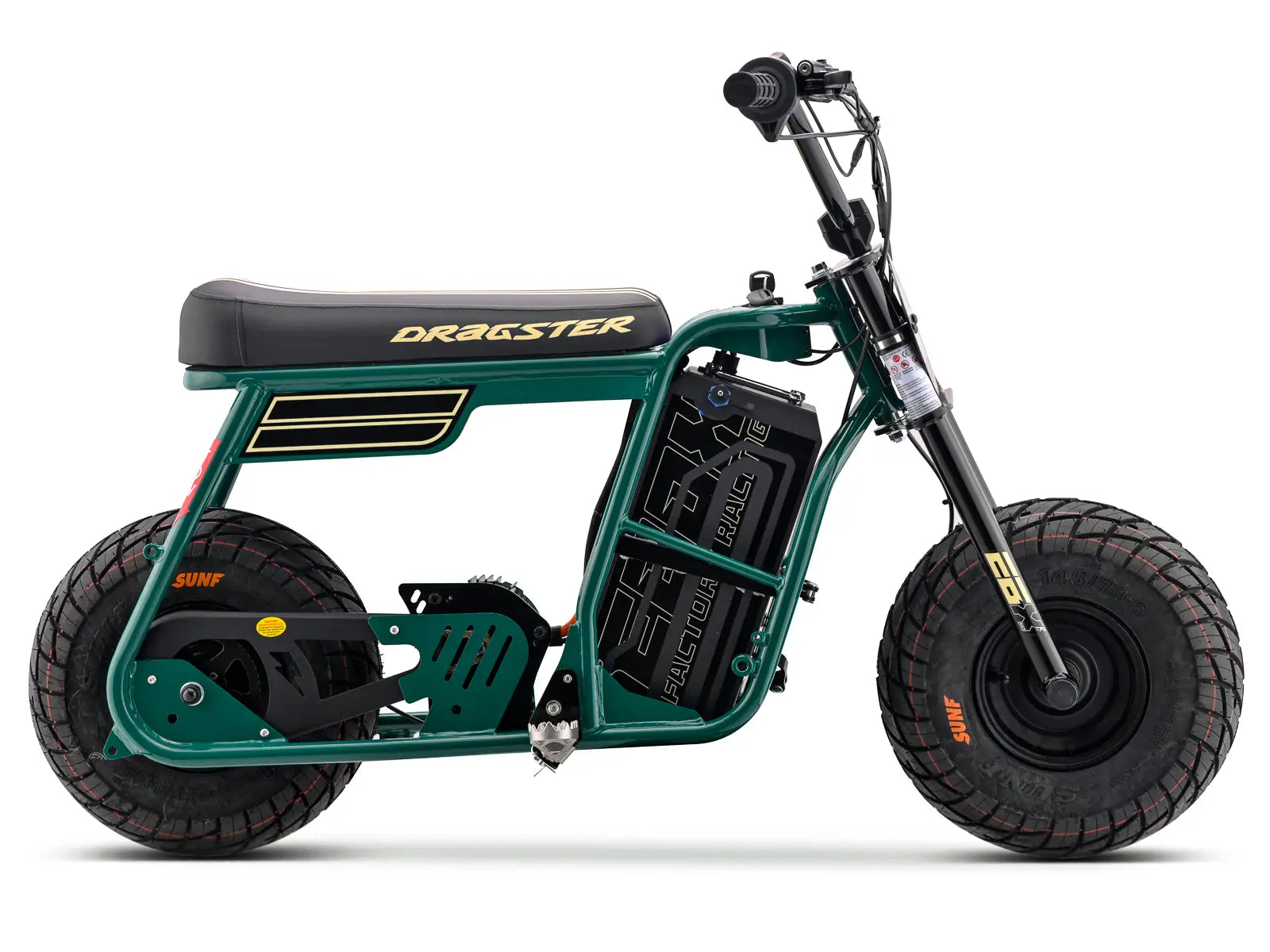

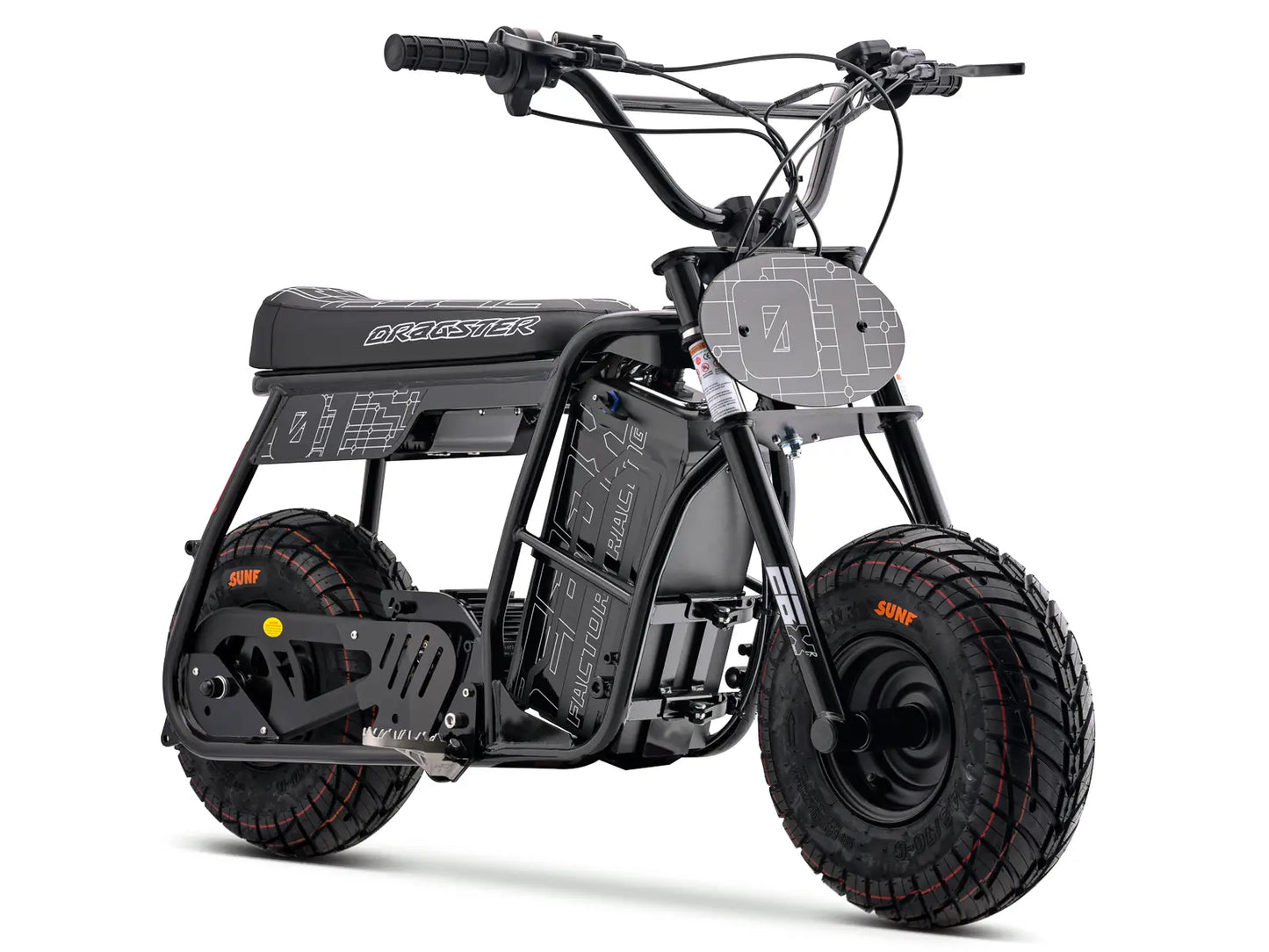

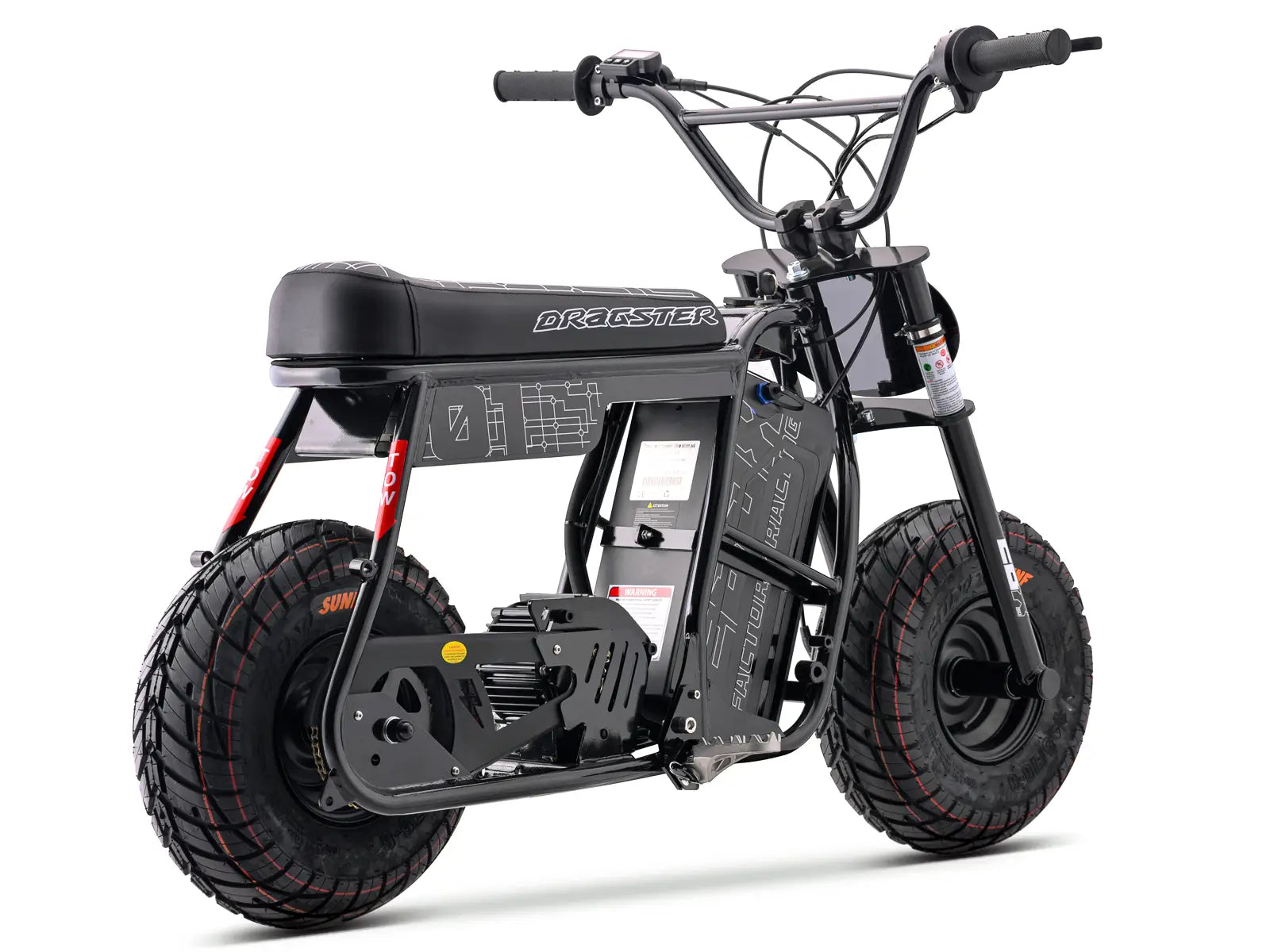

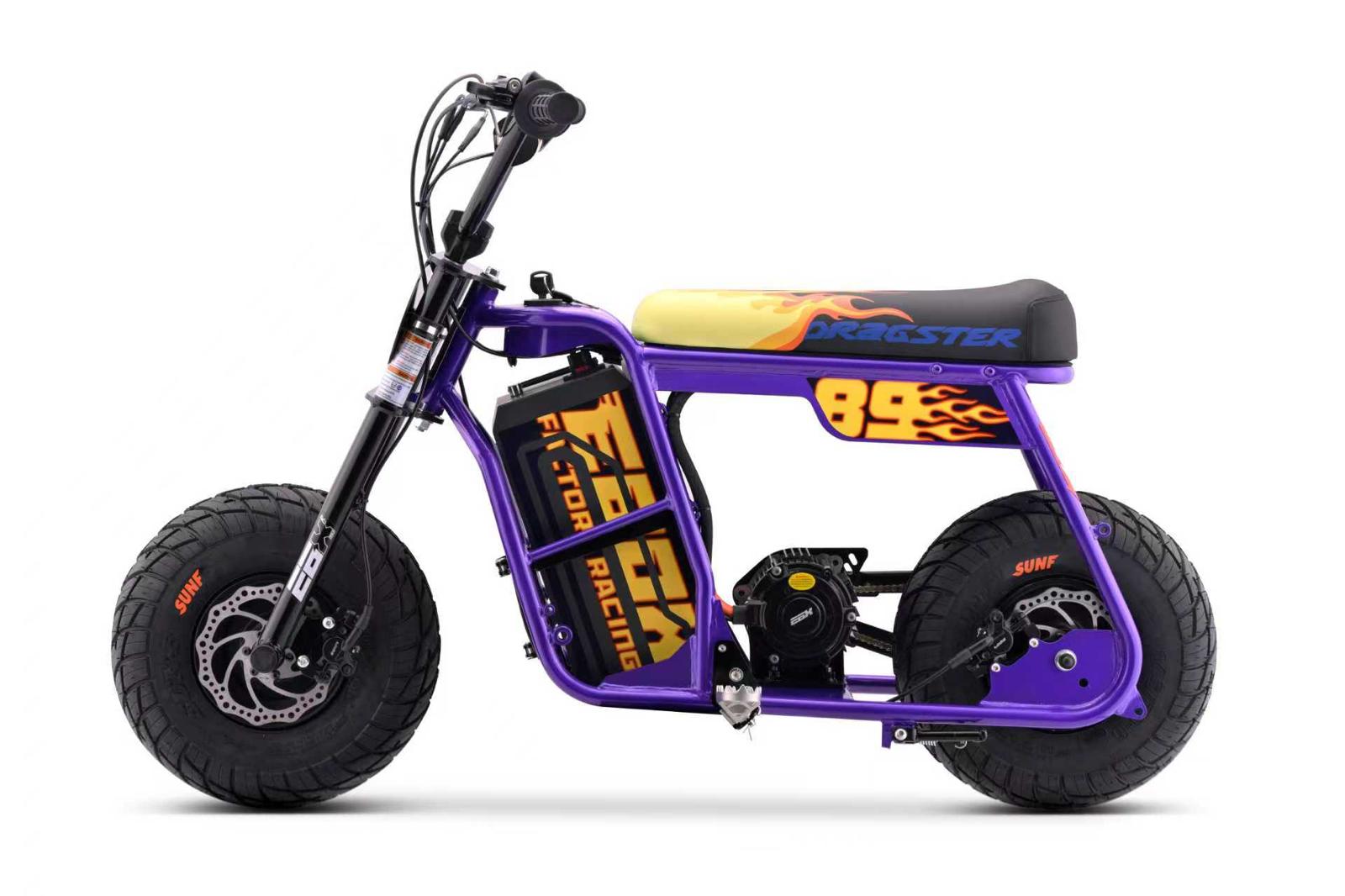

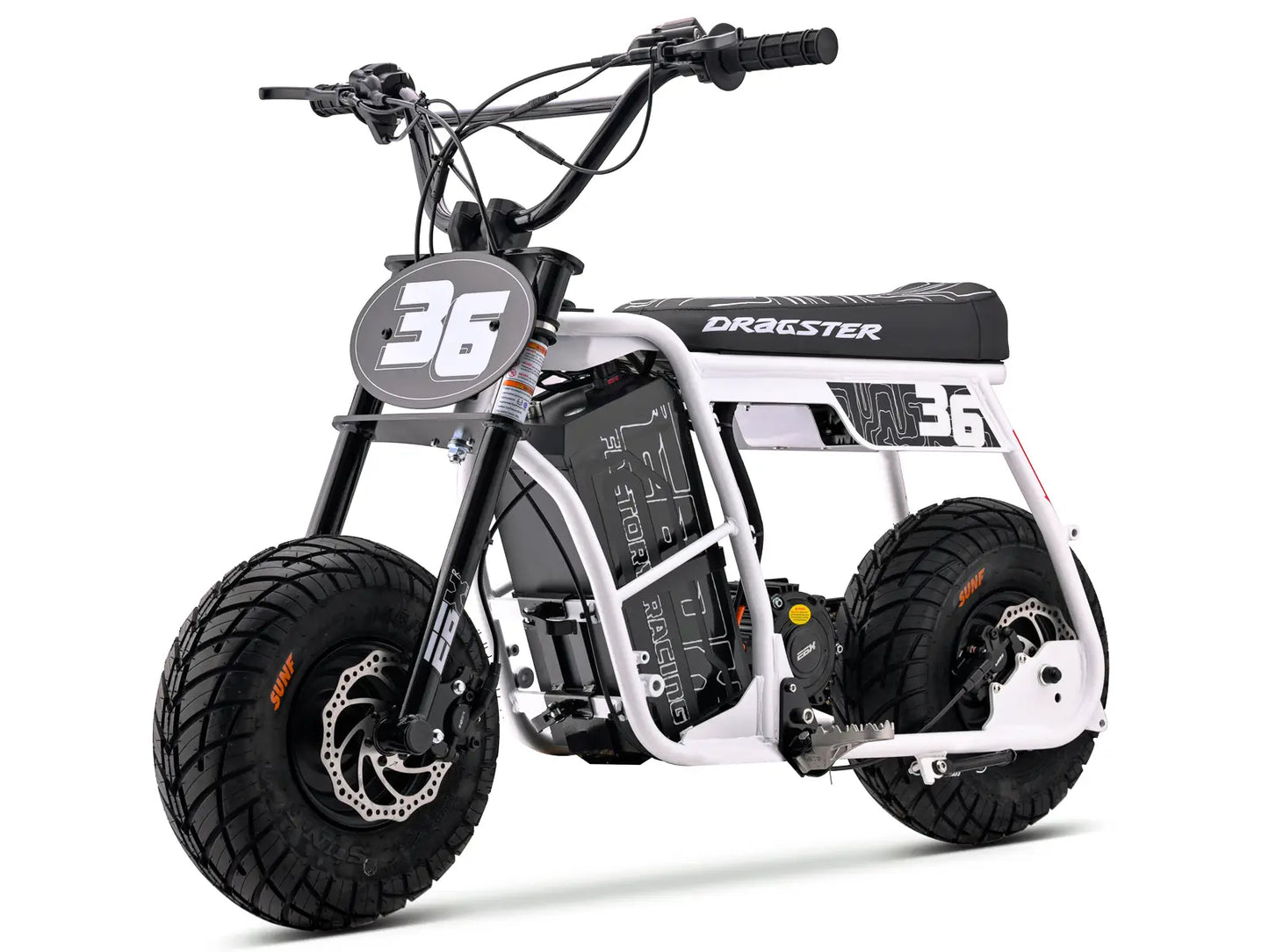

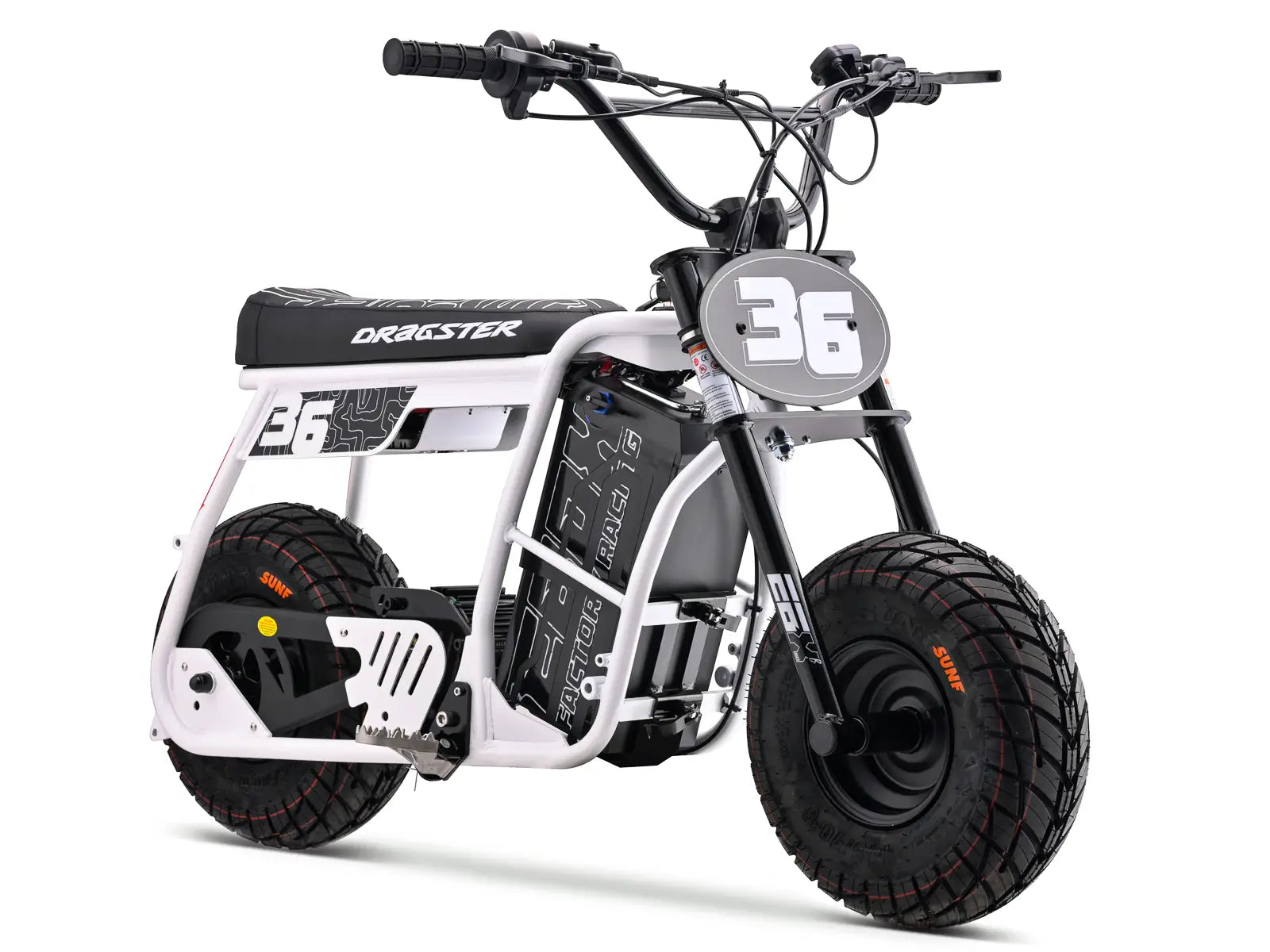

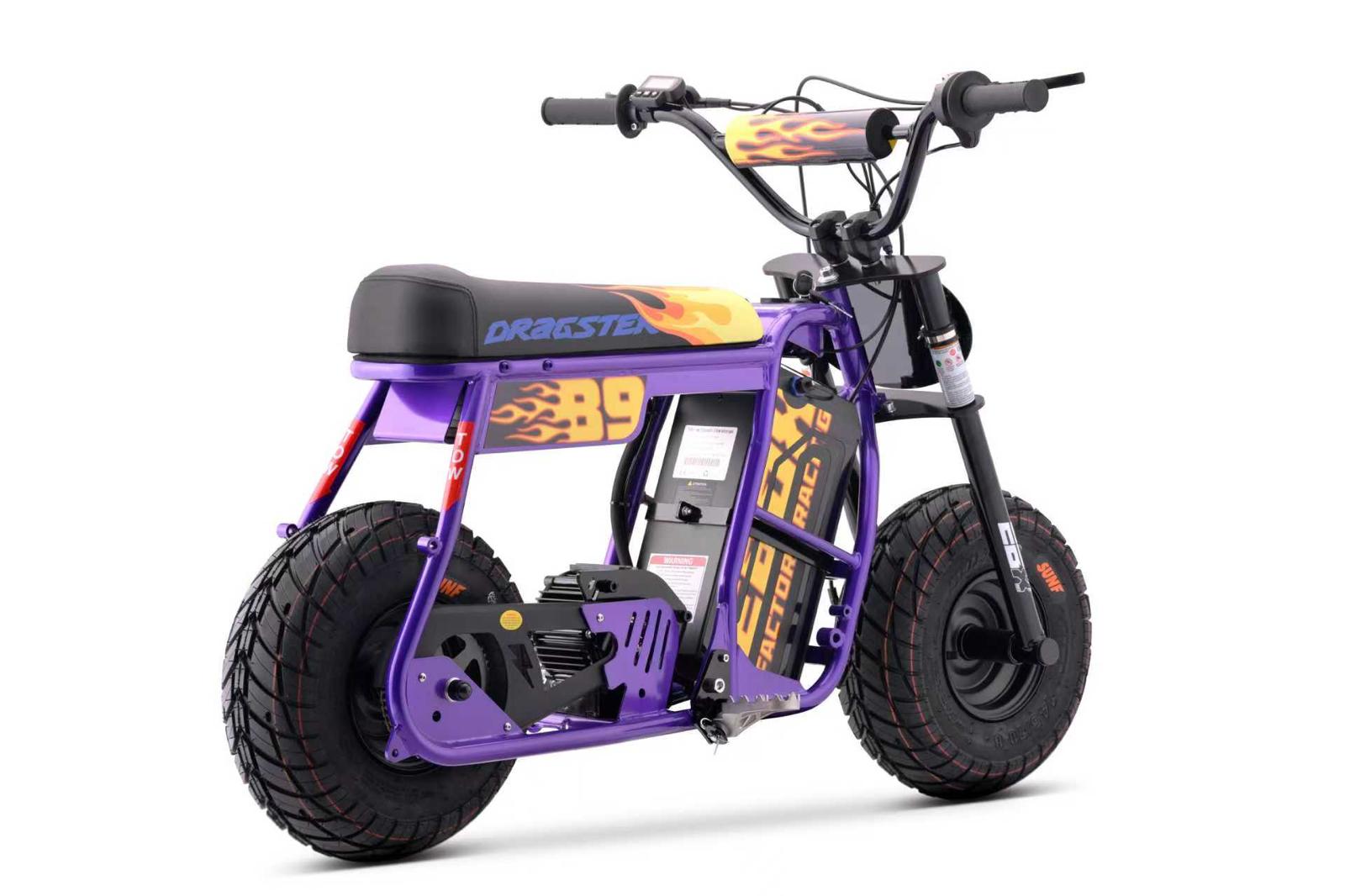

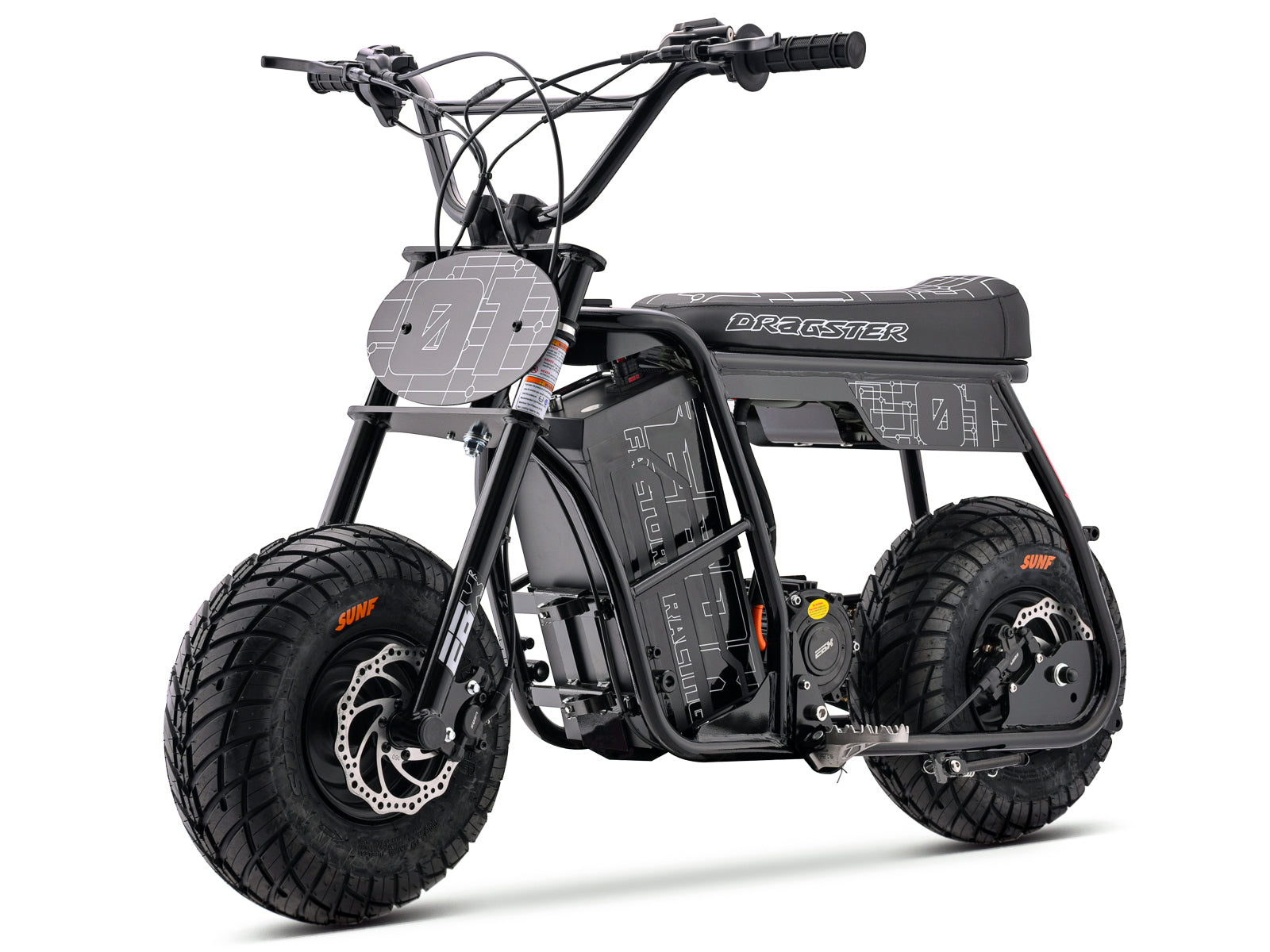

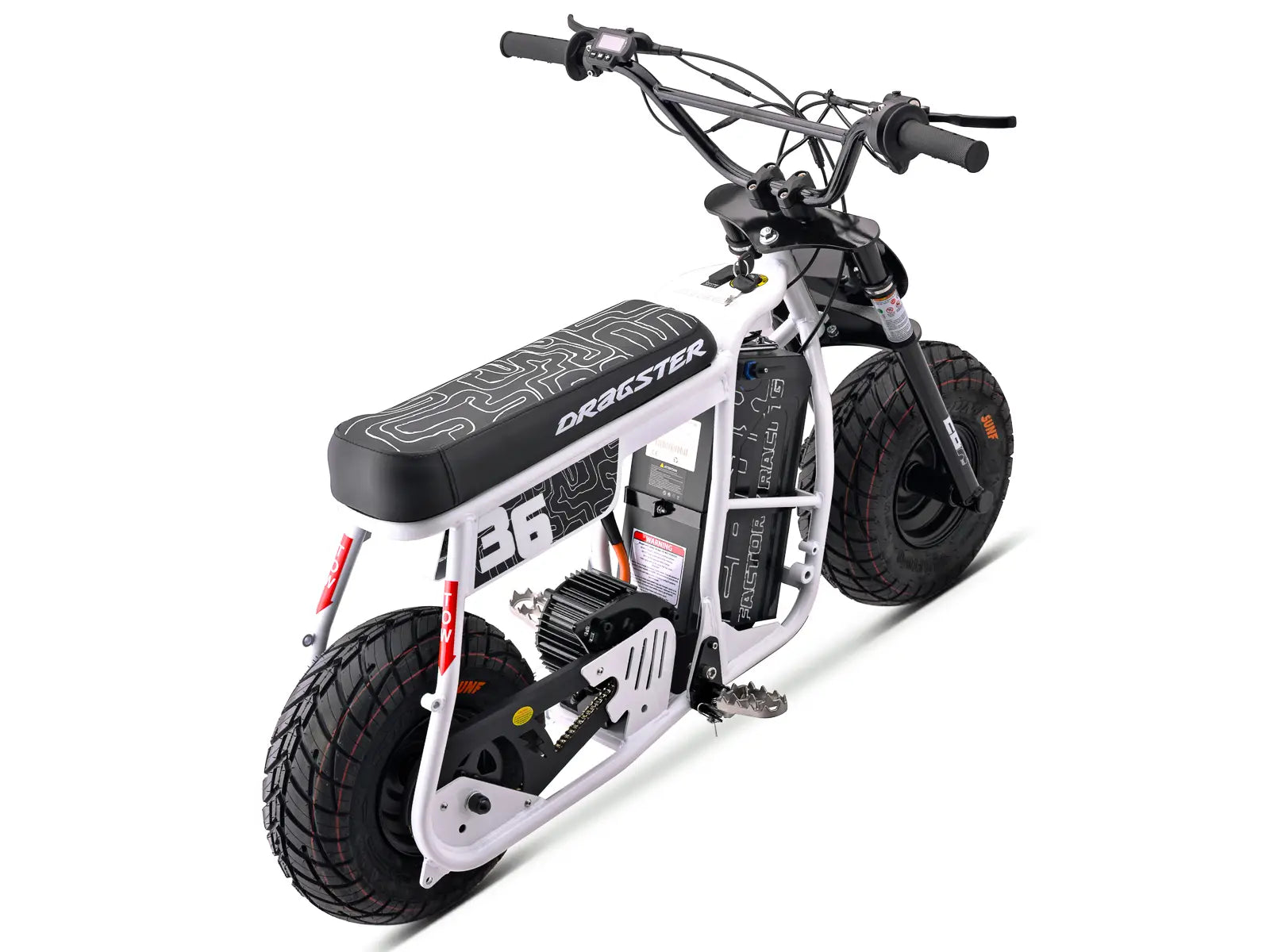

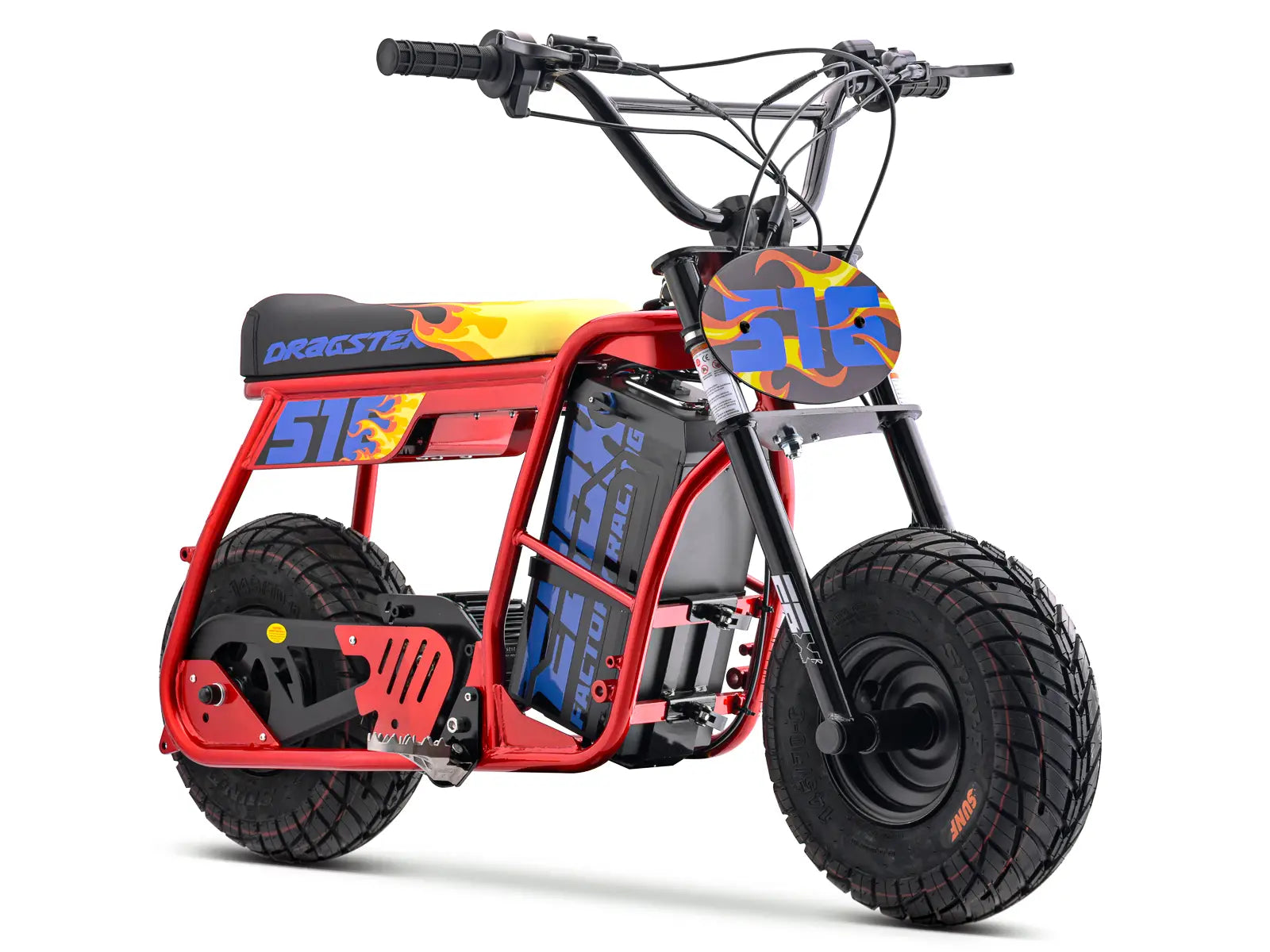

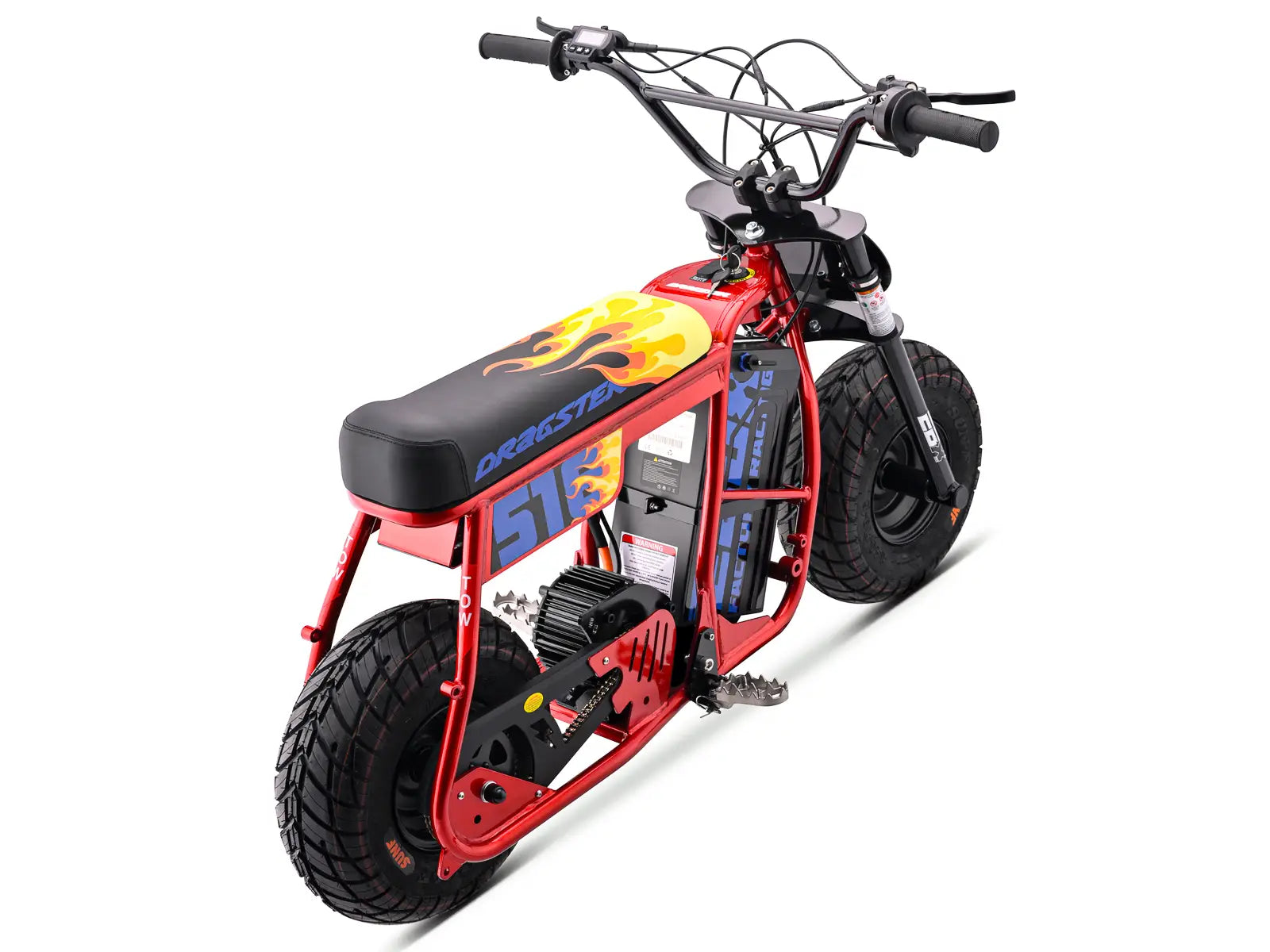

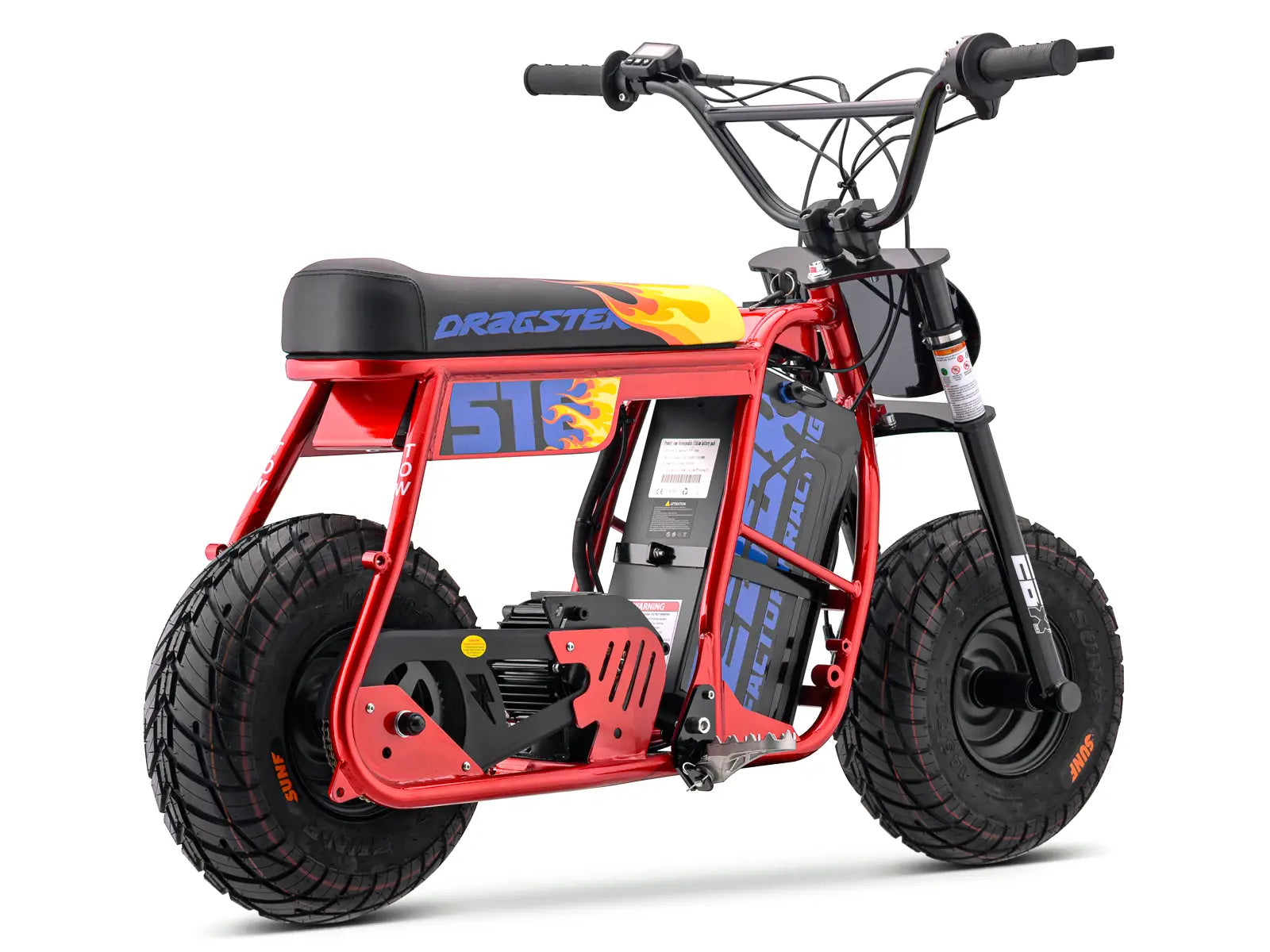

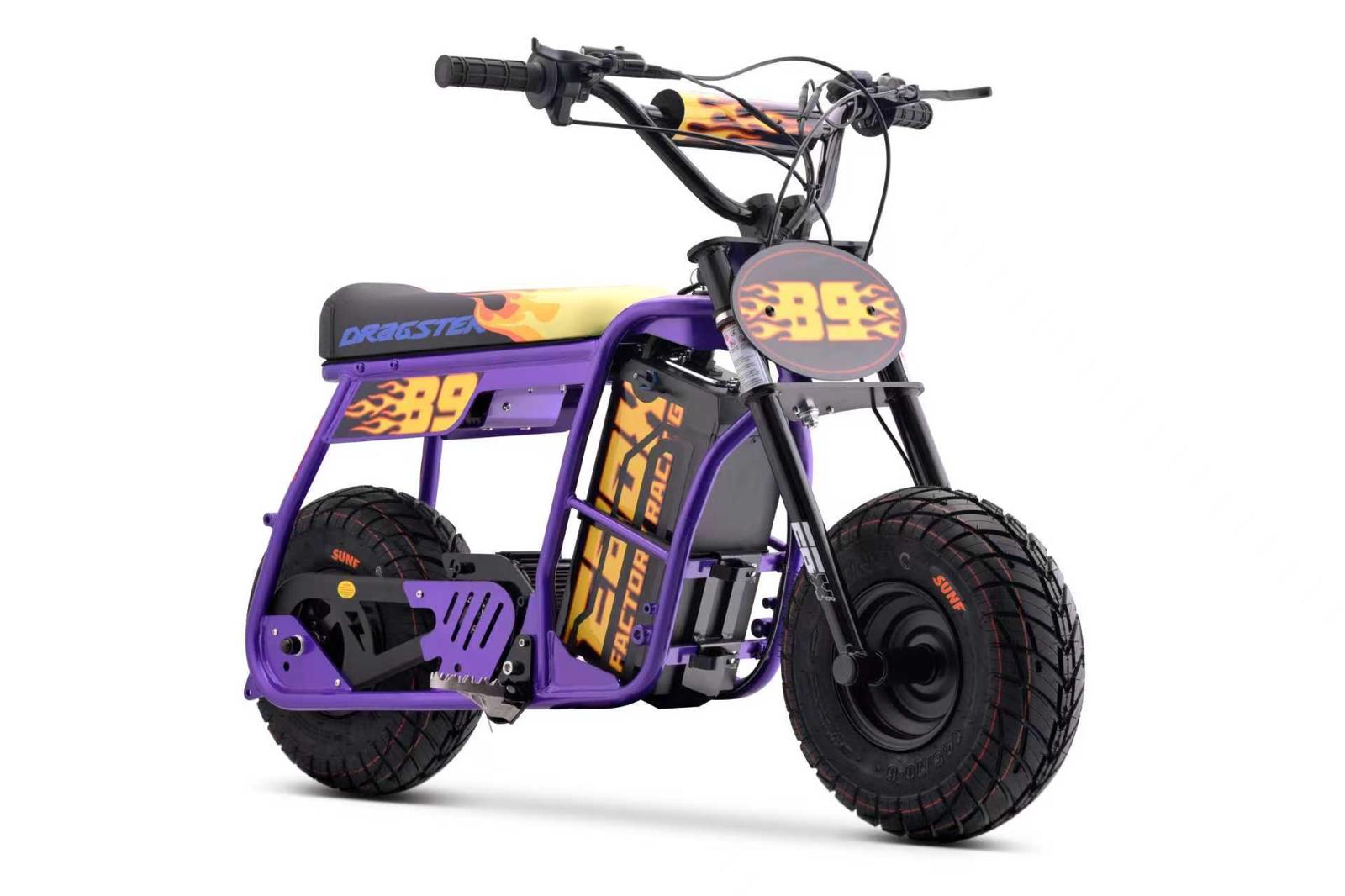

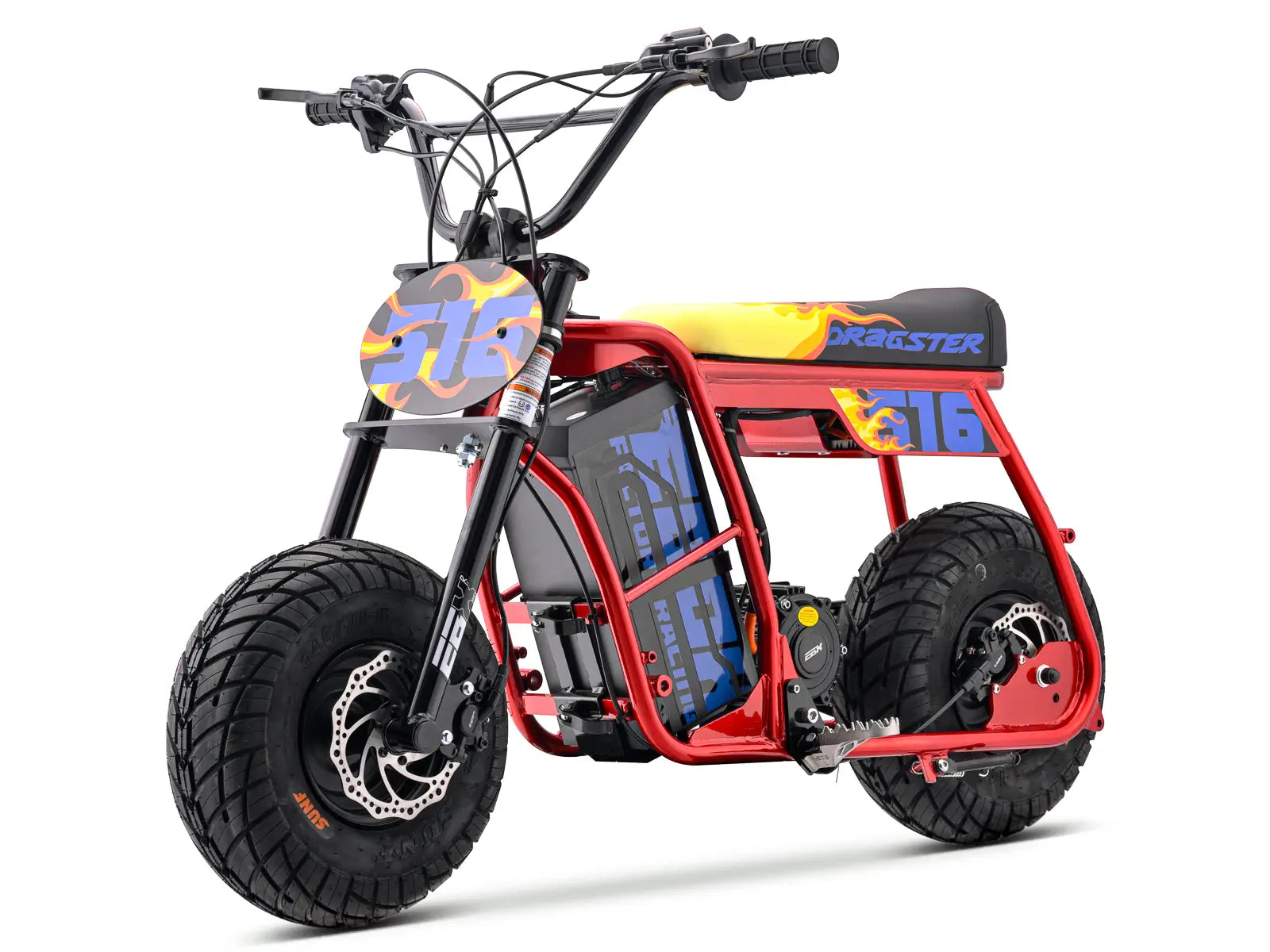

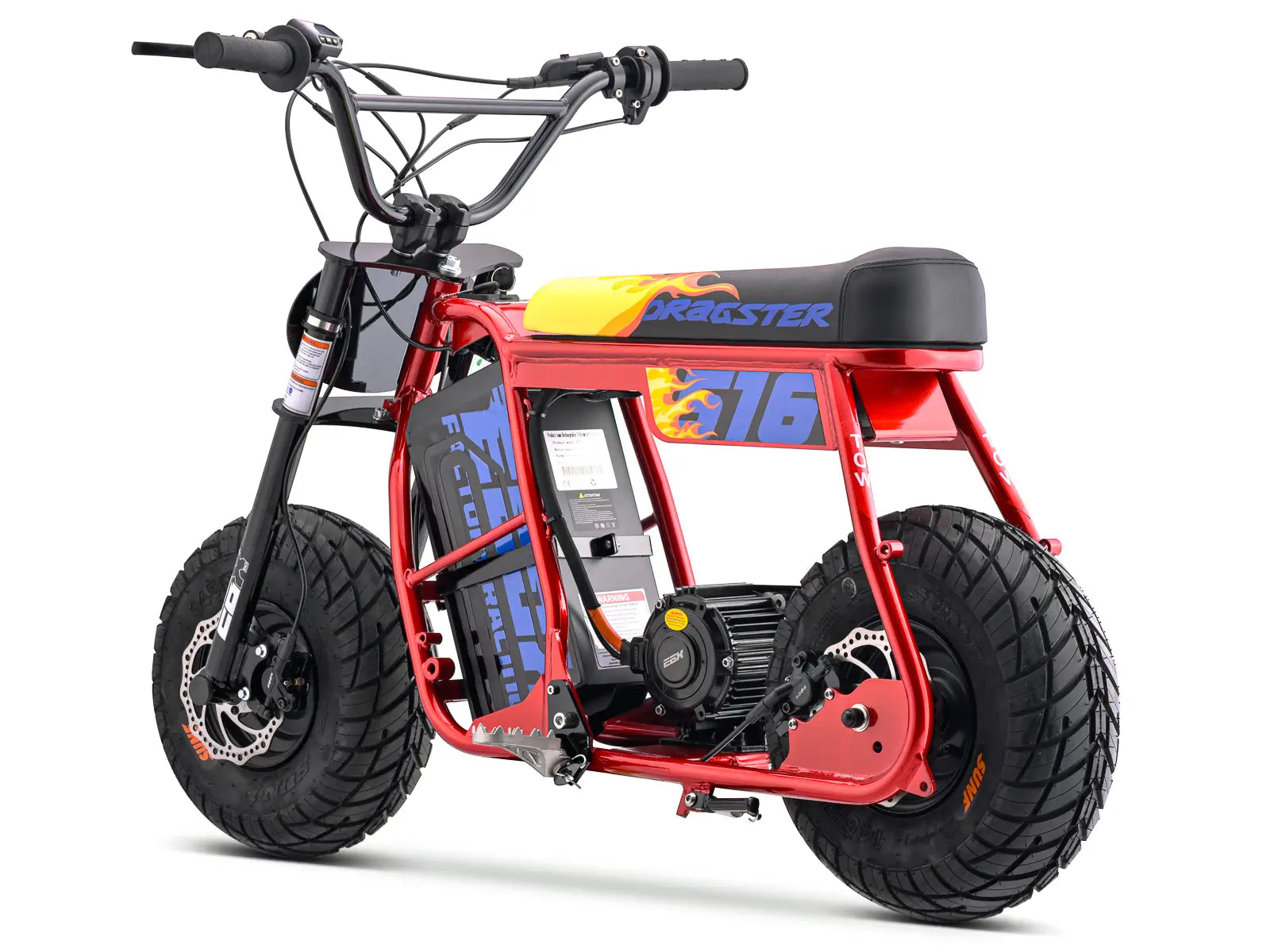

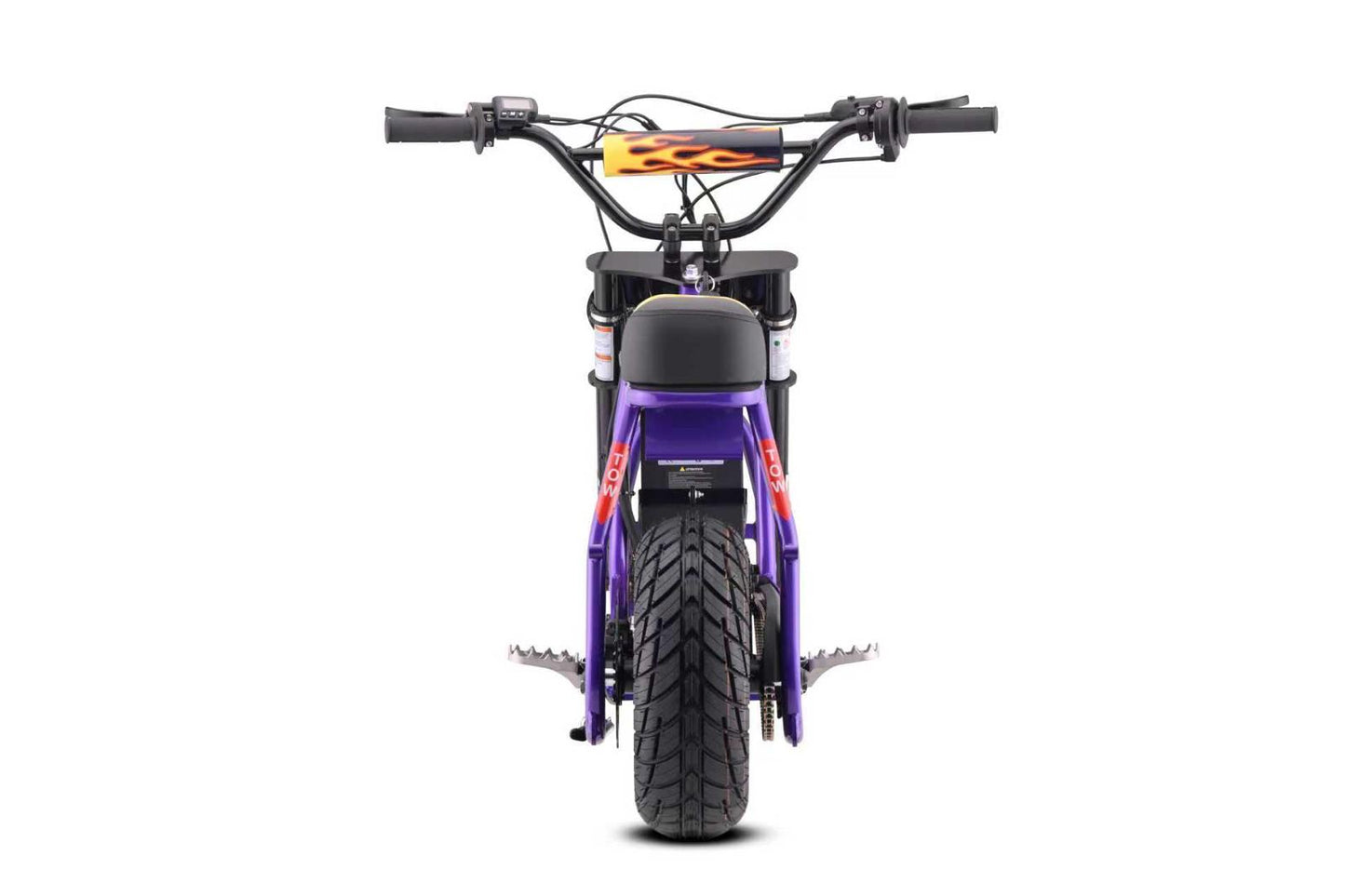

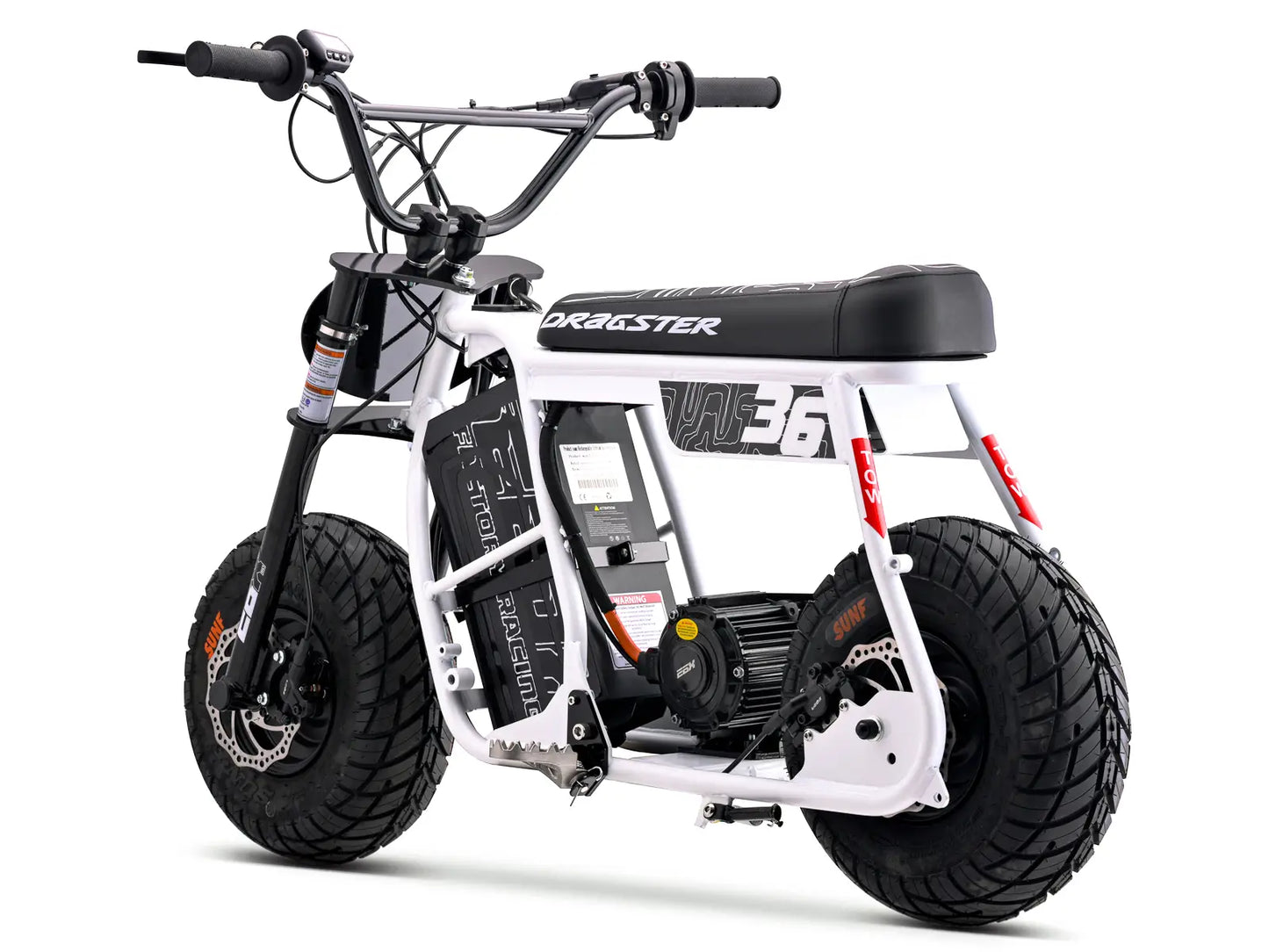

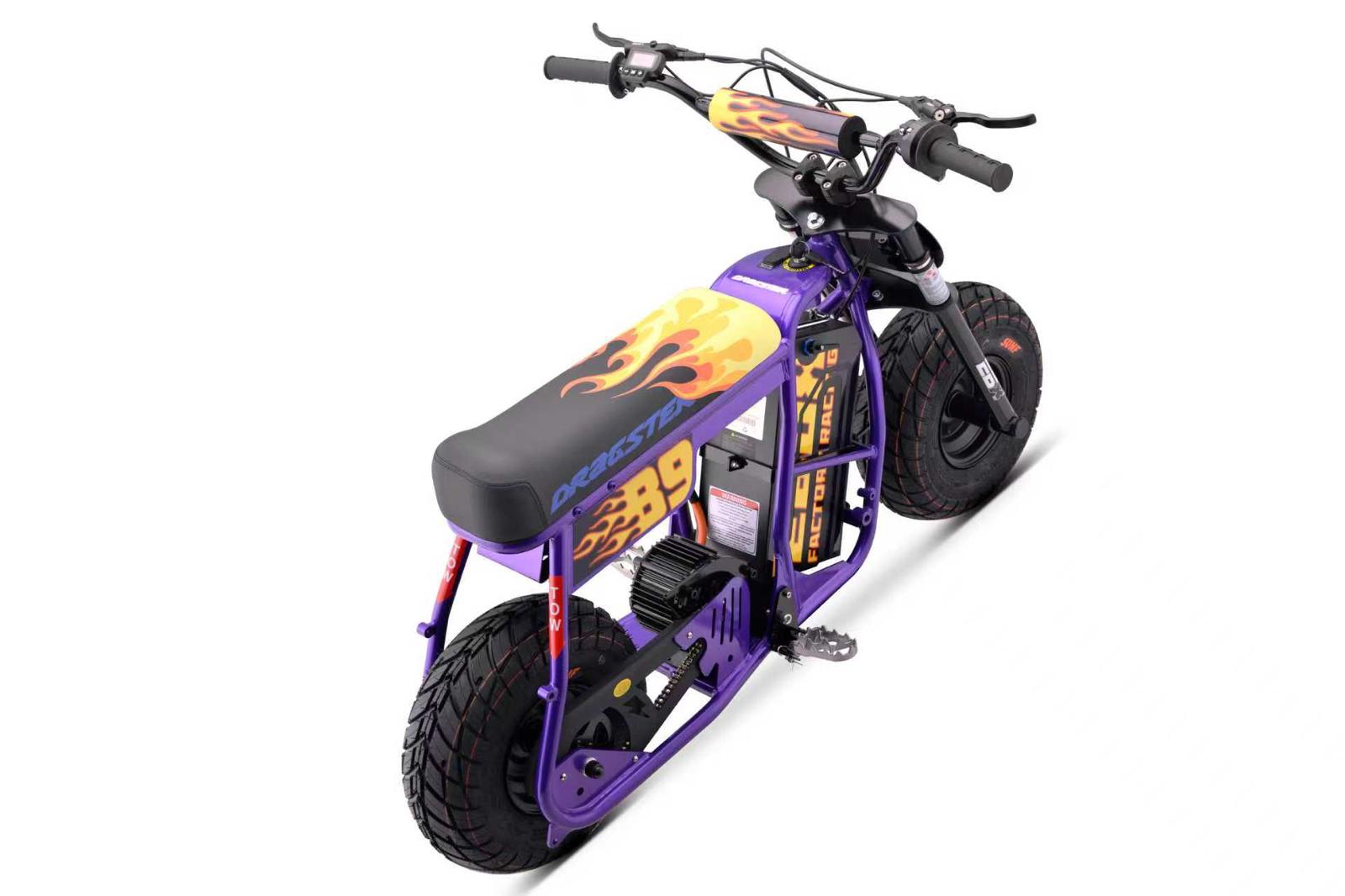

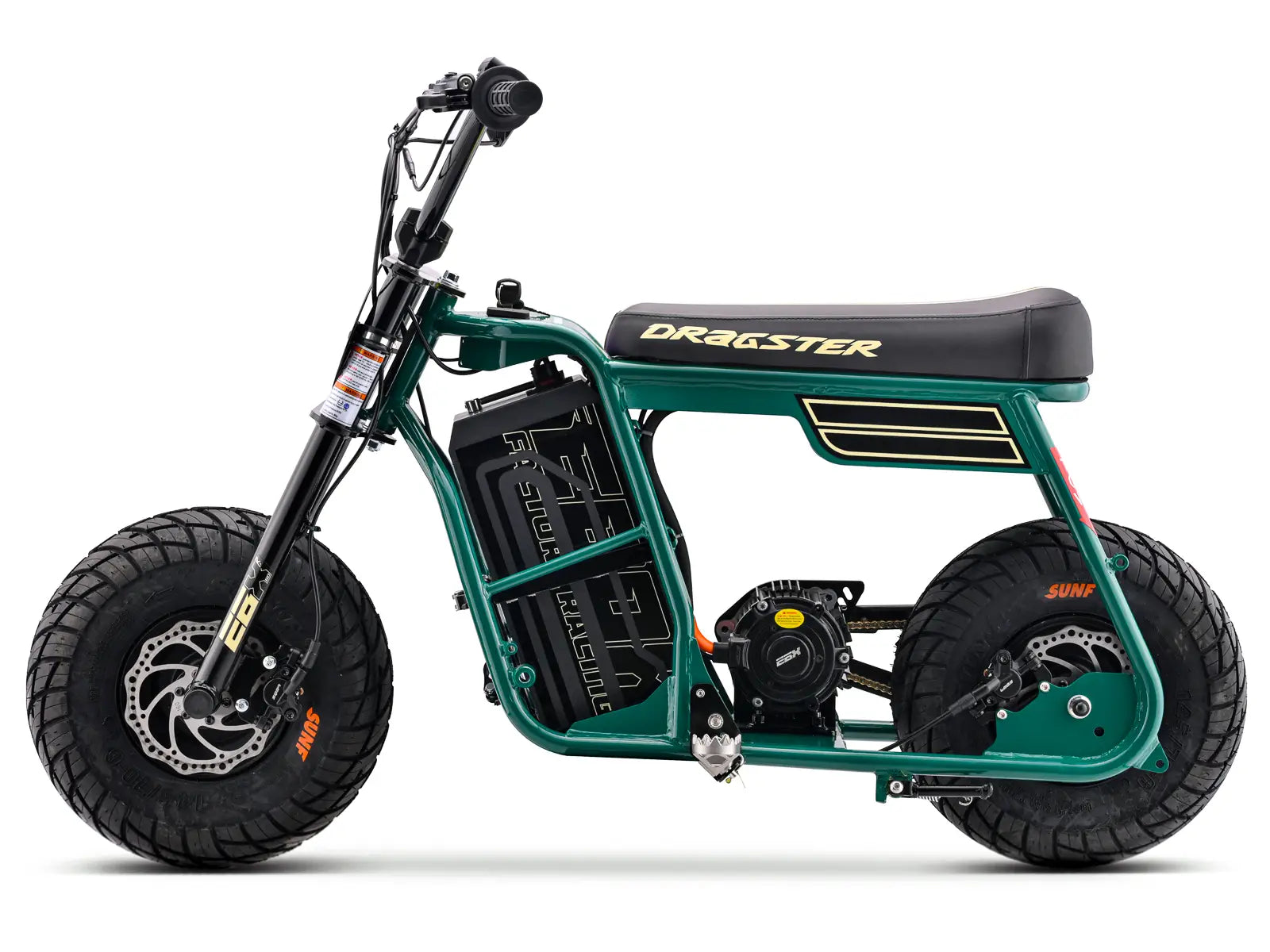

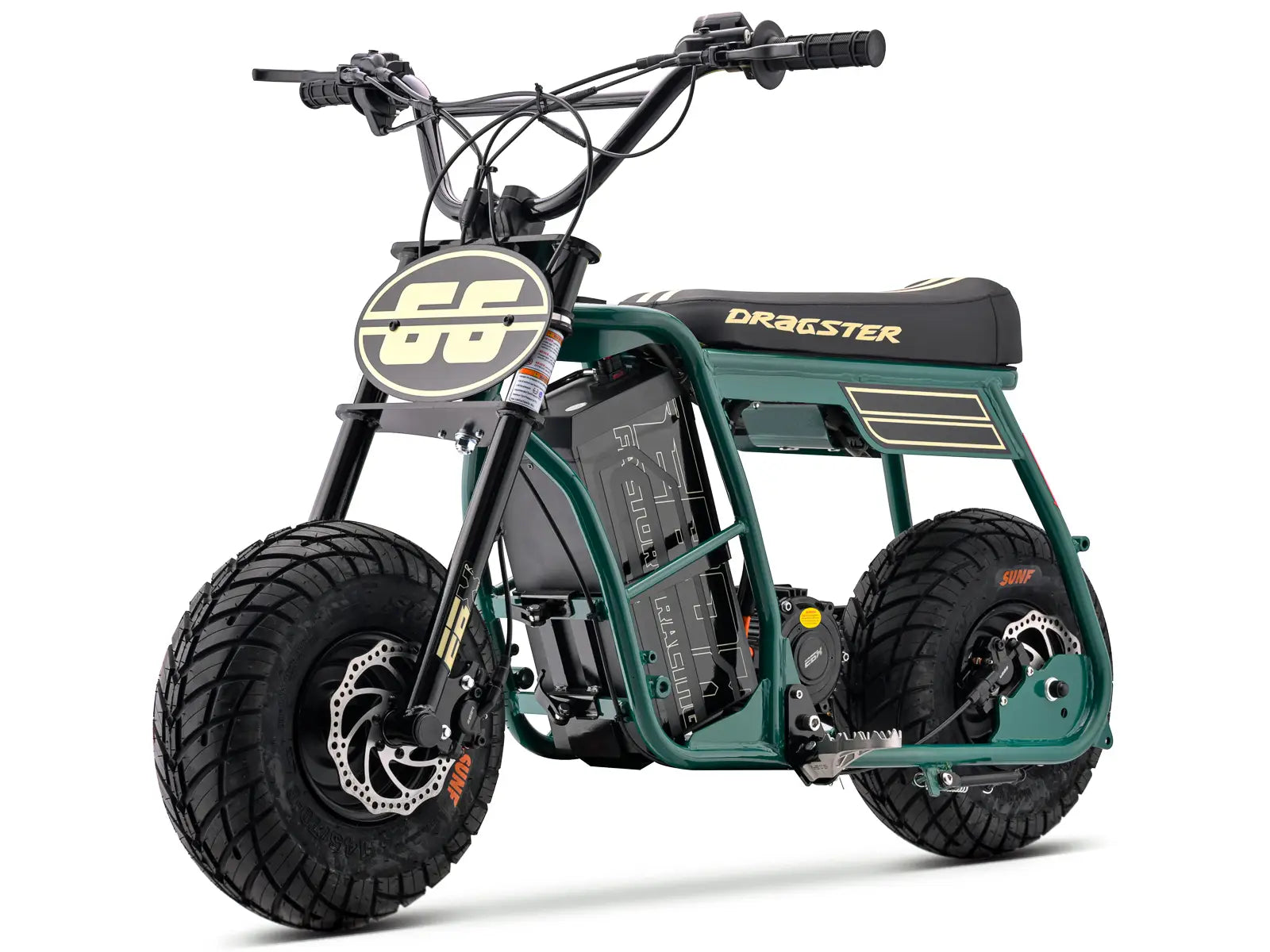

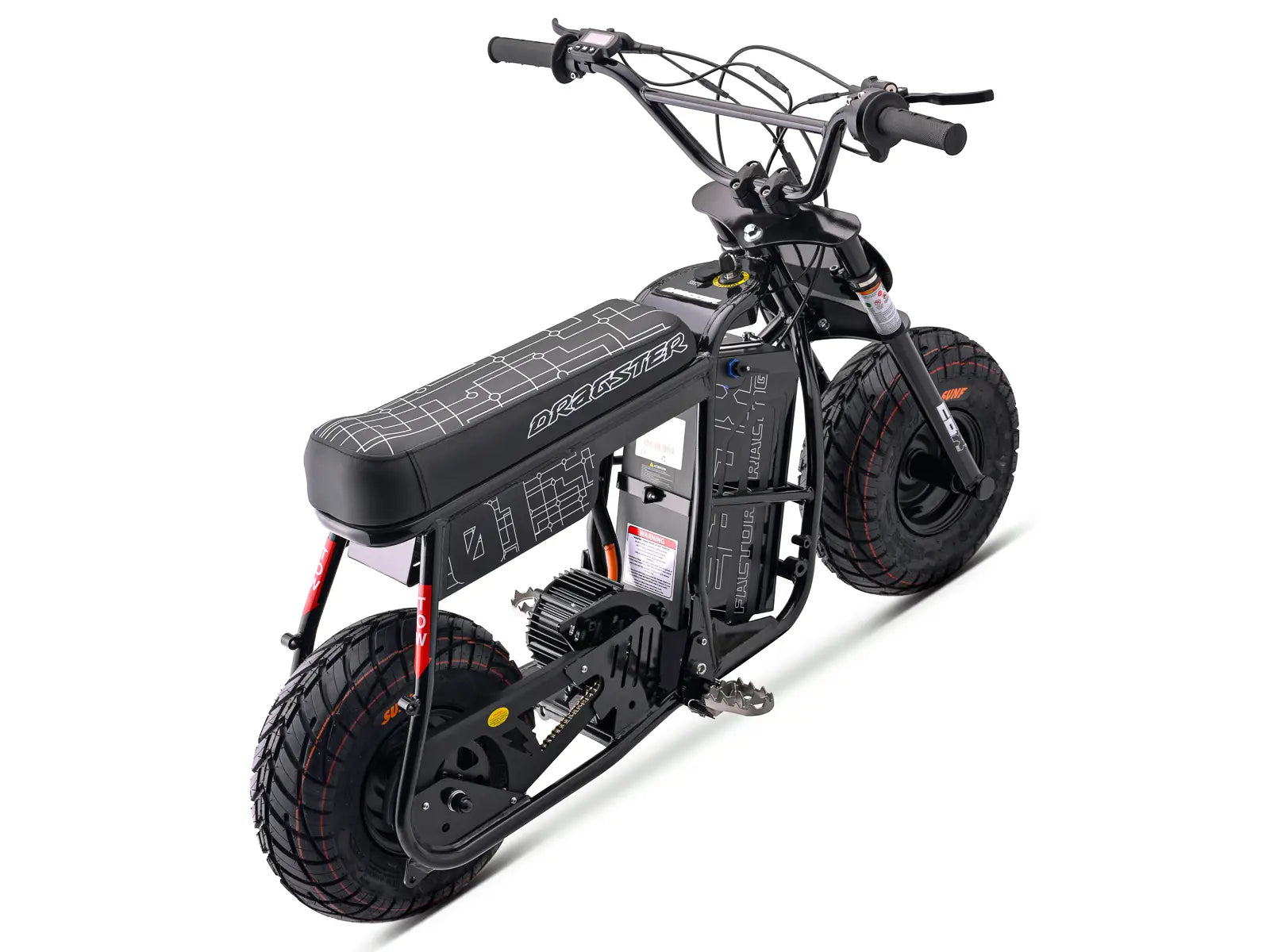

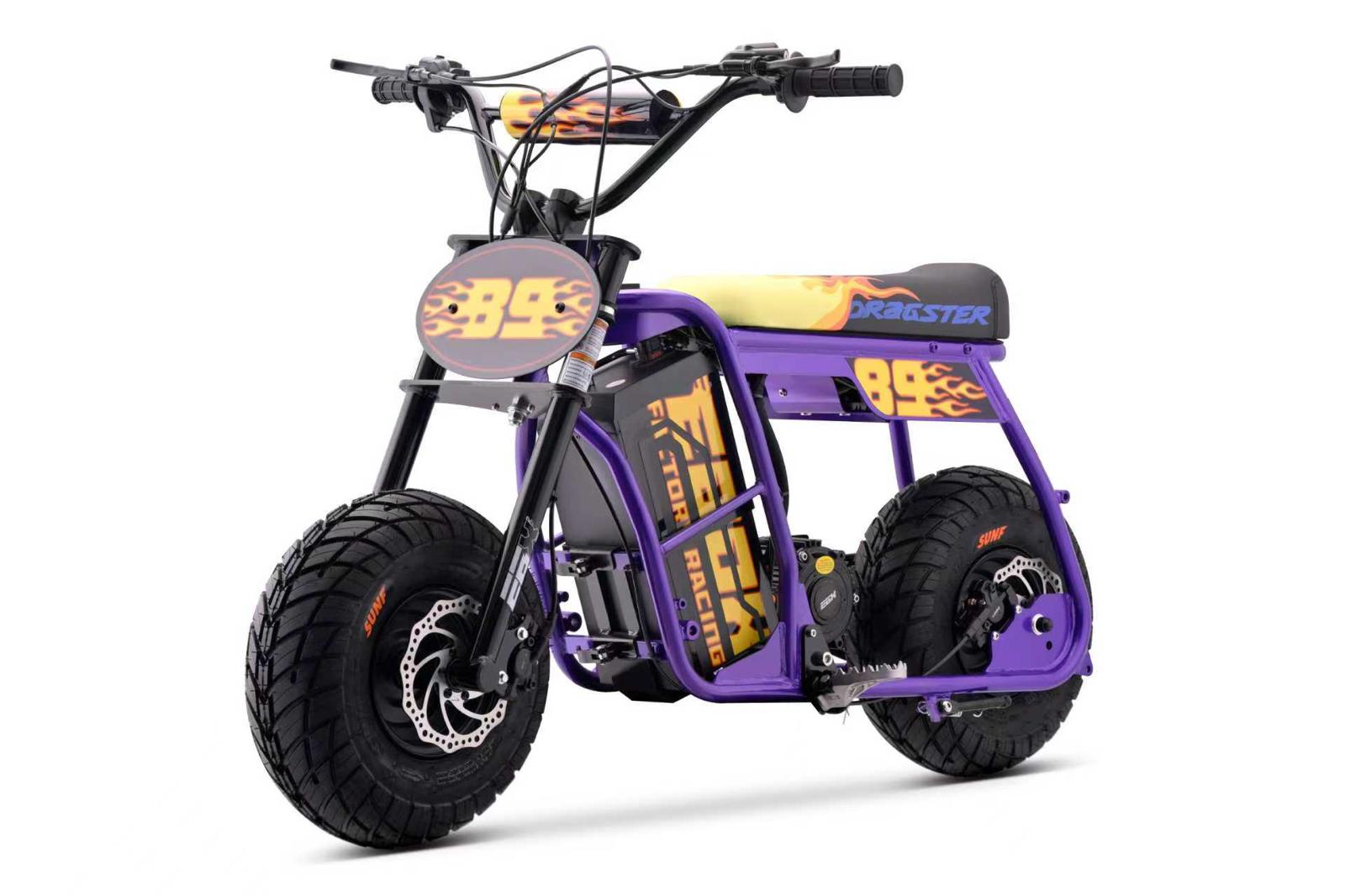

THE EBX Dragster is FINALLY HERE! In a world full of limp, slow, plastic failures, comes a truly HARDCORE electric minibike with more steeze than should be legal in such a miniature package.
Featuring insane top speeds of up to 55 mph, the EBX is now delivered with a SERIOUS safety warning: Do Not Ride if You are Easily Frightened.
Choose from 3 ballistic powertrains and multiple mind-blowing colourways. Fully re-engineered and reconsidered with a temperature protected PMSM encoder motor, 80 Amp Fardriver controller, bigger batteries, bigger brakes and 3-mode smart TFT colour display.
Other exciting features are available such as bronze inverted suspension forks, an integrated LED headlight and luxury suede printed seats. The EBX range firmly cements the Dragster as the “Ultimate Wheelie Weapon” and King of the streets.
| Frame Design |
Full duplex, High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible. |
|---|---|
| Bar Risers |
Cast alloy 36mm rise Ø22.2 |
| Handlebar |
2 piece 29.5" x7" |
| Front Suspension |
Rigid forks |
| Wheel Size |
6/6 |
| Tyres |
145/70-6 SUNF fast SM tyres |
| Front Brake |
Hyraulic Disc (Right lever) e-moto brakes, Wavey rotor 160mm, 6 bolt 48mm BCD |
| Rear Brake |
Hyraulic Disc (Left lever) e-moto brakes, Wavey rotor 160mm, 6 bolt 48mm BCD |
| Gearing |
Front 10T, Rear 55T |
| Chain |
219H 108L |
| Motor |
60V EBX PMSM motor with temp feedback and encoder |
| Motor Voltage |
60V |
| Peak Power |
5.2KW (6.7hp) |
| Rated Power |
4.5KW |
| Max RPM |
8,500 |
| Battery |
New 60v 26 Ah battery with smart BMS 18,600 Cells potted in steel case with QS8 connector and air breaker switch |
| Controller |
80 Amp fardriver controller |
| Throttle |
SURRON style full twist |
| Display |
TFT odometer display with 3 speed modes and fault code analysis software |
| Connectors |
Automotive connectors with sealed wiring harness |
| Charger |
AC 100-240V, Output: 67.2V, 5A |
| Charge Time |
4-5 hours |
| Range Per Charge |
25-28 miles (40-45Km) |
| External Adjustability |
3 riding modes |
| Top Speed |
53mph (85Km/h) |
| Waterproof |
IP54 |
| Other |
USB A + C charging ports |
| Wheelbase |
882mm |
| Ground Clearance |
120mm |
| Seat Height |
585mm |
| Built to Race |
B2R |
| Warranty |
EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty |
Shipping
Shipping
Due to the nature of our assembled bikes, shipping is conducted either via our in-house driver or 3rd party service, depending on the destination and the nature of the product. This ensures your bike arrives in optimal condition and ready to ride.
We will aim to ship your bike within 1 week if the item is in stock in our store.
We will contact you once your bike is ready to be delivered to ensure you are available to receive your new bike.
a bike like no other
-
POWER AT YOUR FINGERTIPS
The Ebox Dragster gives you control when you need it most. View your battery level, adjust your Dragsters top speed and acceleration levels and even charge your phone all on the fly!
-
IMPROVED THROTTLE
The newest Ebox Dragster V3 models feature an all new Sur Ron style throttle for a better throttle curve and smoother response.
An ideal upgrade for a wheelie machine like the Dragster!
-
BORN TO WHEELIE!
The low riding style of the Ebox Dragster means it was born to wheelie. Add the EBOX Wheelie Bar to it and you've got a bike that's as comfortable on one wheel as it is on two.
The Ebox Dragster can also be upgraded with coloured stunt pegs and if you're looking for more power then the Electro & Co. ETM Kit & Megalith 72V Battery are both compatible - pushing your acceleration and speed to the next level!
