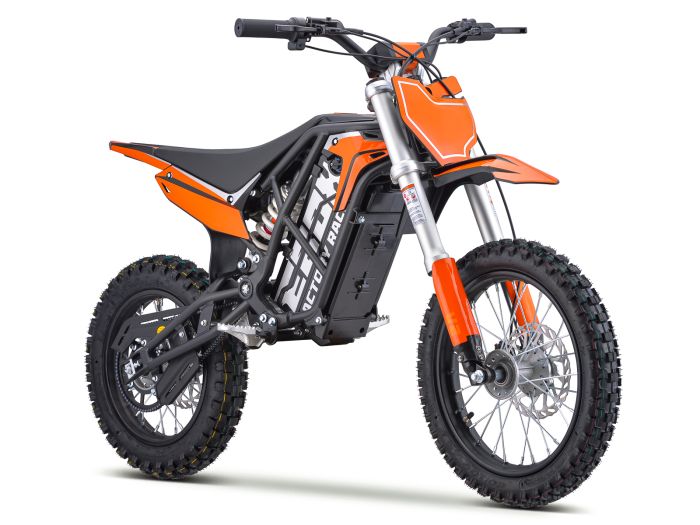

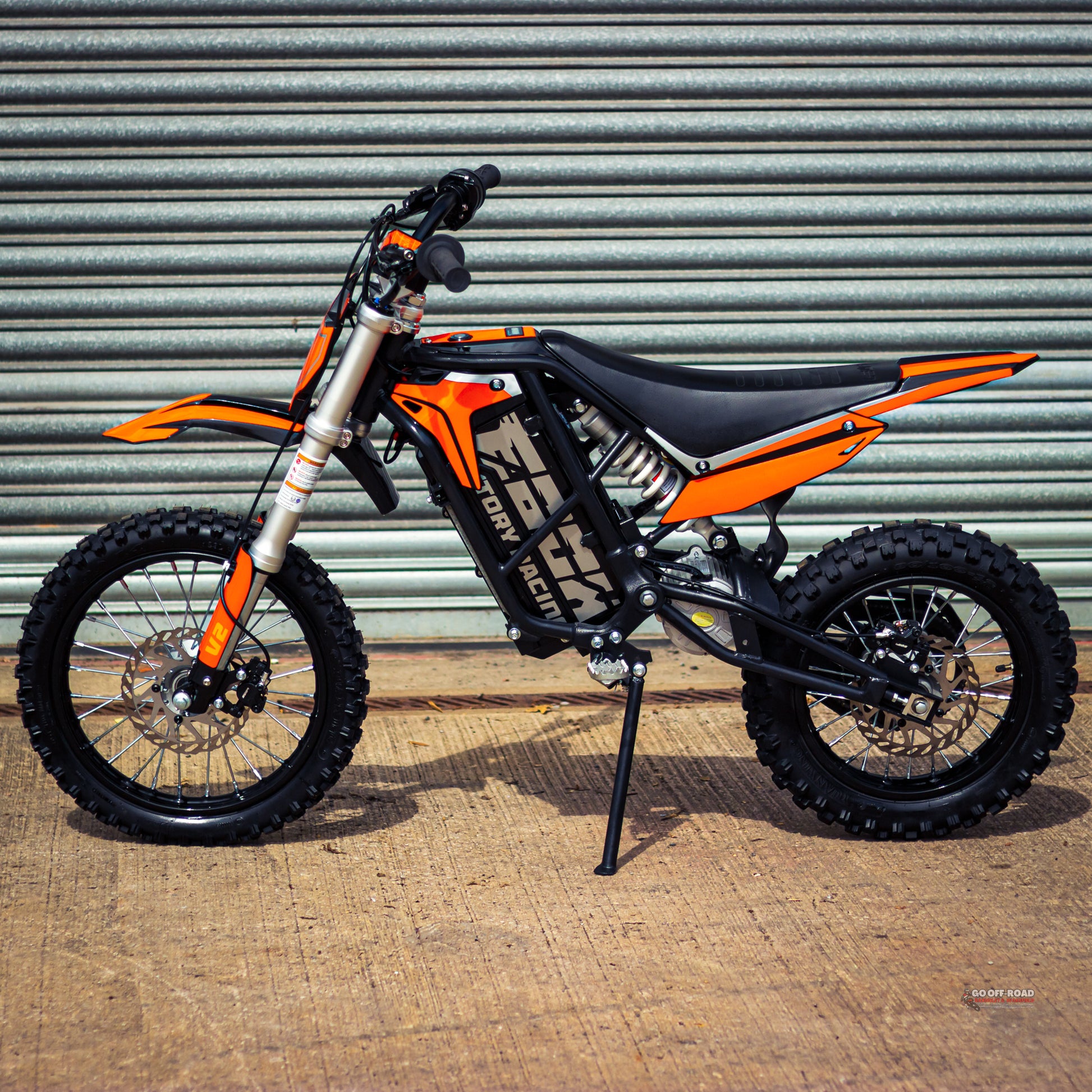

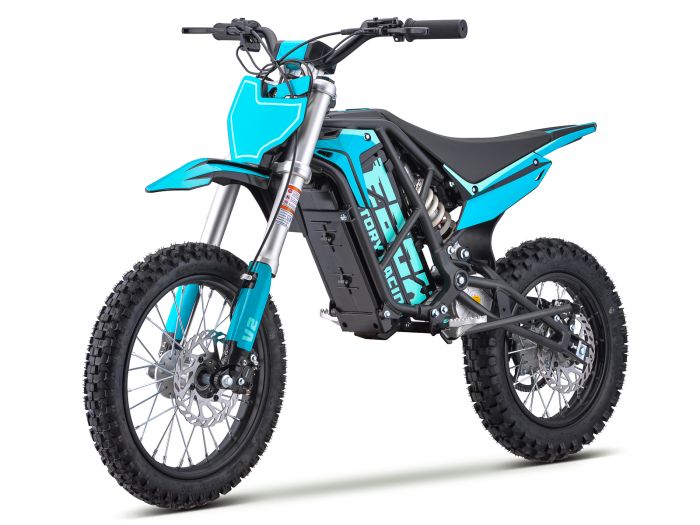

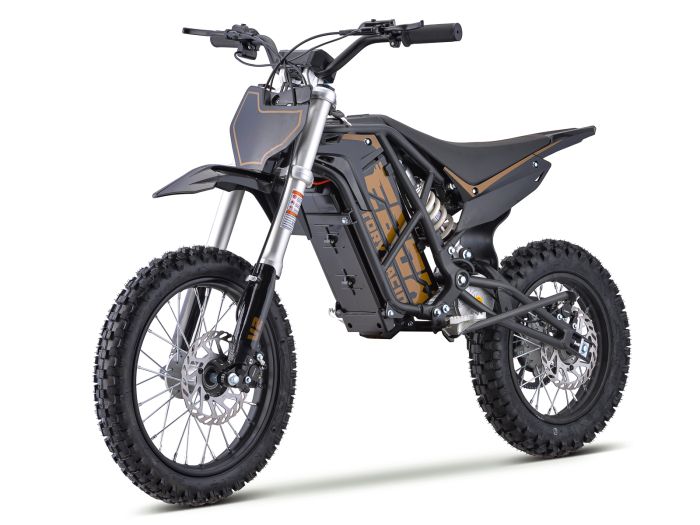

EBOX 2.0 V2 ELECTRIC DIRT BIKE 60V
EBOX 2.0 V2 ELECTRIC DIRT BIKE 60V
- 6 MONTHS WARRANTY INCLUDED
- DELIVERED, BUILT & PDI'D
- ⌛ LOW STOCK, SELLING FAST
60V
33 MPH
1-2 HRS
Description
Description
EBOX - Electric Bike Off-road Motocross
Sometimes we just want to get loose, run for the hills and escape the bullshit, preferably at high-speed. For that we designed EBOX2.
Not content with the performance from the over-boosted 1.6 kw EBOX1, we decided to tweak the chassis and install an over-boosted 2 kw rated powertrain that peaks at over 3 kw! (As tested and reviewed by Suronster on YouTube). These modifications catapult the EBOX2 into electric pit bike class leading territory.
Featuring extended upside-down forks and 14/12 wheels, the chassis is now suitable for slightly larger (or crazier) riders. **We recommend considering some BMX style bars or pro taper minibike bars if you are a taller rider.
Created by our engineers and designers to be lightweight, powerful and outperform any other bike in its class on the market.
EBOX2 features a 2 KW lithium battery / brushless motor combination that packs an astonishing punch. EBOX2 can be controlled to perfection, dialled down for entry level riding, and turned up when you are ready to clear those doubles or pop the front wheel up for some combo practise.
Need more?. As proven by Surronster, this bike can be tuned to release even more power from the stock powertrain with a simple controller upgrade. (please note this upgrade is not currently warranty approved).
SPECS
| Frame type | Double Cradle |
|---|---|
| Front wheel size | 14" |
| Rear wheel size | 12" |
| Front brake | Hydraulic Disc |
| Front disc | 180mm |
| Rear brake | Hydraulic Disc |
| Rear disc | 180mm |
| Front tyre | 14" x 2.27" |
| Rear tyre | 12" x 3" |
| Chain | 219H |
| Gearing | Front 10T, Rear 70T |
| Max load | 85kg |
| Fork type | USD |
| Shock type | Mono shock |
| Handlebar | Alloy |
| Motor voltage | 60V |
| Peak power | 2.0KW (2.6hp) |
| Max RPM | 4,400 |
| Battery | 60V 18.2Ah Lithium |
| Controller output | 42A |
| Charger | AC 110-240V, Output: 54.6V, 2A |
Tech
| Charge time | 5-6 hours |
|---|---|
| Range per charge | 21 - 24 Miles |
| Top speed | 32 MPH |

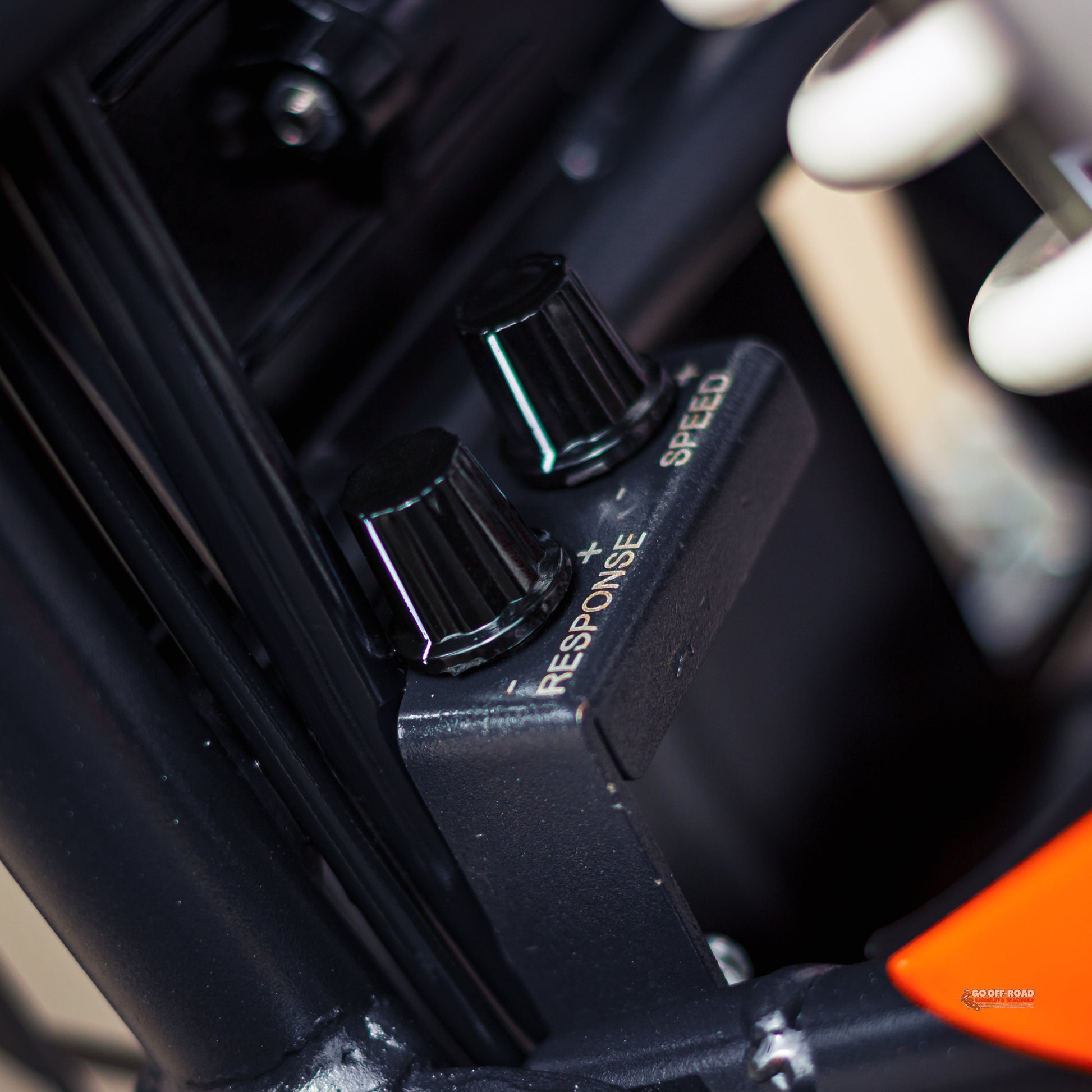

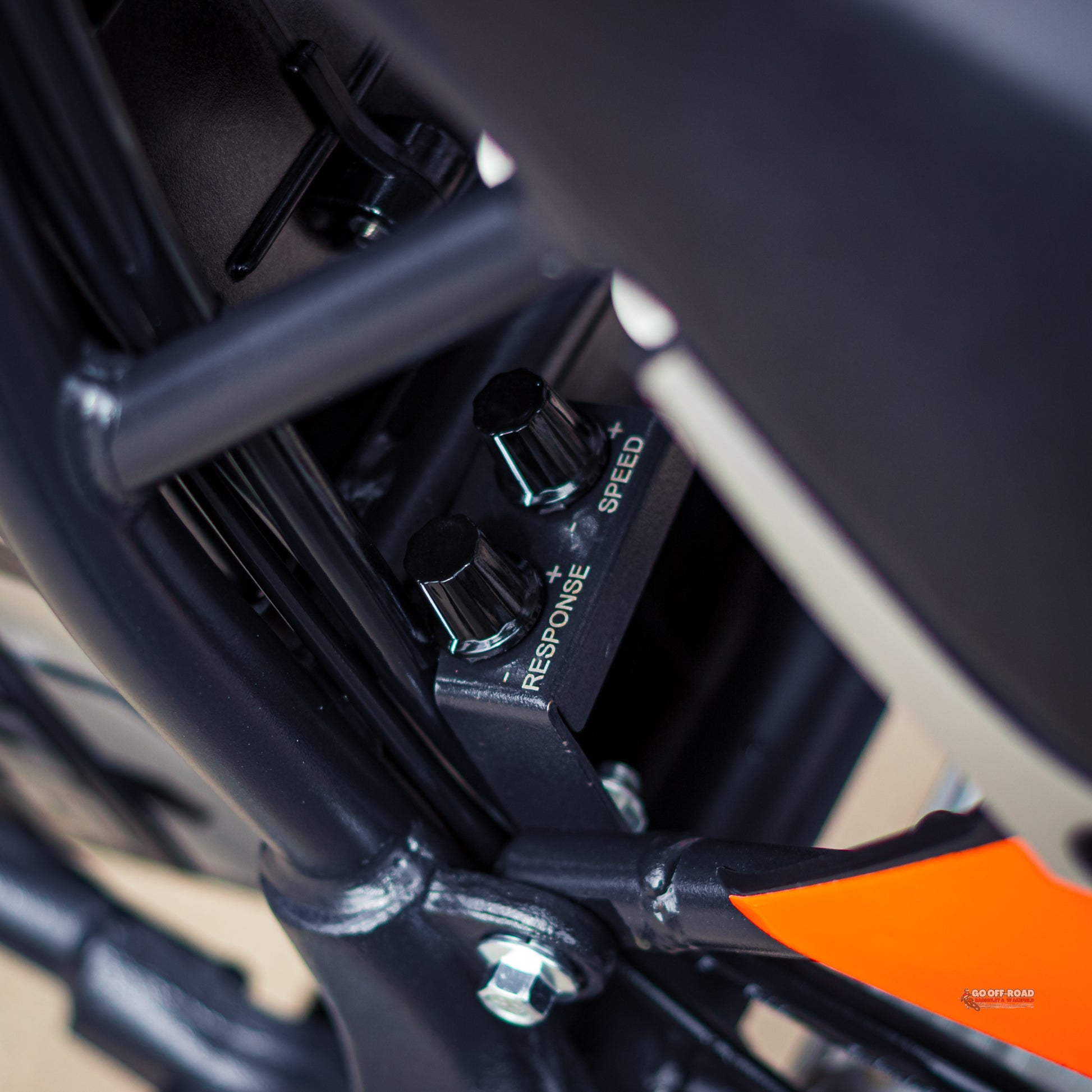

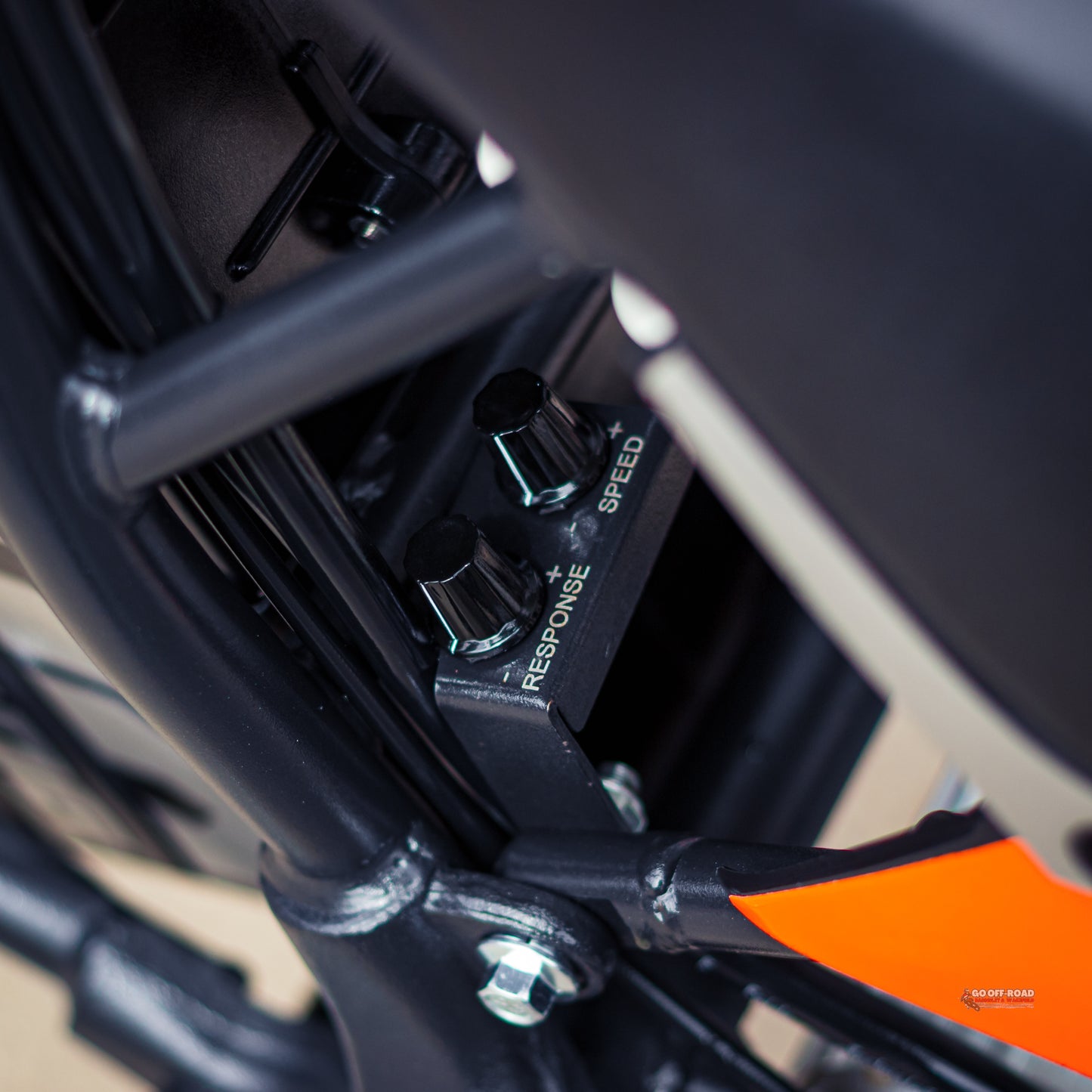

| External adjustability | Top speed, Acceleration |
| Frame construction | High strength steel, powder coated, removable subframe, swing arm mounted motor, non linkage suspension |
| Wheelbase | 945mm |
| Ground clearance | 275mm |
| Seat height | 66cm |
| Weight | 42.5kg |
Shipping
Shipping
This is an item we stock in Stores and warehouses and will be available to collect the same day. If delivery is selected the cut off for same day dispatch is 11AM. Delivery options are available from 24 hours to 5 days.
THE BIKE YOU LOVE - BUT BETTER!
-

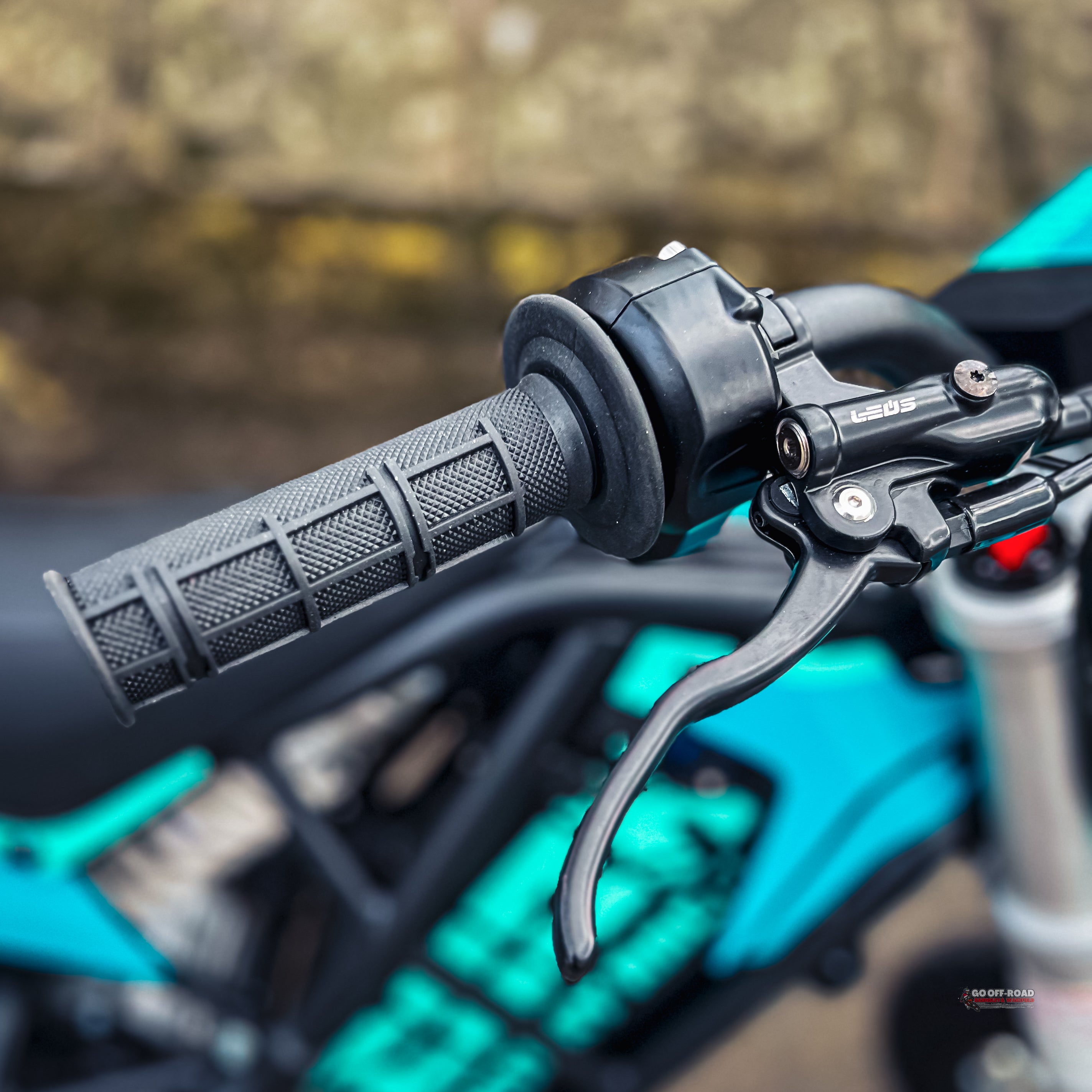

NEW THROTTLE FOR 2025

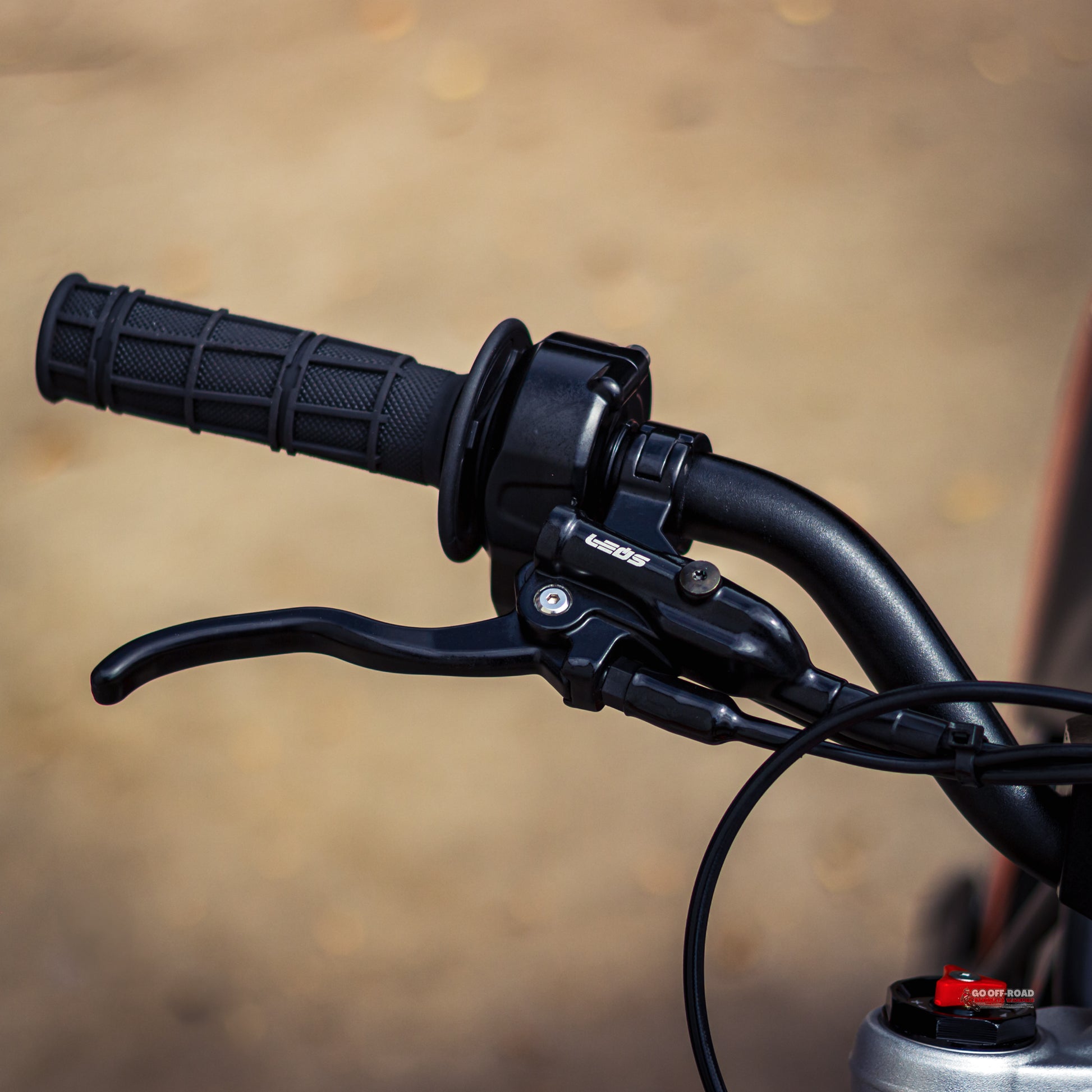

New models of the EBOX 2.0 V2 will now feature an all new throttle & grip design. This has improved throttle curve for better acceleration and performance. Available for purchase for older models.
-
New & Improved FEATURES
The EBOX V2 now has revised geometry, longer forks & a slacker headtube angle. Stiffened fork springs and an awesome progressive rear mono shock that will cater for most rider weights. For the drive-train they've have simplified the controller to make it more reliable and introduced improved hall sensors in the motor to cope with the ‘heavier-than-expected’ loads riders are putting on our bikes.
-

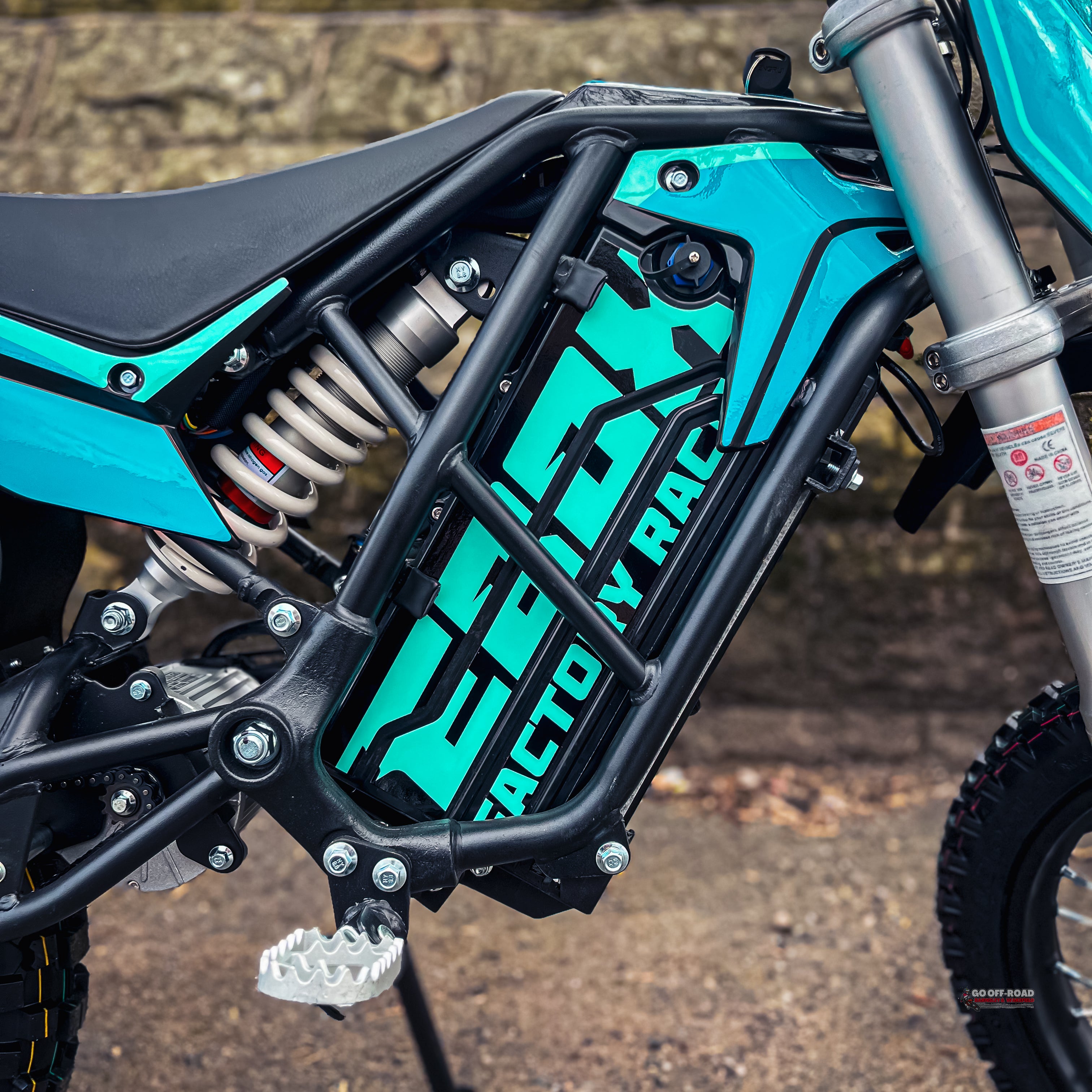

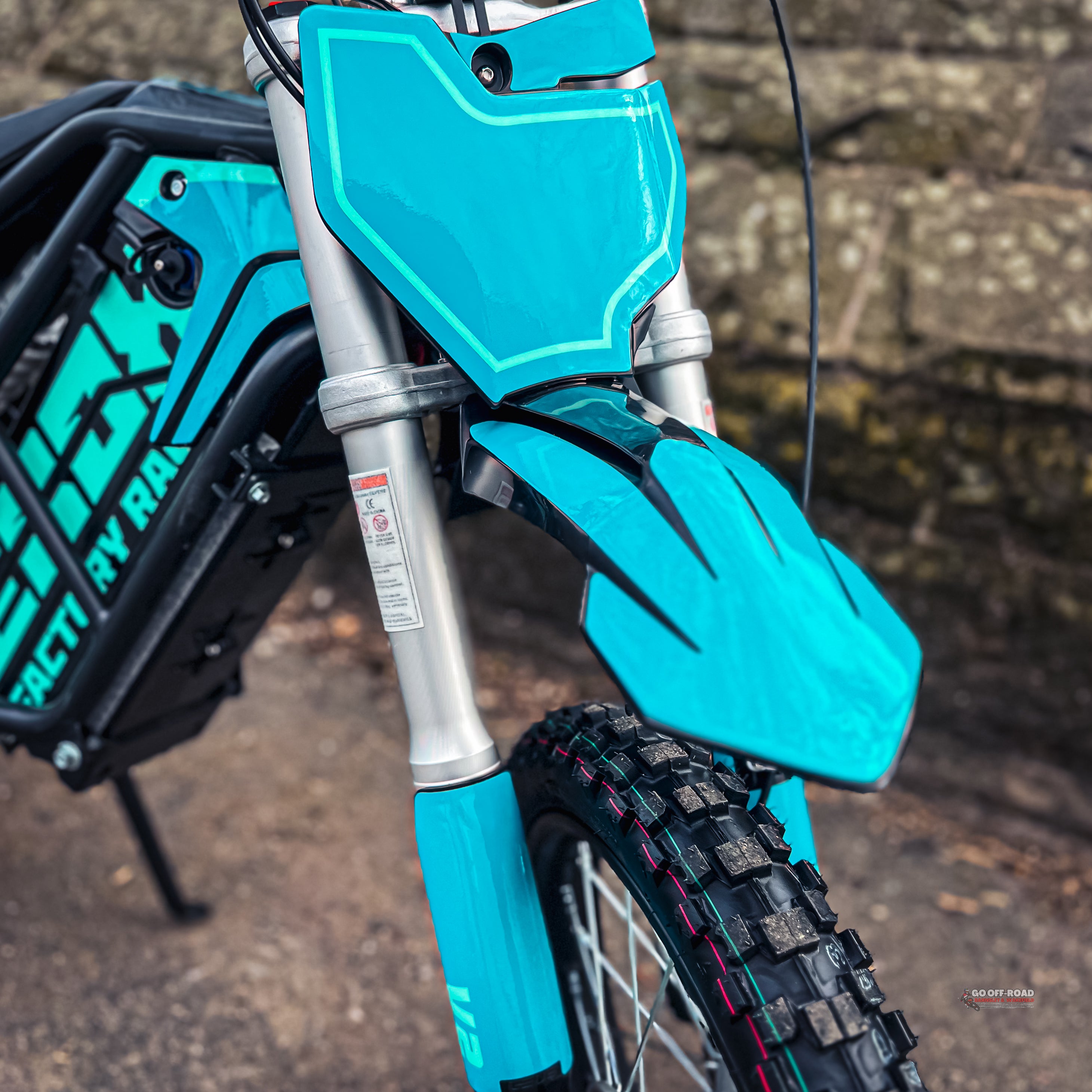

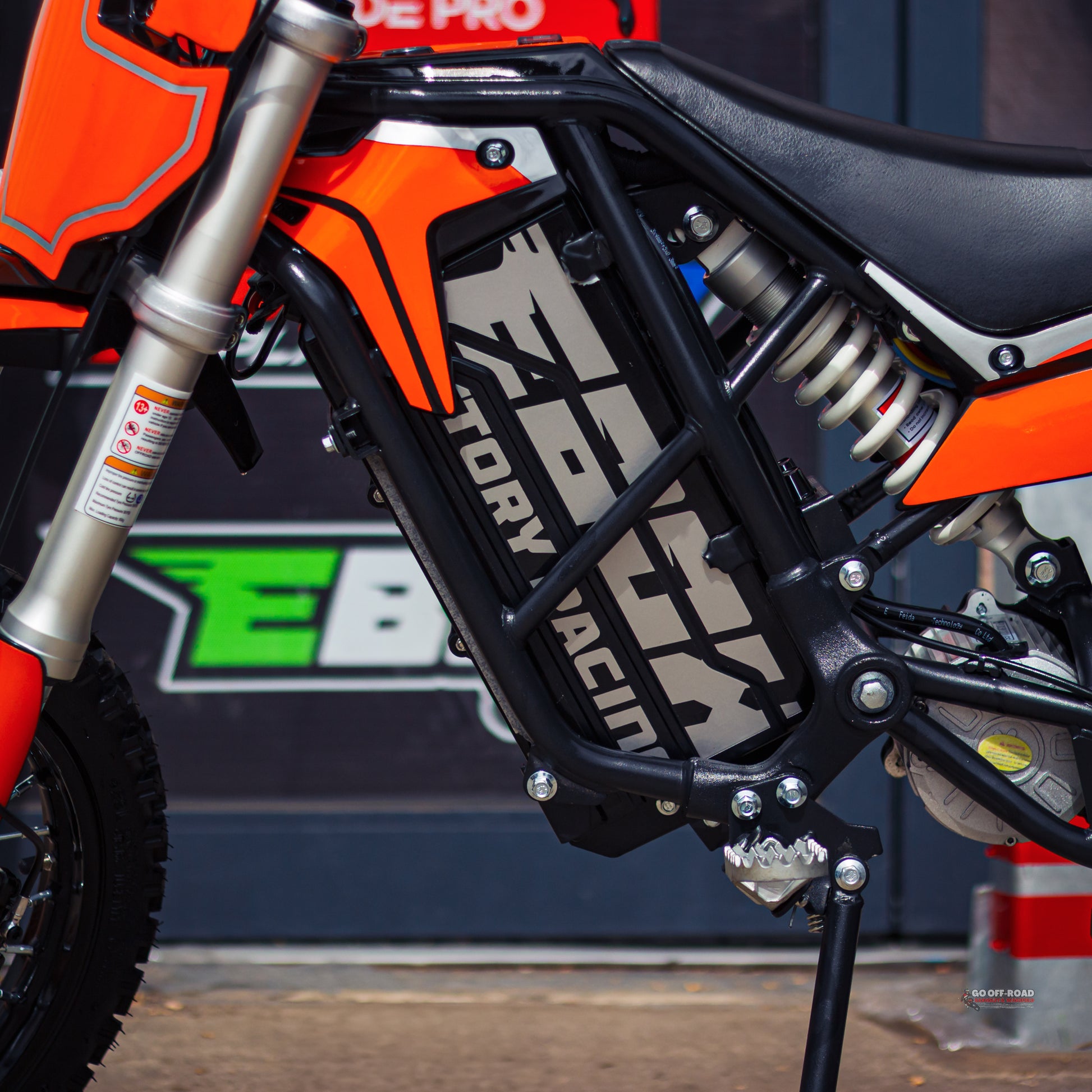

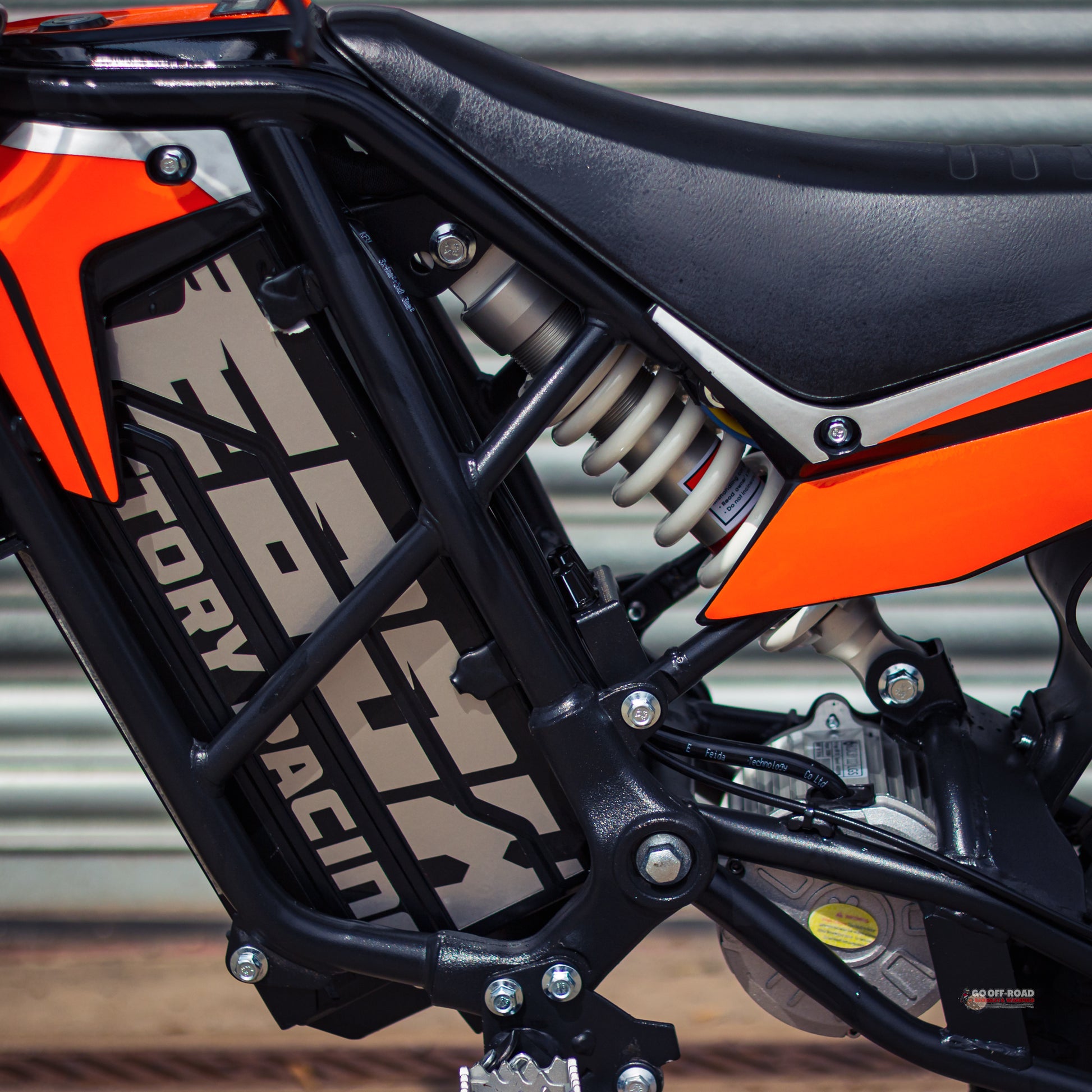

mono shock & usd forks
Suspension can make or break a bike. That is why Ebox spent years designing the cradle frame to house the robust suspension components, delivering a smoother ride over its competition. Well we say competition, but not much beats it!
