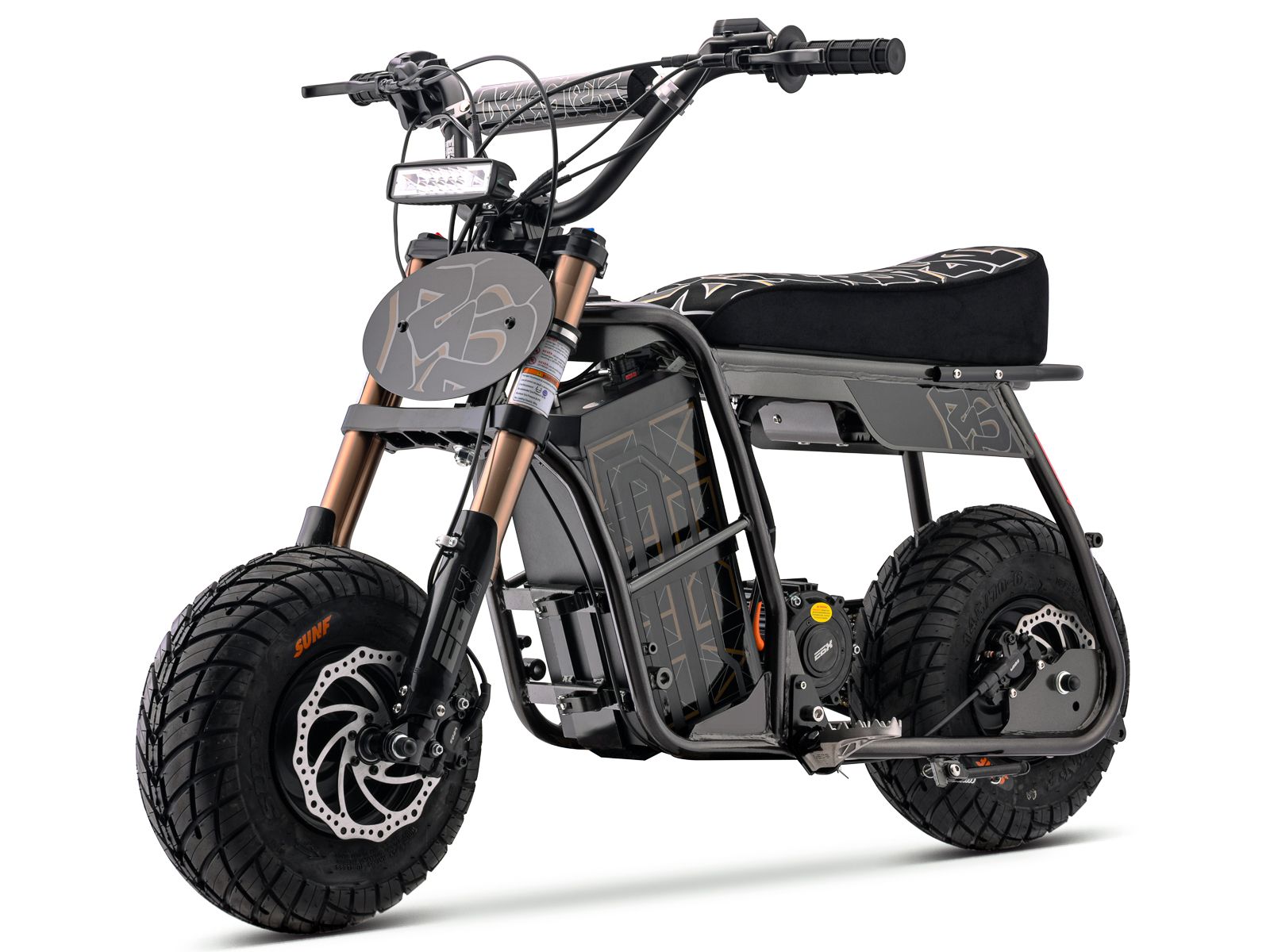

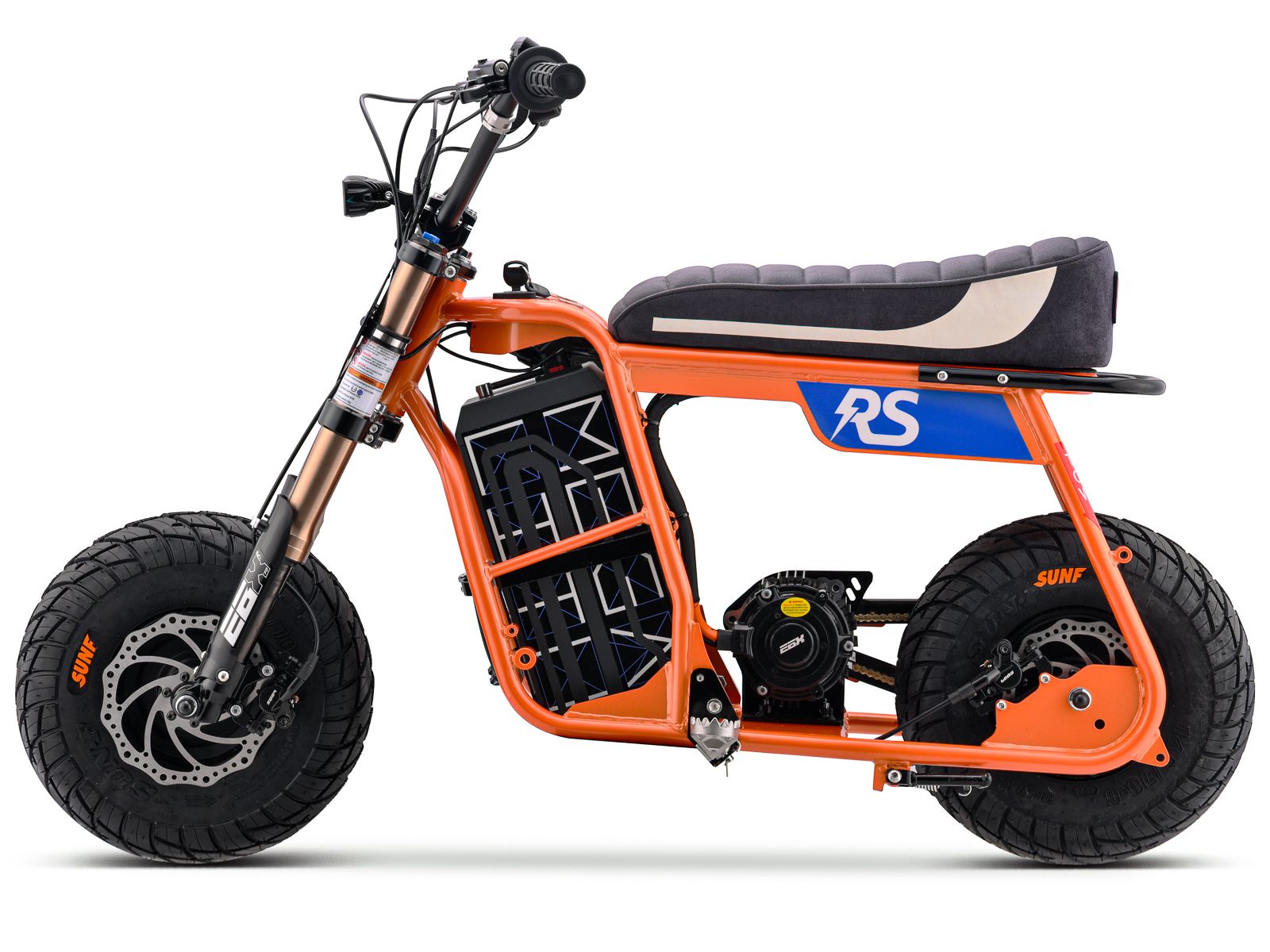

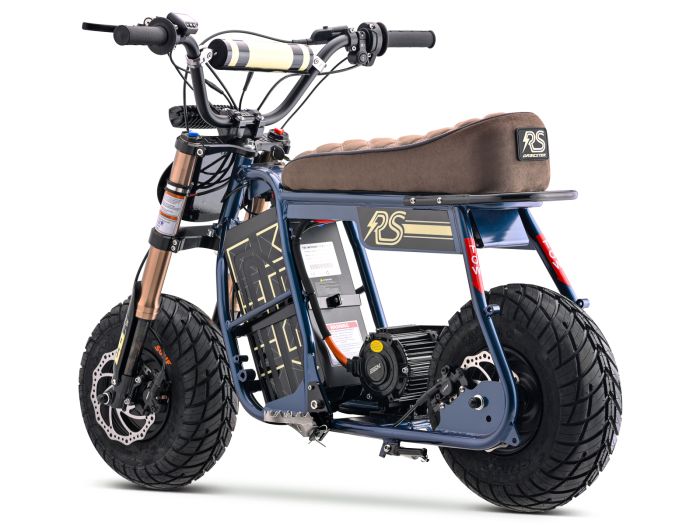

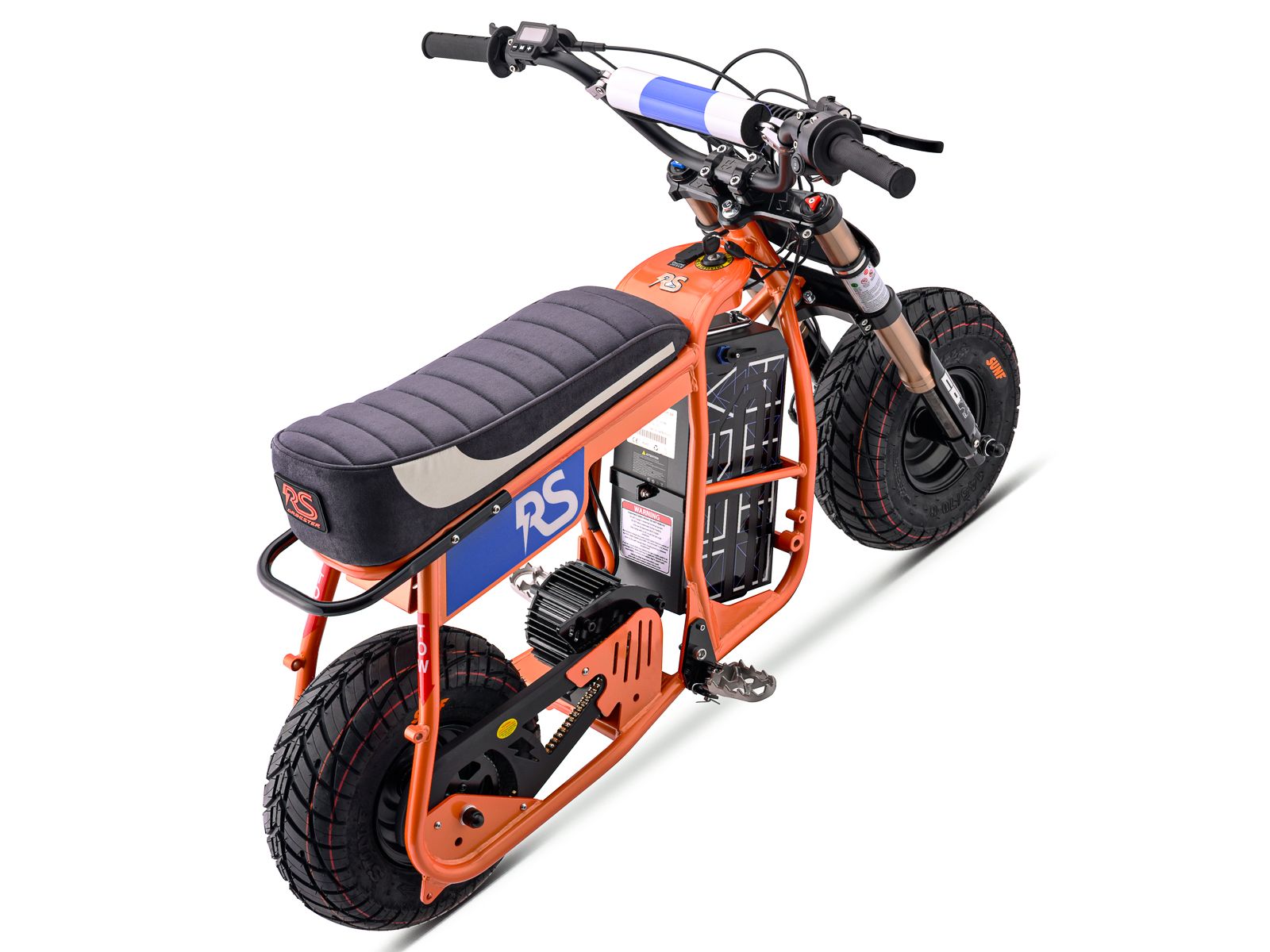

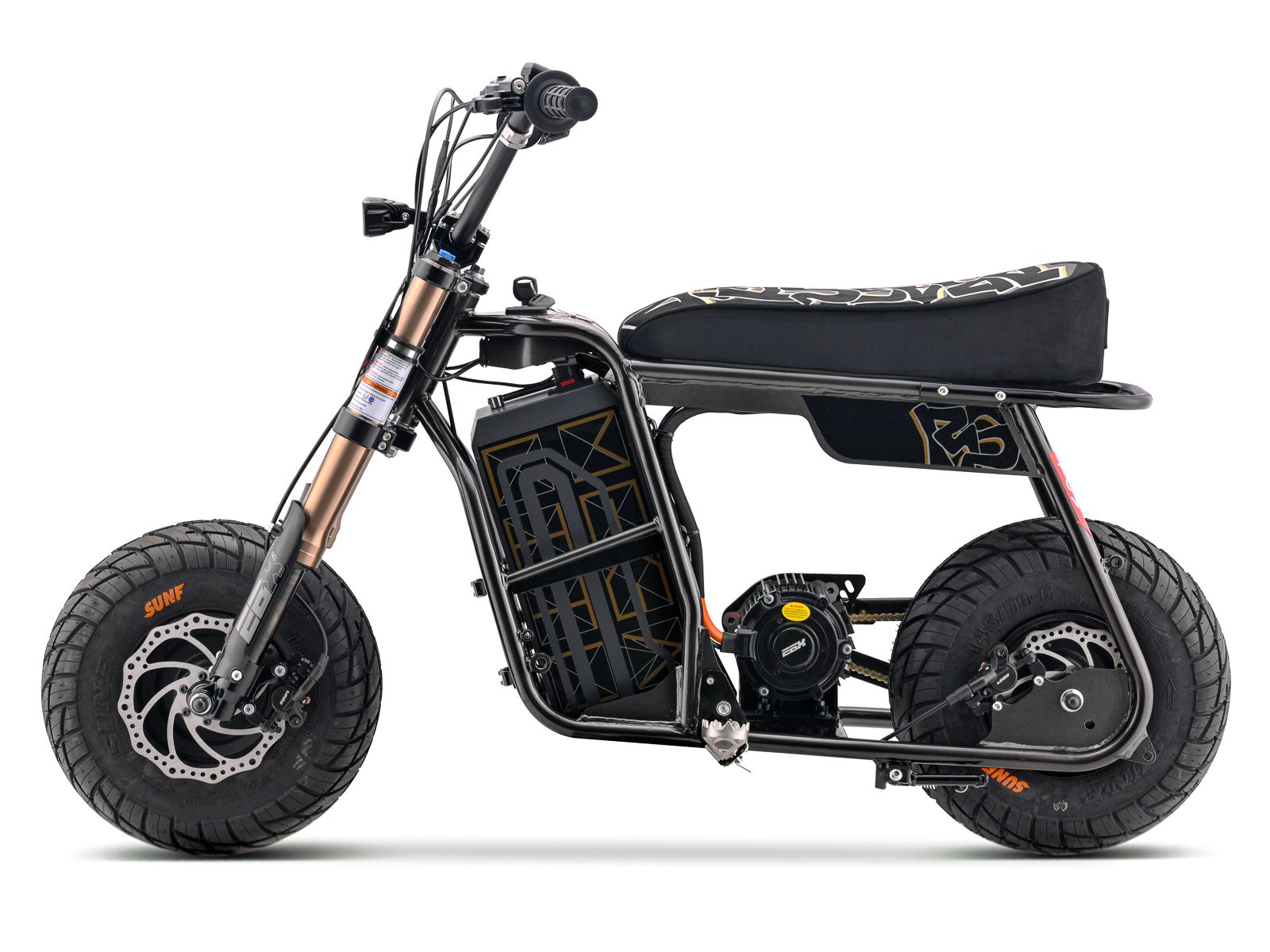

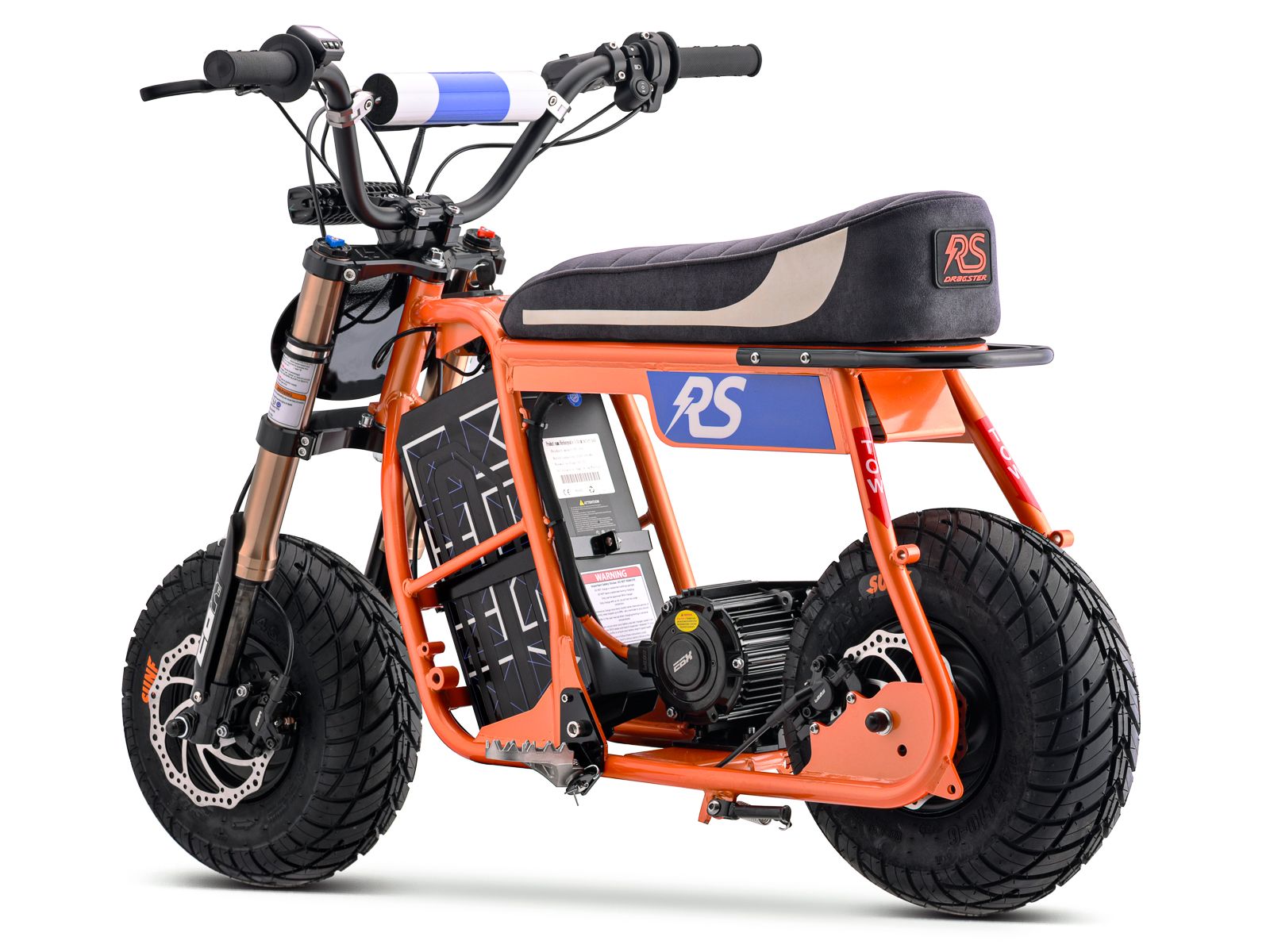

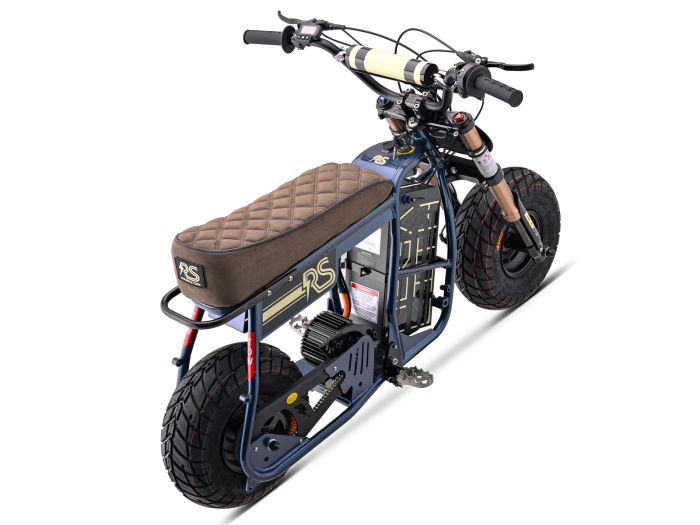

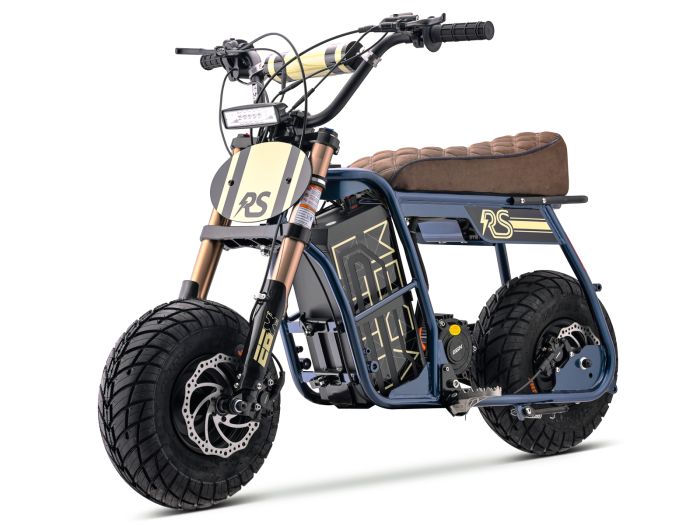

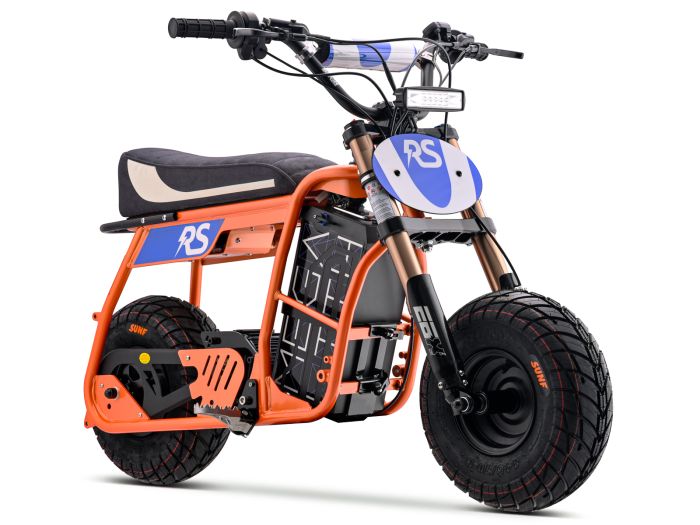

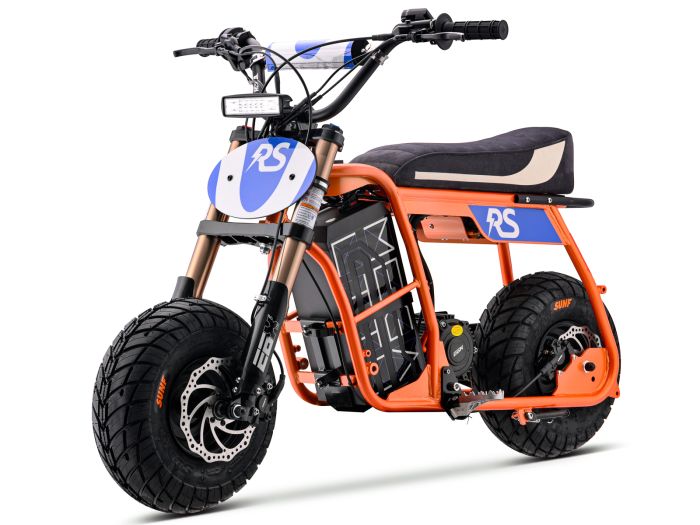

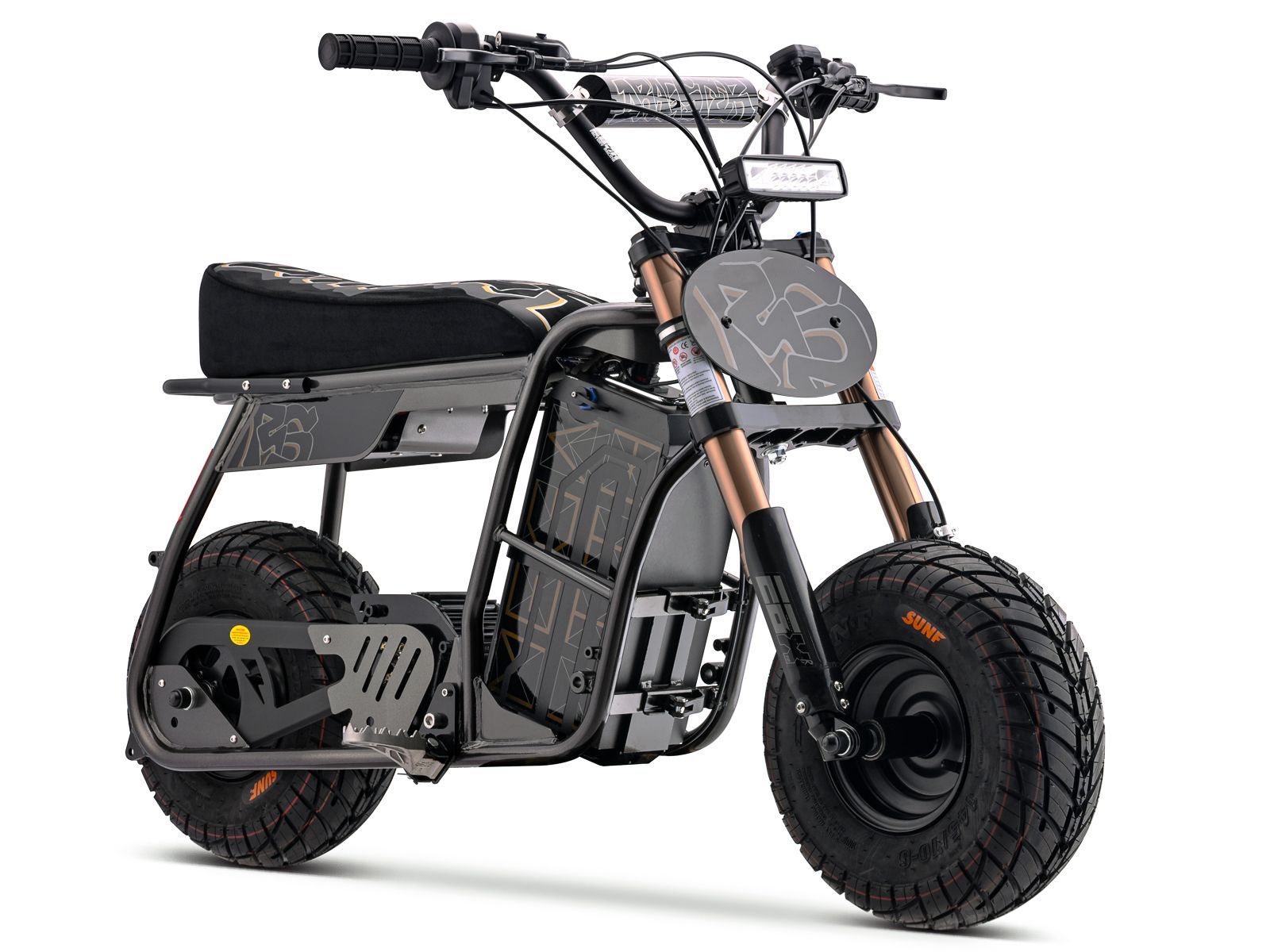

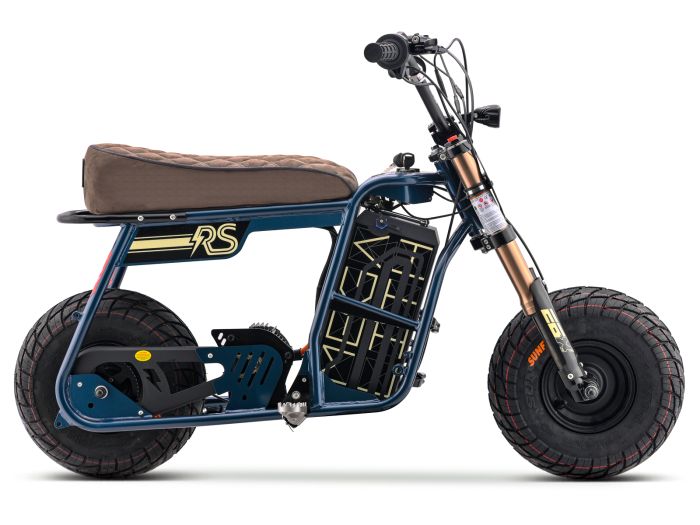

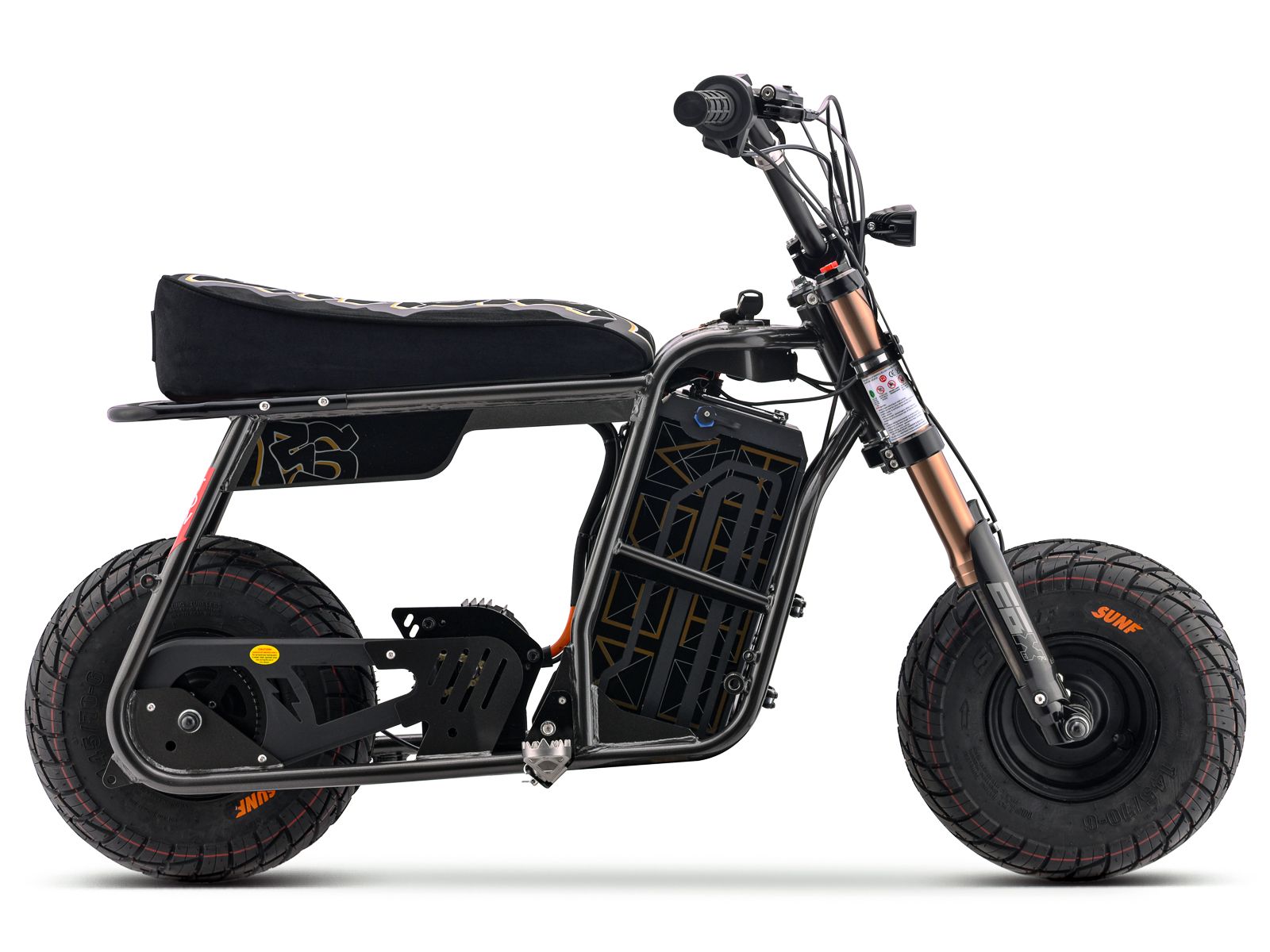

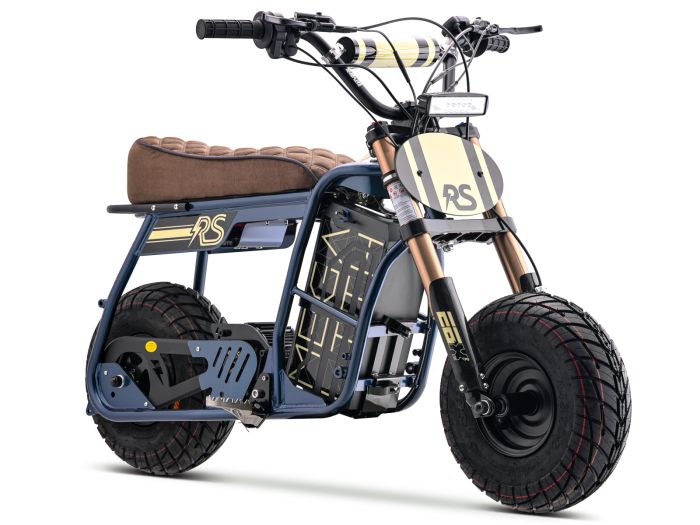

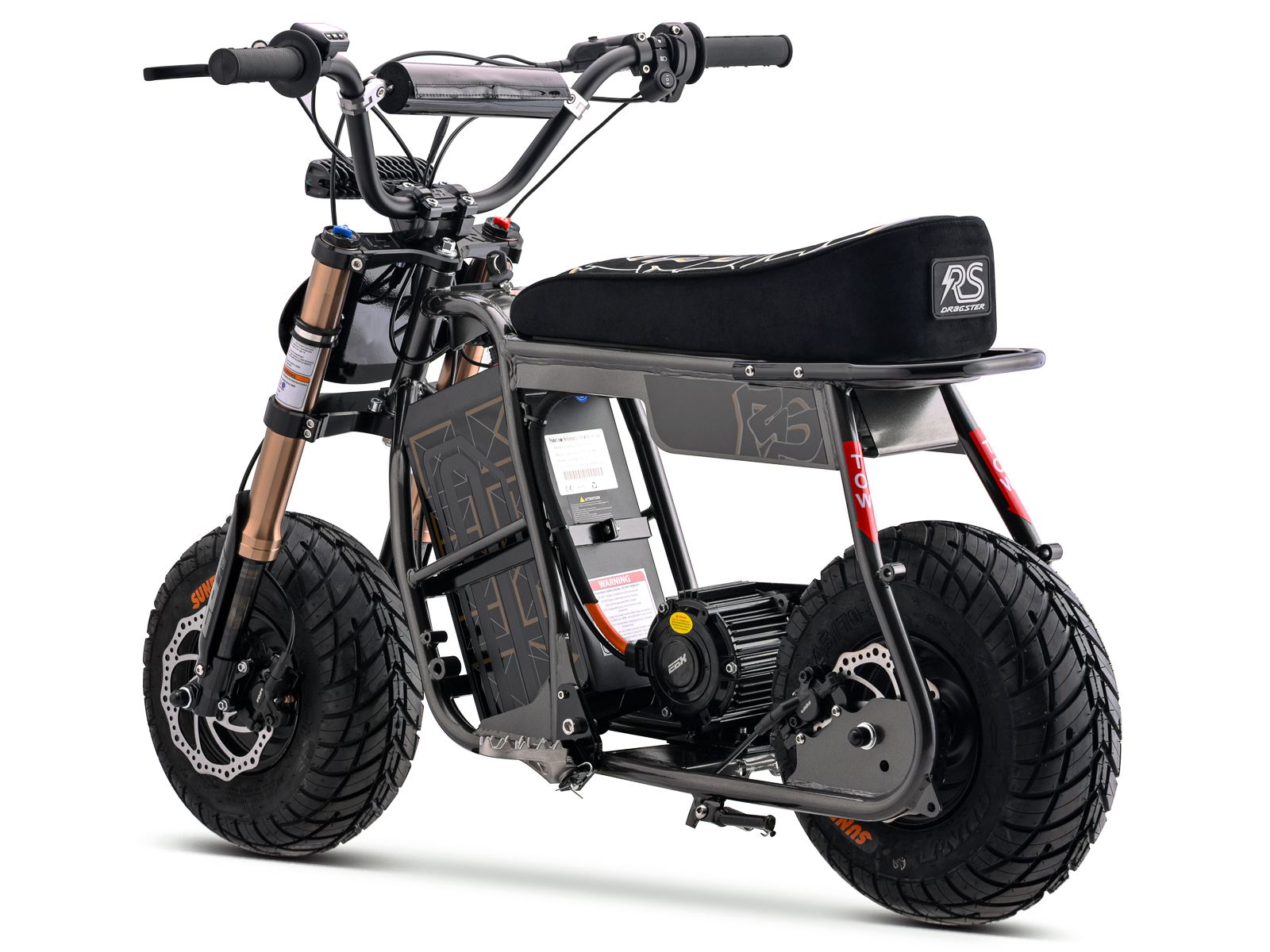

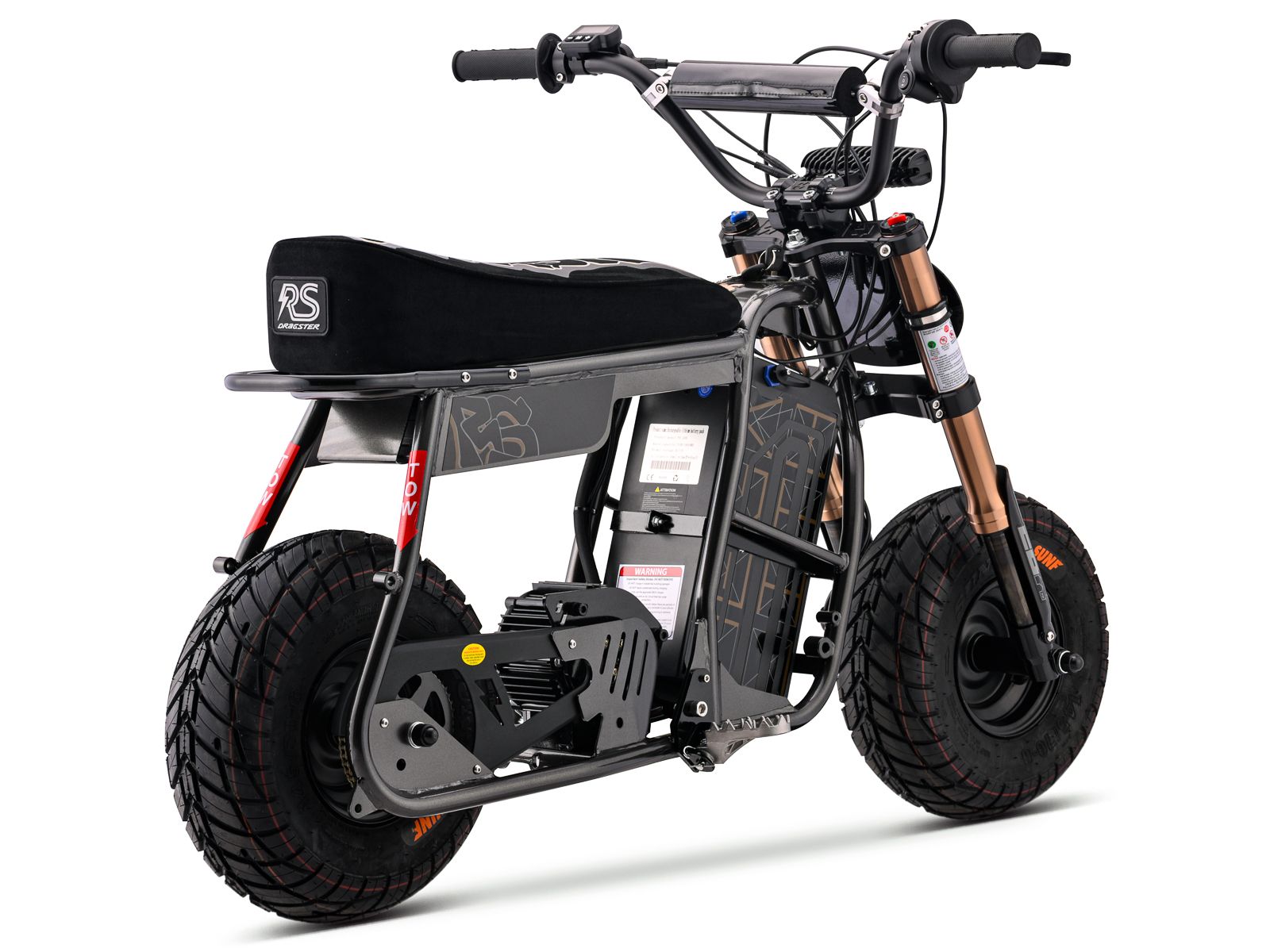

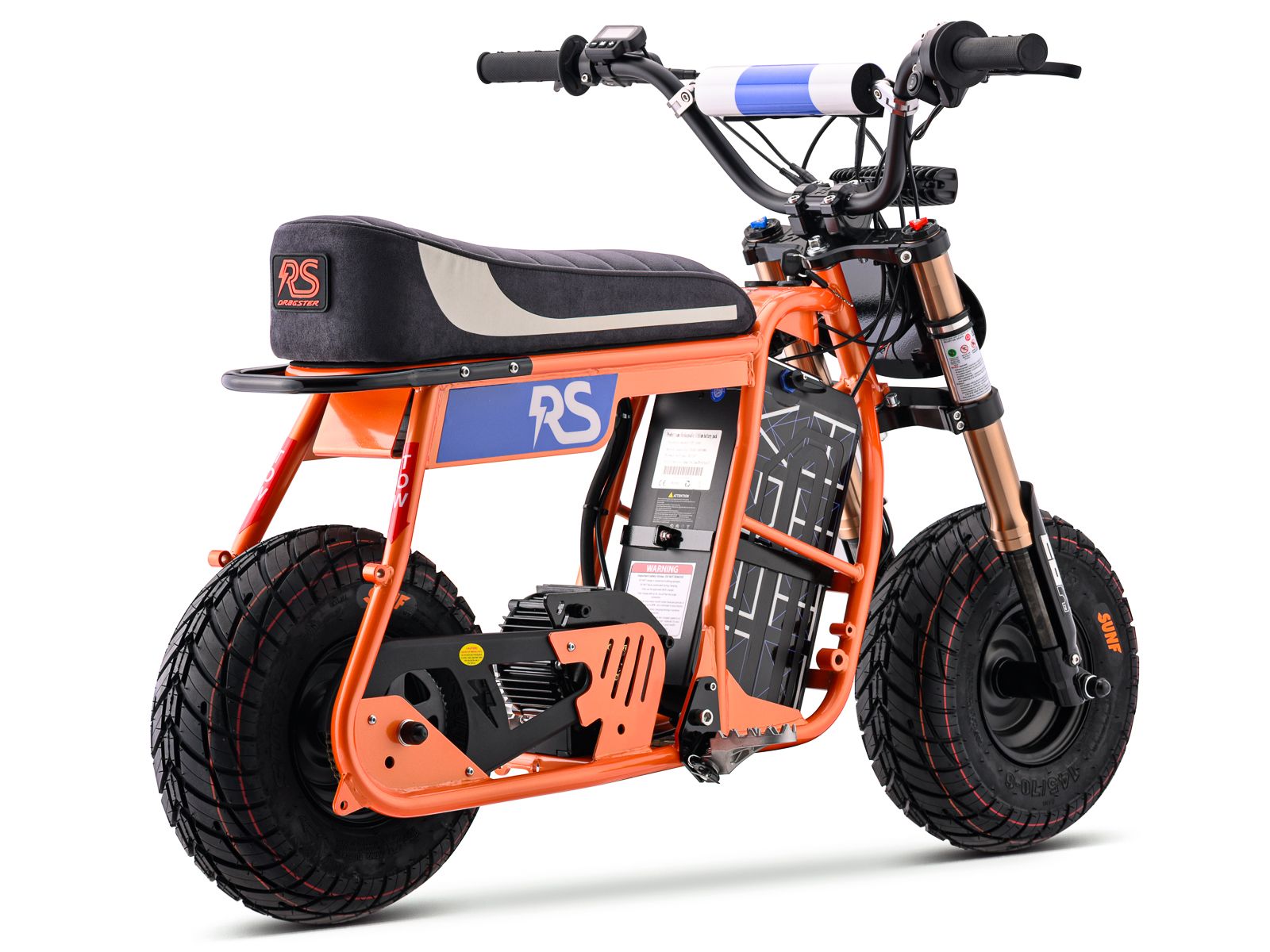

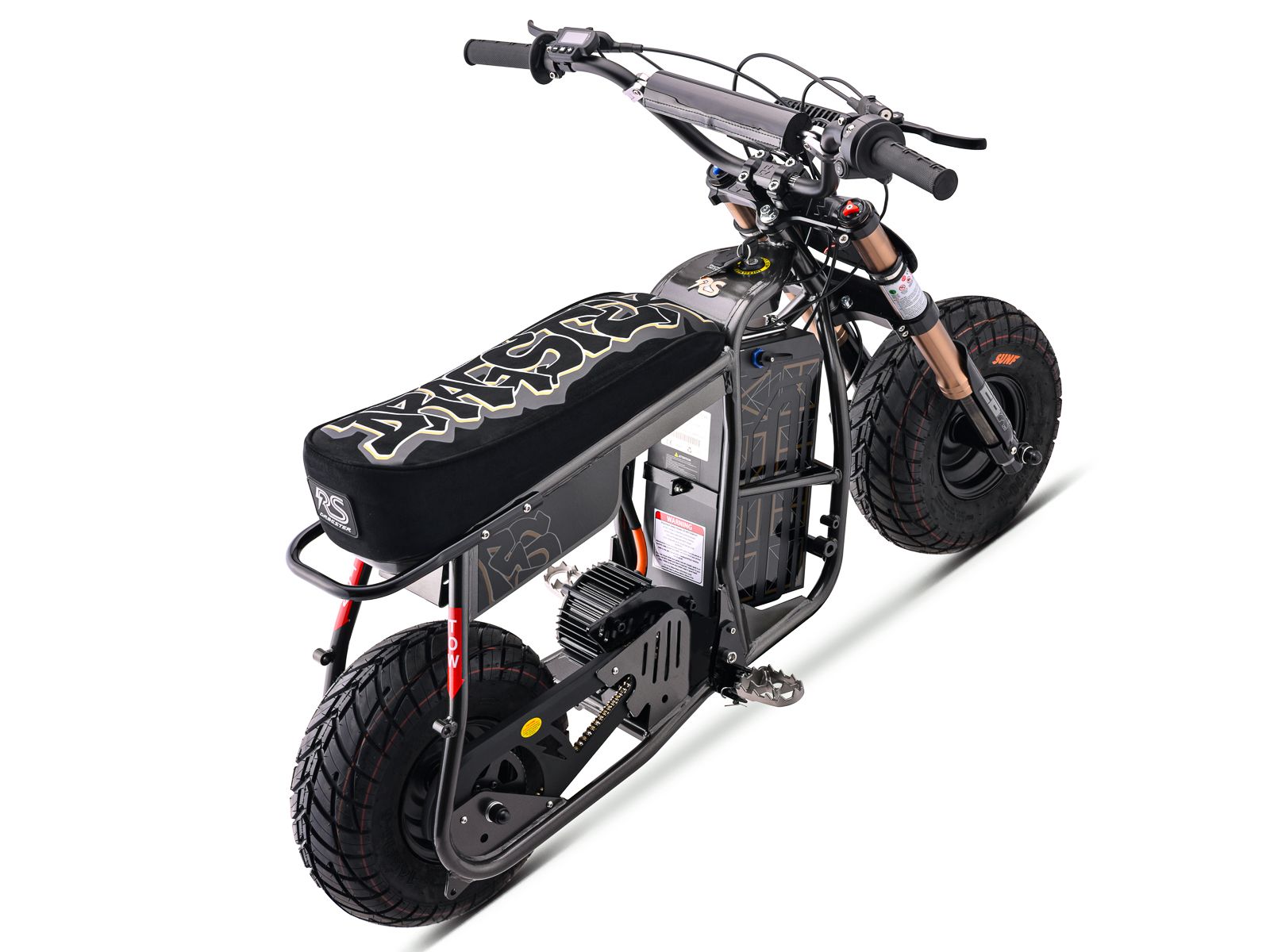

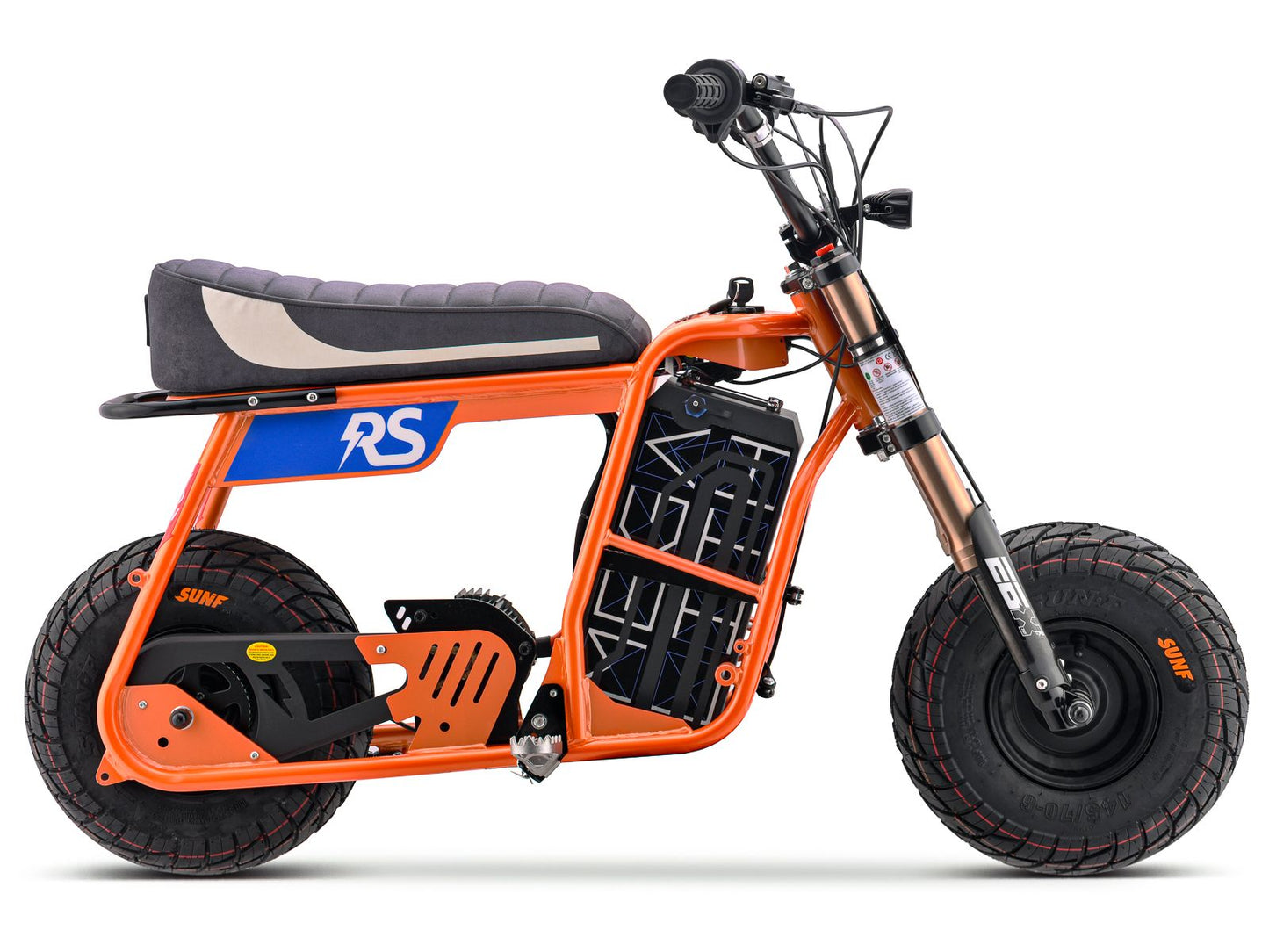

THE EBX Dragster is FINALLY HERE! In a world full of limp, slow, plastic failures, comes a truly HARDCORE electric minibike with more steeze than should be legal in such a miniature package. Featuring insane top speeds of up to 55 mph, the EBX is now delivered with a SERIOUS safety warning: Do Not Ride if You are Easily Frightened. Choose from 3 ballistic powertrains and multiple mind-blowing colourways. Fully re-engineered and reconsidered with a temperature protected PMSM encoder motor, 80 Amp Fardriver controller, bigger batteries, bigger brakes and 3-mode smart TFT colour display. Other exciting features are available such as bronze inverted suspension forks, an integrated LED headlight and luxury suede printed seats. The EBX range firmly cements the Dragster as the “Ultimate Wheelie Weapon” and King of the streets.
SPECS
| Frame type | Full duplex |
|---|---|
| Fork | 100mm Travel Inverted forks with bronze anodised fork legsand black hardened stanchions |
| Fork Clamps | Billet 6061 T6 CNC machined triple clamps |
| Bar Risers | 6061 T6 CNC machined 35mm rise Ø22.2 |
| Front wheel size | 6" |
| Rear wheel size | 6" |
| Front brake | Hyraulic Disc (Right lever) e-moto brakes |
| Front disc | Wavey rotor 180mm, 6 bolt 48mm BCD |
| Rear brake | Hyraulic Disc (Left lever) e-moto brakes |
| Rear disc | Wavey rotor 160mm, 6 bolt 48mm BCD |
| Front tyre | 145/70-6 SUNF fast SM tyres |
| Rear tyre | 145/70-6 SUNF fast SM tyres |
| Chain | Uprated performance gold 219H 108L |
| Gearing | Front 10T, Rear 55T |
| Max load | 100kg |
| Handlebar | 6061 T6 29.5" x 7", with 3 piece crossbar and bar pad |
| Seat | Luxurious suede RS wedge seat |
| Motor | 72V EBX PMSM motor with temp feedback and encoder |
| Rated Power | 5.4KW |
| Peak power | 6.3KW (8.5hp) |
| Max RPM | 9,000 |
| Battery | New 72v 25 Ah battery with BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch |
| Controller | 80 Amp fardriver controller |
| Throttle | SURRON style full twist |
| Display | TFT odometer display with 3 speed modes and fault code analysis software |
| Connectors | Automotive connectors with sealed wiring harness |
| Charger | AC 100-240V, Output: 84V, 6A |
| Light | LED headlight and switch |
TECH
| Charge time | 4-5 hours |
|---|---|
| Range | 28-31 miles (45-50Km) |
| Top speed | 56mph (88Km/h) |
| External adjustability | 3 riding modes |
| Frame construction | High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible. |
| Waterproof | IP54 |
| Other | USB A + C charging port |
| Wheelbase | 910mm |
| Ground clearance | 120mm |
| Seat height | 610mm |
| Bar height | 825mm |
| Bike Weight | 49kg (108lbs) |
| Warranty | EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information |
Shipping
Shipping
Due to the nature of our assembled bikes, shipping is conducted either via our in-house driver or 3rd party service, depending on the destination and the nature of the product. This ensures your bike arrives in optimal condition and ready to ride.
We will aim to ship your bike within 1 week if the item is in stock in our store.
We will contact you once your bike is ready to be delivered to ensure you are available to receive your new bike.
a bike like no other
-
POWER AT YOUR FINGERTIPS
The Ebox Dragster gives you control when you need it most. View your battery level, adjust your Dragsters top speed and acceleration levels and even charge your phone all on the fly!
-
IMPROVED THROTTLE
The newest Ebox Dragster V3 models feature an all new Sur Ron style throttle for a better throttle curve and smoother response.
An ideal upgrade for a wheelie machine like the Dragster!
-
BORN TO WHEELIE!
The low riding style of the Ebox Dragster means it was born to wheelie. Add the EBOX Wheelie Bar to it and you've got a bike that's as comfortable on one wheel as it is on two.
The Ebox Dragster can also be upgraded with coloured stunt pegs and if you're looking for more power then the Electro & Co. ETM Kit & Megalith 72V Battery are both compatible - pushing your acceleration and speed to the next level!
